Franklin Electric FNG-23VM - 400 GPM (3") End Suction Water Pump w/ Electric Start B&S Vanguard Engine

Model:

90261223

Write A Review
$12,706.40
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Franklin Electric FNG-23VM - 400 GPM (3
Franklin Electric FNG-23VM - 400 GPM (3") End Suction Water Pump w/ Electric Start B&S Vanguard Engine
Model: 90261223
$12,706.40
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3 Inch

Style

Dewatering

GPM

400 Gallons

Engine

Briggs & Stratton Vanguard

    Please Note - Fuel Tank and Battery Not Included
  • FPS FNG-23V - End Suction Gas Engine Driven Centrifugal Pump
  • For mining, irrigation, construction and other heavy-duty applications
  • Water Truck, commercial, construction, municipal and general services
  • Electric Start (Battery and Cables Not Included)
  • Makes starting this pump an easy task
  • 627cc Briggs & Stratton Vanguard V-Twin Engine
  • Cast iron cylinder sleeves for extended life
  • Oil pressure switch installed for low oil warning light (warning light not included)
  • Heavy-Duty Cast Iron Pump Casing & Volute
  • Provides added protection and extends the life of the pump
  • Cast Iron Balanced Impeller
  • Designed for maximum efficiency
  • Close-Coupled Design For Maximum Pressure (120 PSI Max)
  • Pump impeller threaded directly onto the engine shaft
  • Self-Lubricating, Type 21, 1-1/4" Mechanical Seal
  • Plus replaceable bronze wear ring for easier maintenance
  • 3" NPT Suction & 2-1/2" NPT Discharge
  • Allows for maximum performance
  • Base-Mounted Design
  • Makes this pump to transport and set-up
  • 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

90261223
specs product image PID-153914
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
400 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
2-1/2 Inch
Self Priming
No
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Cast Iron
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
125

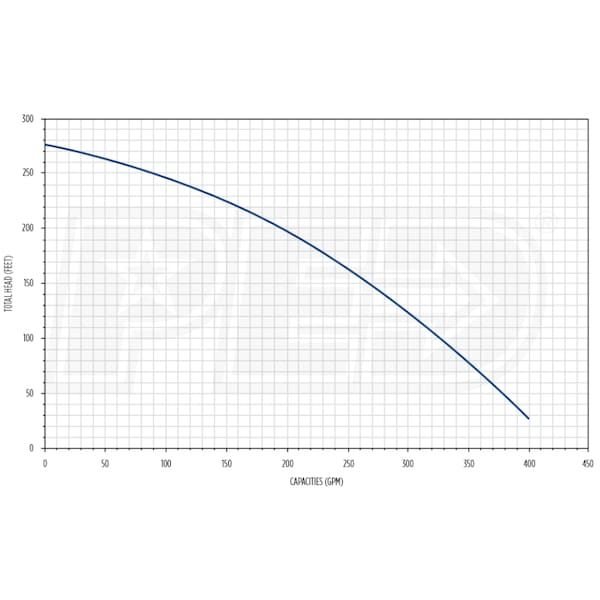

Total Head Lift
275 Feet
Submersible
No
Engine
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Engine Cycles
4-Cycle
CC
627 cc
Overview
Product Category
Water Pump
Weight
206 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
43.83 Inches
Product Width
22.21 Inches
Product Height
22.18 Inches
UPC
0029753050025
