Features
Inlet Size
N/A
Style
Utility
GPM
15.8 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Thermoplastic Design Will Not Rust Or Corrode
- Impact resistant for rugged use
- Heavy Duty 1/6 HP Electric Motor
- Pumps up to 950 gallons per hour
- Thermally Protected Motor
- Overload protection prevents overheating
- Bottom Suction Design
- Filters and removes water down to 1/8" of surface
- Easy-Access Stainles Steel Ring Handle
- Made for complete portability
- Top Discharge Design
- Provides balanced installation
- 3/4" Discharge Adapter Included
- Connects to any standard garden hose
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TSC160
Motor
Voltage
120 Volt
Power Cord Length
8 Feet
Pump
Gallons Per Minute
15.8 Gallons
Outlet Diameter
3/4 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Suction Head
15 Feet
Total Head Lift
25 Feet

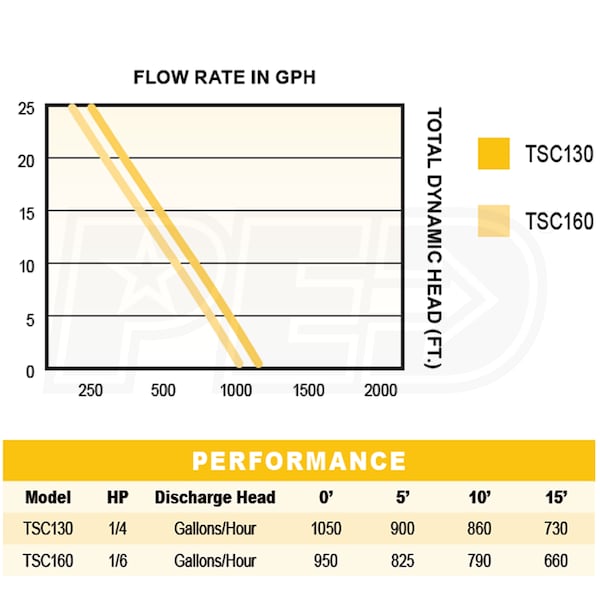

GPH @ 0 feet
950
GPH @ 5 feet
825
GPH @ 10 feet
790
GPH @ 15 feet
660
Submersible
Yes
Engine
Continuous Operation
No
Low Oil Shutdown
No
Oil-Cooled
Yes
Horsepower
0.16 HP
Overview
Weight
6.5 Pounds
Consumer Warranty
1 Year
Product Length
9.80 Inches
Product Width
9.80 Inches
Product Height
11.00 Inches
UPC
040066206107
Accessories
Float Switch
No
Hose
Sold Separately
Reviews
(4)
Wayne TSC160 Reviews & Ratings
How-To Articles
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

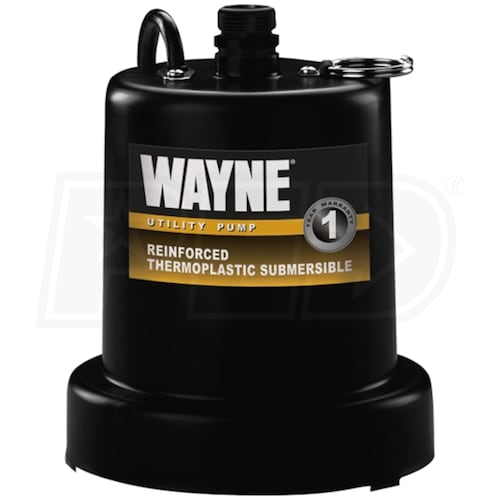

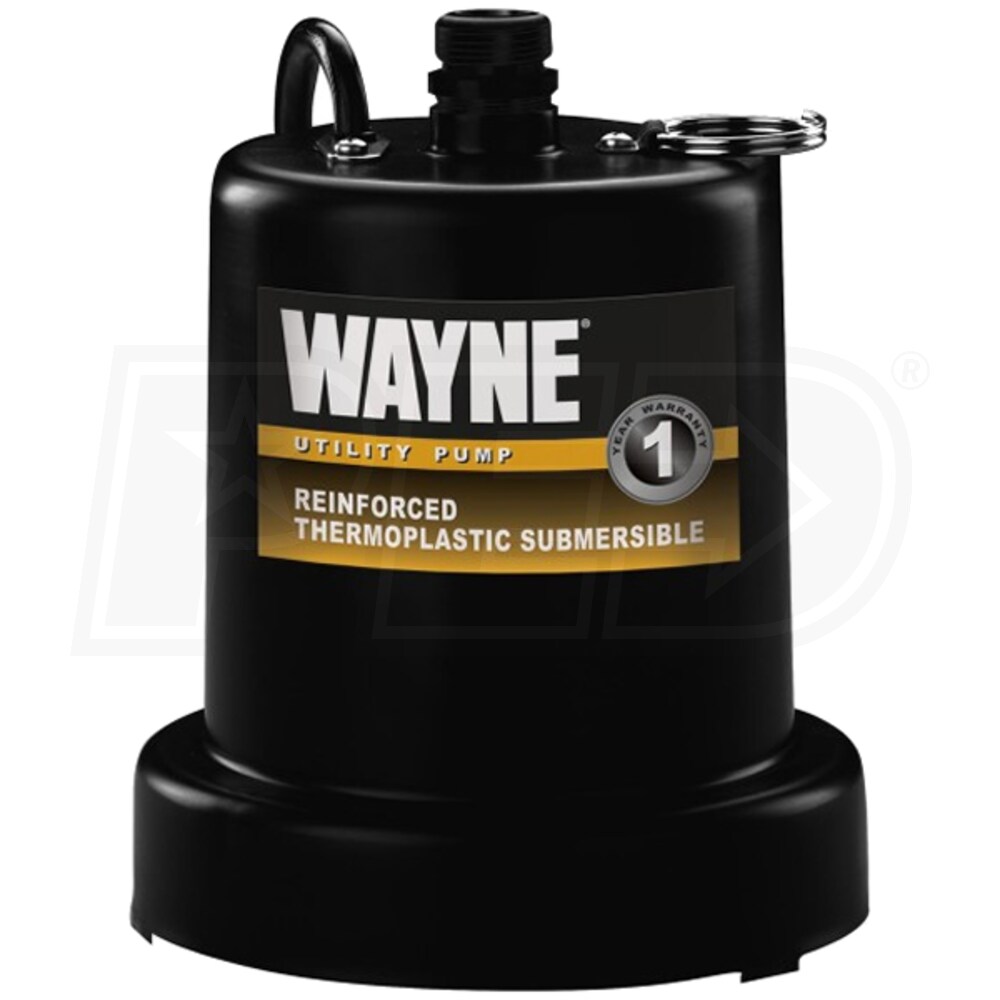

Wayne TSC160 - 15.8 GPM (3/4") Heavy-Duty Submersible Utility Pump
