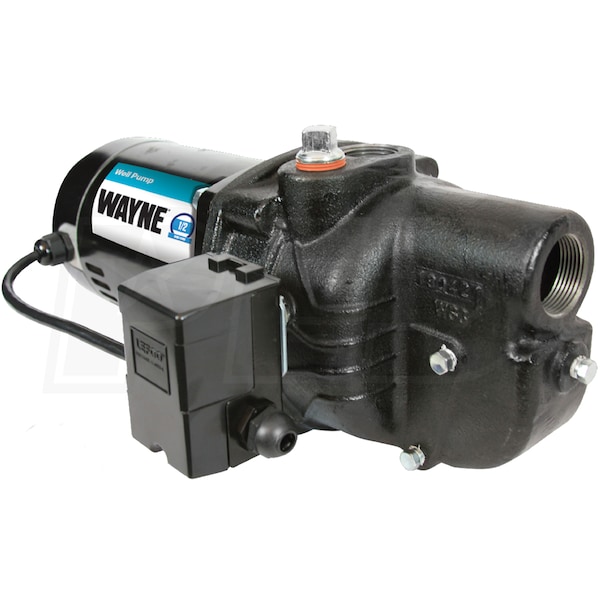

Wayne SWS50 - 1/2 HP Cast Iron Shallow Well Jet Pump

Model:

SWS50

Write A Review
$298.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Wayne SWS50 - 1/2 HP Cast Iron Shallow Well Jet Pump
Wayne SWS50 - 1/2 HP Cast Iron Shallow Well Jet Pump
Model: SWS50
$298.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

5.6 Gallons

  • Wayne Cast Iron Shallow Well Jet Pump
  • Assembled in the US with foreign and domestic parts
  • Designed For Wells 0' - 25' In Depth

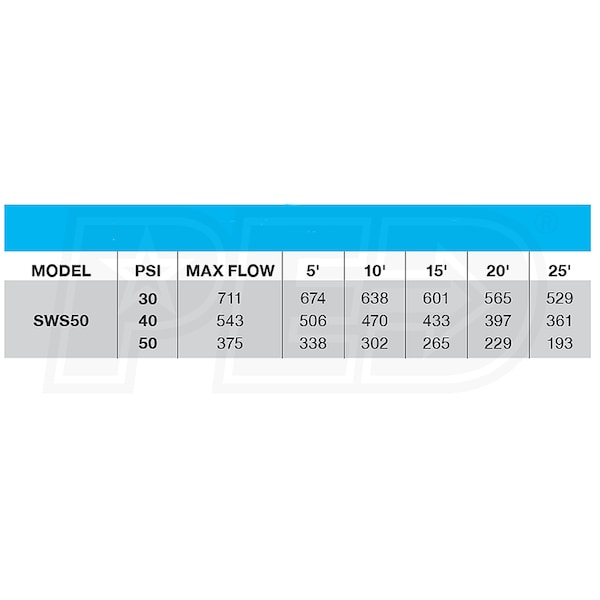

  • Pumps up to 338 GPH @ 5' Depth - (50 PSI)
  • All Cast Iron Motor Housing
  • Rugged, corrosion-resistant design provides longer pump life
  • 1/2 HP Dual Voltage Motor (120/240V)*
  • Energy efficient, thermally protected design
  • Thermoplastic Impeller
  • For maximum water flow and reliable operation
  • Includes Pre-Set Pressure Switch
  • Set at 30-50 PSI for automatic operation
  • 1-1/4" NPT Intake & 1" NPT Discharge
  • Easily connect to existing system
  • Dedicated Priming Port
  • Makes this pump very easy to use
  • 3-Year Limited Warranty
  • *No Power Cord Included
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

SWS50
specs product image PID-4347
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
5.6 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Continuous Operation
No
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
43.6 Pounds
Consumer Warranty
3 Years
Product Length
24 Inches
Product Width
12.5 Inches
Product Height
8 Inches
UPC
040066106117

Reviews

Wayne SWS50 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
What is the kick-on/kick-off pressure for this pump?
Mikey
from Illinois
January 24, 2024
Jim, I am looking at the Wayne half HP shallow well pump. I would like to know what kind of material the impeller is constructed?...plastic, metal etc.
Joseph L
from Michigan
December 28, 2015
