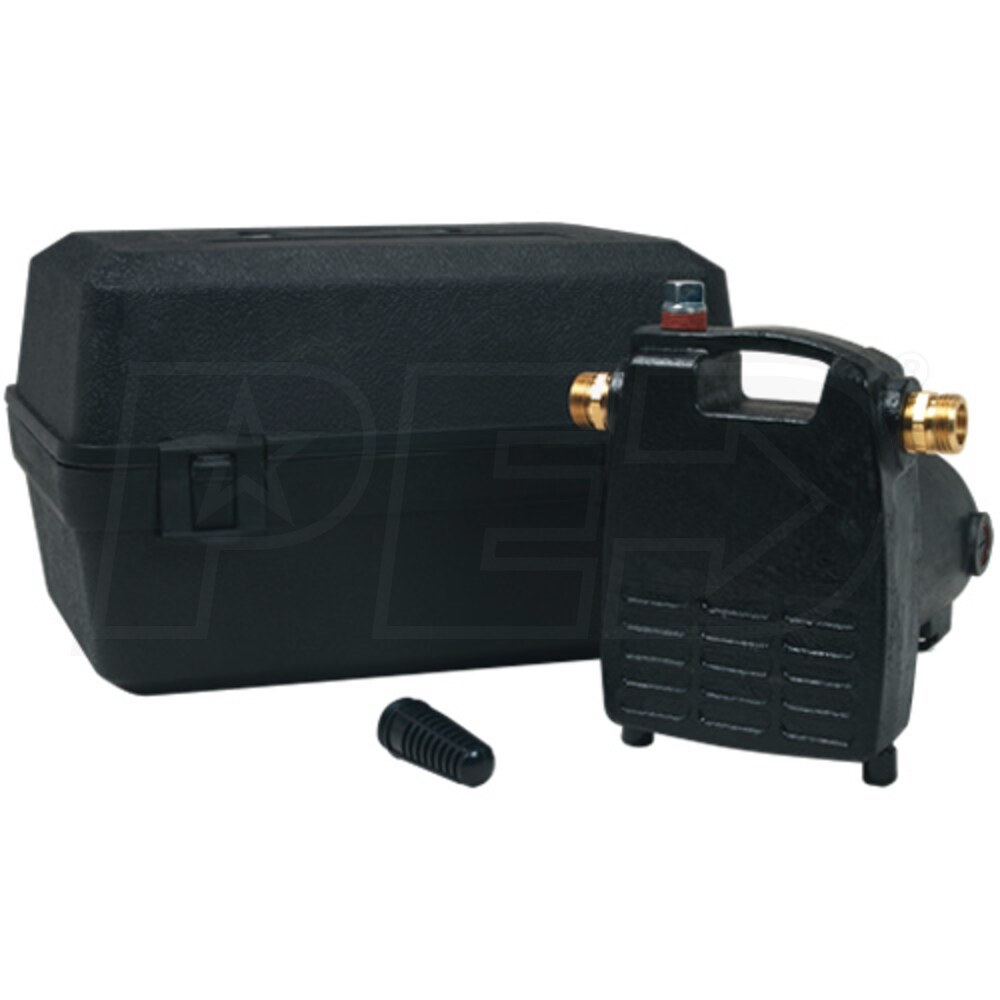

Wayne PC4K - 24 GPM (3/4") Portable Cast Iron Transfer Pump w/ Carrying Case

Model:

PC4K

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Wayne PC4K - 24 GPM (3/4
Wayne PC4K - 24 GPM (3/4") Portable Cast Iron Transfer Pump w/ Carrying Case
Model: PC4K
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 1
$323.00
Only 1 In-Stock

Features

Inlet Size

3/4 Inch

Style

Transfer

GPM

24.17 Gallons

Wayne PC4K - 24 GPM (3/4") Portable Cast Iron Transfer Pump w/ Carrying Case


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Cast Iron 1/2 HP Electric Transfer Utility Pump
  • Boosts line pressure up to 40 PSI
  • Moves up to 1,450 gallons per hour off a household outlet
  • Easy-Carry Cast Iron Handle For Portability
  • Get water out of your basement
  • Fill and empty stock tanks, pools, or water heaters
  • Easy To Use
  • 3/4" brass hose adapters connect to standard garden hose
  • Easy-Prime priming outlet
  • Reinforced thermoplastic suction strainer included
  • Includes:
  • Reinforced thermoplastic storage case
  • Suction strainer
  • 3/4" brass hose adapters

Specifications

PC4K
specs product image PID-2532
Motor
Voltage
120 Volt
Pump
Gallons Per Minute
24.17 Gallons
Inlet Diameter
3/4 Inch
Outlet Diameter
3/4 Inch
Self Priming
No
Housing Material
Cast Iron
Handles Solids
No
Suction Head
15 Feet
Maximum PSI
40
Total Head Lift
15 Feet
Submersible
No
Engine
Continuous Operation
No
Oil-Cooled
Yes
Horsepower
0.5 HP
Consumer Engine Warranty
1 Year
Overview
Weight
19 Pounds
Made in USA
No
Consumer Warranty
1 Year
Product Length
8.50 Inches
Product Width
12.00 Inches
Product Height
9.50 Inches
UPC
04006621133
Accessories
Strainer
Yes

Reviews

(9)
Wayne PC4K Reviews & Ratings
Customer Rating
3.89
(9 Ratings)
5
(6)
4
(0)
3
(1)
2
(0)
1
(2)
Verified Buyer
Verified Buyer
Wayne PC4k
By Deborah F.
Odessa, Florida
Purchased 08/31/2015 |
Review Posted 10/14/2015
This has exceeded our expectations!
Deborah F. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Bought it to pump residue water from pool
By Eugene Laird
Spring Valley, California
Purchased 08/28/2014 |
Review Posted 09/21/2014
No problems until purchasing an input hose. Read that I needed a reinforced hose but selected a pretty stiff vinyl hose, but it collapsed after about two minutes. Next bought a double reinforce hose and it went for over five minutes before it collapsed.

Just ordered on the web a POLY WIRE Vacuum/Pressure reinforced hose with a vacuum rating of 29.9" Hg.I'm confident this hose can handle this feisty pump.
Eugene Laird Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Exceeded Expectations, Easy To Store, I'd Buy It Again
Cons:
Heavy
Verified Buyer
Verified Buyer
Works great
By Terry
New Mexico
Purchased 07/10/2012 |
Review Posted 08/21/2012
The pump works great. I began by priming as your video instructed. Later I found that as long as the water supply side (a 50 gallon water tank) was higher than the pump, it seems to be virtually self-priming.

I use it to transfer 40 gallons of water from my pickup to my camper, located in the mountains of New Mexico. No more lifting 50 pound, 6 gallon water jugs.

Thanks!
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Will last for years
By George T.
Westminster, Colorado
Purchased 07/07/2012 |
Review Posted 08/18/2012
I purchased the Wayne Transfer Pump to dewater a septic tank. The transfer pump is cast iron and heavy, which I like. The transfer pumps appears to be well made and sturdy. I have used it twice already and it works well.

The filter adapter was inadequate, though. It could not be attached to the garden hose (male end) without an adapter fitting. I opted for a modified filter screen. I purchased a nozzle used for soaking, and looks like a bulb, which attaches on the end of the hose (male end). This modification works well and keeps out large pieces of debris when pulling water from the bottom of the septic tank.

The transfer pump arrive in an inadequate box and the case was damaged. Fortunately, the transfer pump was not. I contacted Water Pumps Direct and they were able to send me a new case, after I provided pictures and the serial number.

Overall, I am happy with the purchase, the performance of the transfer pump, and the customer service I received in getting the case replaced.

I am confident with proper care and maintenance, this transfer pump will last for years.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Works OK
By Steve
Florida
Purchased 07/22/2012 |
Review Posted 08/16/2012
The pump works OK if you're not trying to lift water over 6 ft. Anything over that and the flow rate is very slow. You need to use 3/4 in. hose for input and output as anything less reduces flow.

You also have to be careful when leaving water in the pump since it will rust. For the price of this pump it should be stainless steel.
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
3/5
icon-review-marker
Value
3/5
icon-review-marker
Verified Buyer
Verified Buyer
Perfect For My Needs
By David
Houston, Texas
Purchased 05/27/2012 |
Review Posted 07/30/2012
Needed this pump for water transfer (500 gallons plus). Was perfect for my needs. Has a nice case to store until needed.
Would do business with them again if needed.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Piece Of Crap
By Justin
Oklahoma
Purchased 07/06/2012 |
Review Posted 07/28/2012
Lasted one day. Don't waste your money.
Was this review helpful?
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
A WASTE OF MONEY
By Richard
Galesburg, Illinois
Review Posted 05/30/2012
LIKE THROWING YOUR MONEY AWAY. HERE IS YOUR CHANCE, TOTALLY BROKE AFTER A FEW HOURS USE. WAYNE =PAIN WAYNE KNOWS THEY MADE A POOR PRODUCT, AND ARE TRYING TO GET RID OF IT. COME ON WAYNE STOP .
Was this review helpful?
Rating Breakdown
Features
1/5
icon-review-marker
Quality
1/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
1/5
icon-review-marker
Verified Buyer
Verified Buyer
Water pump for my pool slide
By Robert Entrikin
las vegas, Nevada
Purchased 07/31/2010 |
Review Posted 08/21/2010
This pump works really well- I have an 8 ft tall water slide that's tapped for water and used just a hose before.

I did research and purchased this pump.I PVC piped it to the pool and the slide. It gets pretty hot here in Vegas but this pump does its job well.

My slide has a flow that doesn't stop. I recommend it to anyone looking for a good water transfer pump.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
