Features
Inlet Size
N/A
Style
Utility
GPM
82 Gallons
- Slimline Submersible Utility Pump w/ 2" Discharge
- Allows pump to fit into 8" pipes
- 1-HP 9.6-Amp Motor (22.1-Amp Starting) w/ Thermal Protection
- Continuous duty rated, capable of pumping up to 4920 GPH
- Top Discharge Provides Maximum Motor Cooling Efficiency
- Provides max motor cooling efficiency & extended dry run time
- Urethane Semi-Vortex Impeller & Wear Plates
- Designed for maximum durability & pump performance
- Double Inside Mechanical Seal w/ Silicon Faces
- Provides the longest operational life of any seal available
- Oil Lifter
- Provides lubrication of the seal faces
- V-Ring Seal Design
- Protects mechanical seal from abrasive particles
- 50' Power Cord
- Great for outdoor applications
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
LB-800
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
9.6
Power Cord Length
50 Feet
Pump
Gallons Per Minute
82 Gallons
Outlet Diameter
2 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.25 inch
Total Head Lift
59 Feet
Float Type
No Switch
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Silicon Carbide
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
35 Pounds
Consumer Warranty
2 Years
Product Width
7.75 Inches
Product Height
13.4375 Inches
UPC
894787000274
Additional Model Numbers
LB800, LB-800
Accessories
Float Switch
No
Reviews
(8)
Tsurumi Pump LB-800 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
How to Get Water Off Your Pool Cover
Every spring season, millions of Americans are faced with the dilemma of decidi...
How to Pick the Perfect Electric Water Pump
Electric water pumps are extremely versatile and have many different uses for ap...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

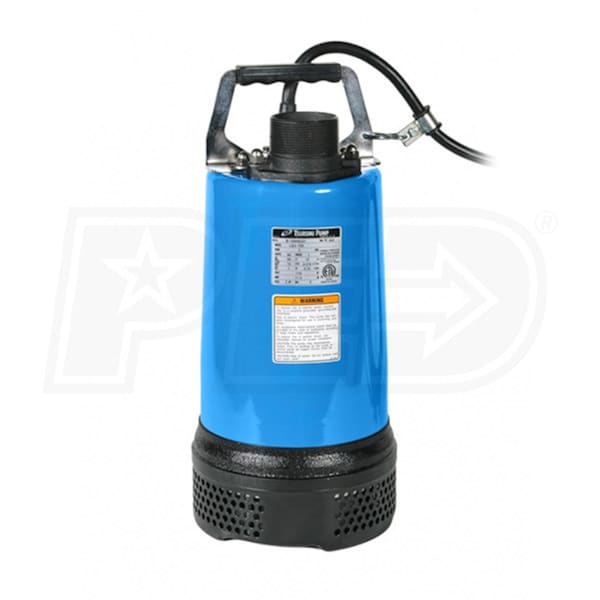

Tsurumi LB-800 - 82 GPM (2") Submersible Utility Pump
