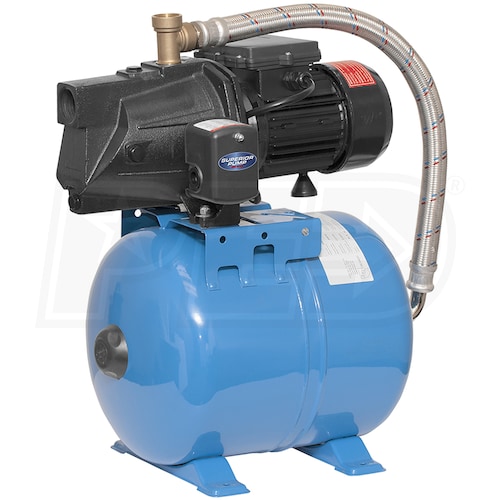

Superior Pump 12.5 GPM 1/2 HP Cast Iron Shallow Well Jet Pump System w/ 6.3-Gallon Tank
Model:
94525
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/4 Inch
Style
Shallow Well
GPM
12.5 Gallons
- Superior 1/2 HP Shallow Well Jet Pump System
- For shallow well applications up to 25' depth
- Provides up to 12.5 GPM
- 6.3 Gallon (24L) Pressure Tank
- For efficiency and high performance
- Cast Iron Pump Body & Seal Plate
- Robust design, extends pump life
- 115/230V Dual Voltage 1/2 HP Electric Motor w/ Overload Protection
- Factory set @ 115V for easy installation
- Permanently lubricated ball bearings for smoother operation
- Premounted Pressure Switch (20/40 Factory Preset)
- Fully adjustable design makes it easy to adapt to your current plumbing system
- Allows for a maximum of 67 PSI
- Thermoplastic Impeller & Glass-Filled Thermoplastic Diffuser
- Corrosion-resistant design provides excellent pump performance
- 1-1/4" FNPT - Intake/Suction & 1" Discharge
- Compatible with most residential plumbing applications
- 1-Year Pump & 3-Year Motor Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
94525
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
6.4/3.2
Thermal Protection
Yes
Pump
Gallons Per Minute
12.5 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
67
Submersible
No
Engine
Horsepower
0.5 HP
Consumer Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
50 Pounds
Consumer Warranty
1 Year
UPC
725113945252
Accessories
Pressure Switch
Yes
