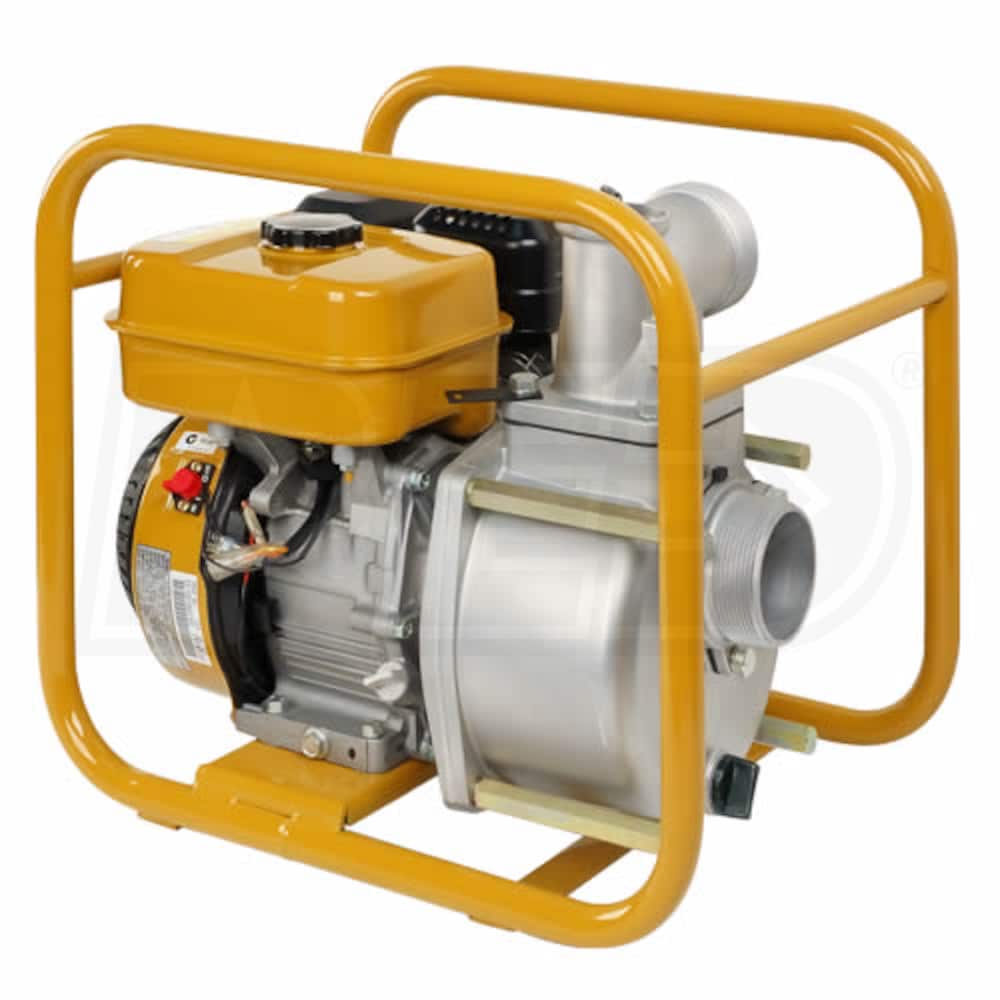

Subaru PKX301ST - 246 GPM (3") Semi-Trash Pump

Model:

PKX301ST

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Subaru PKX320ST - 246 GPM (3
Model:
PKX320ST
$662.15
Product Discontinued
Subaru PKX301ST - 246 GPM (3
Subaru PKX301ST - 246 GPM (3") Semi-Trash Pump
Model: PKX301ST
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3 Inch

Style

Semi-Trash

GPM

246 Gallons

Engine

Robin Subaru

  • Semi-Trash Pump
  • Works well in clear or slightly muddy & sandy water
  • Silicon Carbide Mechanical Seal
  • Provides stamina for tough applications
  • Cast Iron Impeller and Volute
  • Ensures maximum durability and performance
  • Shimmable Impeller
  • Adjustable clearance as pump wears from dirt and grit
  • 6 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 246 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .95-Gallon Fuel Tank w/ Strainer
  • Provides 2.5 hours of peak run time on a full tank
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum sound reduction
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Includes Standard Accessories
  • Tool kit, hose coupling, strainer and hose band

Specifications

PKX301ST
specs product image PID-3959
Pump
Gallons Per Minute
246 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Suction Head
26 Feet
Maximum PSI
40
Total Head Lift
92 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Low Oil Shutdown
Yes
Engine Cycles
4-Cycle
Horsepower
6 HP
Fuel Tank Size
0.96 Gallons
Run Time
2.5 Hours
Consumer Engine Warranty
3 Years
Overview
Weight
68 Pounds
Consumer Warranty
3 Years
Product Length
19.9 Inches
Product Width
15.2 Inches
Product Height
18.4 Inches
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No
