Subaru PKX220ST - 153 GPM (2

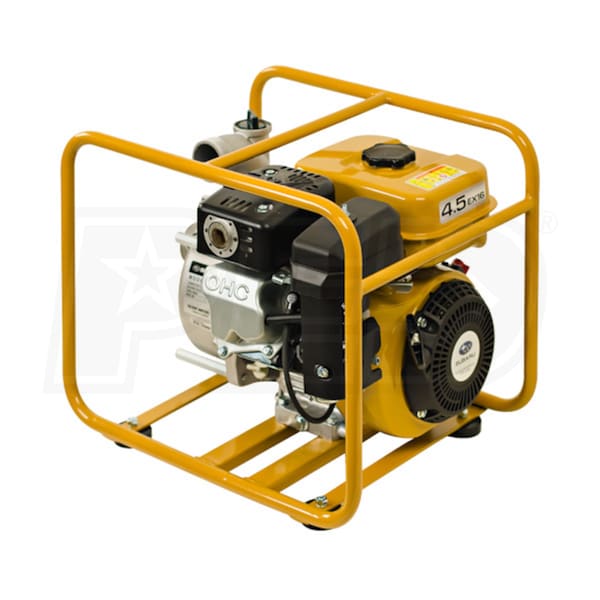

Subaru PKX220ST - 153 GPM (2") Semi-Trash Pump
Model: PKX220ST
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Semi-Trash

GPM

158 Gallons

Engine

Robin Subaru

Subaru PKX220ST - 153 GPM (2") Semi-Trash Pump


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Semi-Trash Pump
  • Works well in clear or slightly muddy & sandy water
  • Silicon Carbide Mechanical Seal
  • Provides stamina for tough applications
  • Cast Iron Impeller and Volute
  • Ensures maximum durability and performance
  • Shimmable Impeller
  • Adjustable clearance as pump wears from dirt and grit
  • 4.3 HP Subaru OHV 4-Cycle Engine w/ Speed Control
  • Provides enough power to pump 153 GPM
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • .85-Gallon Fuel Tank w/ Strainer
  • Provides 2.1 hours of peak run time on a full tank
  • Muffler w/ US Forestry Approved Spark Arrestor
  • Provides optimum sound reduction
  • Full Tubular Wrap-Around Frame
  • Heavy-duty steel frame protects the pump and motor on all sides
  • Includes Standard Accessories
  • Tool kit, hose coupling, strainer and hose band

Specifications

PKX220ST
specs product image PID-10034
Pump
Gallons Per Minute
158 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Suction Head
26 Feet
Maximum PSI
43
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
Horsepower
4.3 HP
Fuel Tank Size
0.85 Gallons
Run Time
2.1 Hours
Consumer Engine Warranty
3 Years
Overview
Weight
57 Pounds
Consumer Warranty
3 Years
Product Length
19.3 Inches
Product Width
15.2 Inches
Product Height
16.2 Inches
Accessories
Tool Kit
Yes
Strainer
Yes
Hose Couplings
No
Hose
Sold Separately
Hose Bands
Yes
Lifting Hook
No
Wheel Kit
No

Reviews

(1)
Subaru PKX220ST Reviews & Ratings
Subaru PKX220ST Semi-Trash 2” Water Pump
By Tools In Action
Illinois
Review Posted 04/23/2015
The job site is a dirty place and when it rains it is a wet place. Since most job sites are just being built there is no drainage. All it takes is one rain storm to ruin your day. We recently were filming at a house under construction and a rain storm flooded the basement. To clear the water quickly you need a semi-trash pump. Semi-trash means that the pump can handle small amounts of debris getting sucked in without the risk of damaging the pump.

Subaru is known for making quality products and engines, the PKX220ST is no different. It is designed to take the abuse of daily industrial use. The 4.3 hp Subaru engine is one of the easiest starting and smoothest running engines that I have ever operated. You can run this at idle while pumping and it doesn’t skip a beat. It has the features that the pros want like a steel gas tank with strainer, a fuel shut off valve and low oil shutdown. As you can see in the video it purrs like a kitten and at full throttle pumps 153 gallons per minute. The unit can run 2.1 hours on .85 of a gallon of gas.

The unit weighs 58 lbs and is easily carried. The pump has a self-priming feature. Basically you just remove a cap and pour water into the pump until it starts pumping. This would be my first choice of pumps, even over a Honda. Subaru engines are proved well and have a proven track record of being reliable.
Tools In Action Recommends This
