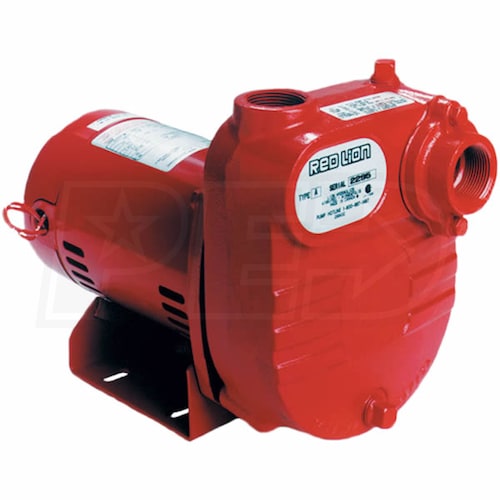

Red Lion 45 GPM 1/2 HP Cast Iron Surface Effluent Pump

Model:

621810

Write A Review
$519.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Red Lion 45 GPM 1/2 HP Cast Iron Surface Effluent Pump
Red Lion 45 GPM 1/2 HP Cast Iron Surface Effluent Pump
Model: 621810
$519.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Dewatering

GPM

45 Gallons

  • 1/2 HP Self-Priming Surface Effluent Pump
  • Engineered for pumping out liquid from septic tanks
  • Any dewatering/transfer application where small solids are present
  • Robust Cast Iron Pump Casing
  • Extremely durable design for longevity in effluent applications
  • Heavy Duty 1/2 HP Dual-Voltage 115/230V Motor
  • Voltage selector for simple connection to existing power source
  • Self-Priming Design w/ Built-In Check Valve
  • After initial fill, no additional priming required
  • Cast Iron Impeller
  • Provides superior abrasion resistance to solids present in water
  • 1-1/4" FNPT Suction & Discharge
  • Easily connects to your current discharge line
  • Drain Plug For Easy Maintenance & Servicing
  • Allows for easy emptying of pump housing
  • Additional Specs: Shut Off @ 49' & Max Pressure: 21 PSI
  • *Note - Strainer (Sold Separately) Rec'd For Effluent Applications
  • Amp Draw at 120/240 volts SF: 12/6 FLA: 8/4
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

621810
specs product image PID-50554
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
45 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1-1/4 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Quick Clean Out
No
Housing Material
Cast Iron
Impeller Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
21
Total Head Lift
49 Feet
Check Valve Included
Yes
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.5 HP
Consumer Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
42 Pounds
Consumer Warranty
2 Years
Product Length
10.25 Inches
Product Width
20 Inches
Product Height
11.75 Inches
UPC
010121126435
Additional Model Numbers

RL-S50, 621810

Accessories
Tool Kit
No
Strainer
Sold Separately
Float Switch
No
