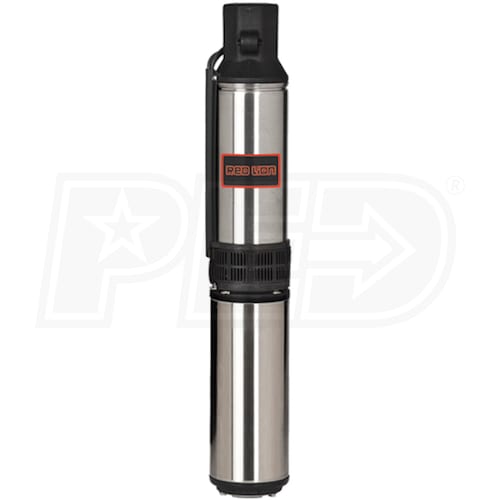

Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (2-Wire 115V)

Model:

14942401

Write A Review
$422.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (2-Wire 115V)
Red Lion 12 GPM 1/2 HP Deep Well Submersible Pump (2-Wire 115V)
Model: 14942401
$422.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

12 Gallons

  • 4" Submersible Deep Well Pump
  • Ideal for use with 4" I.D. or larger wells
  • Powered By Industry Standard Motor
  • Proven superior quality & performance ensuring quiet operation
  • Hex Rubber Bearing w/ Extra-Large Surface
  • Provides shaft stability and multiple flow channels
  • Keeps small particles such as sand away from bearing surfaces
  • Built-In Check Valve
  • Prevents back-flow and ensures system pressure
  • Built-In Suction Screen
  • Helps to prevent debris from clogging impellers
  • 1-1/4" NPT Thermoplastic Discharge Head
  • Provides full-flow performance without the risk of corrosion

Specifications

14942401
specs product image PID-7495
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Wire
2-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4 Inch
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
200 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
21 Pounds
Made in USA
No
Consumer Warranty
3 Years
UPC
010121141773
Additional Model Numbers

RL12G05-2W1V, 14942401

Reviews

(57)
Red Lion 14942401 Reviews & Ratings

Product Q&A

(9)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
Can this pump be mounted horizontally ? I want to use it to pump water from a shallow 4-5 ft deep spring pond.
David
from Texas
July 04, 2018
Does this pump have a rope tie-off to prevent losing it in the well?
David M.
from Arkansas
March 14, 2018
I have read that this pump utilizes a Franklin motor, is this true?
Ken K.
from Texas
May 10, 2017
In have 4 inch ID pvc well casing ..your product description says it will fit. What is the width of the pump?
Vince
from Indiana
June 16, 2016
I plan to replace a 30 yer old pump that is at 200 ft. and lower the new pump to 250 ft in a 400 ft deep well. Will I need to a check valve mid way up as well as at the well head?
Ken G
from California
July 27, 2015
Does wiring come with the pump
Dwight B
from Louisiana
June 11, 2015
Does this pump require a separate control box?
Robert B
from Alaska
November 03, 2014
Does the Red Lion RL12G07-2W2V have thermal over load protection
Clark
from Kentucky
February 05, 2014
Does this pump have a grounding wire beside the two hot wires?
Dan S
from New York
August 17, 2013
