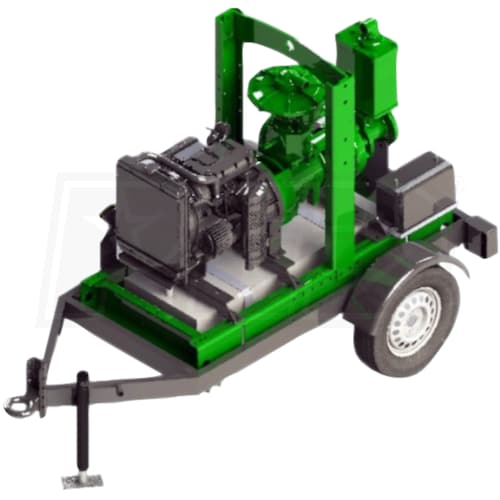

Pioneer Pump 1200 GPM (4") Trailer Mounted Electric Start Diesel Trash Pump w/ Kohler KDW1000 Engine
Model:
44S8-PPI-01-K
+
Share This Product
Recommended Accessories
![Water Pumps Direct expert image](http://www.powerequipmentdirect.com/images/experts/expert-avatar-9.png)
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
4 Inch
Style
Trash
GPM
1200 Gallons
Engine
Kohler
- 4" Pioneer Prime Diesel-Driven GL Series Centrifugal Pump & Trailer Package
- Designed for industrial, municipal, agricultural, mining, dewatering, or rental applications
- Compact size ideal for construction sites and other general dewatering needs
- Kohler KDW1003, 3-Cylinder Diesel Engine (Tier 4 Final)
- Integrated fuel-injection system and overhead cam for less maintenance
- Superior balance, lower cylinder volume, and belt-driven valve train for smooth operation
- Instrument panel w/ oil pressure gauge, voltmeter, hour meter and tachometer
- Meets US EPA Tier 4 Final
- Pioneer Prime - A True Dry-Prime Pump (Run Dry)
- Self-priming system w/ mechanically driven vacuum pump
- Elimianates the need for water to prime & prevents product carryover
- Environmentally safe vac-assist priming system with PosiValve™ evacuates air
- Also provides continuous, unattended reprime under auto start conditions
- Non-Clogging, Enclosed, ASTM A744 CA6NM Stainless Steel Impeller
- Passes up to 3" diameter spherical solids
- Ductile Iron, Class 30 Pump Housing
- Gear driven design helps to reduce wear of parts
- Provides greater resistance to shock loading to extend pump life
- ASTM A536 Grade 65-45-12 Ductile Iron Volute, Cover & Suction Spool
- Robust design for the most demanding pumping applications
- Kohler Standard Instrument Panel w/ Auto-Start Controls
- Compatible with High/Low level floats (Not Included)
- Telemetry ready design to meet the needs of your unique application
- 25-Gallon Diesel Fuel Tank
- Provides a minimum operating time of 23 Hours @ 1800 RPM
- Heavy-Duty, Department Of Transportation (DOT) Compliant Trailer
- Vibration isolation mounts help extend product life
- Pintle Hitch & Safety Chains
- Stabilizing Jack; Side Step Fenders; LED Tail Lights & Marker Lights
- 2-Year Warranty
- *Requires Loading Dock or Forklift For Delivery*
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
44S8-PPI-01-K
![specs product image PID-155927](/products-image/150/44s8-ppi-01-k_155927_1000_53c1b2e8343a8288ed148ed02453ff03.jpg)
General Information
Product Category
Water Pump
Motor
Battery Included
Yes
Pump
Gallons Per Minute
1200 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
28 Feet
Total Head Lift
68 Feet
Submersible
No
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
22.9 HP
Fuel Tank Size
25 Gallons
Run Time
23 Hours
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
1950 Pounds
Certification
Final Tier 4
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
98 Inches
Product Width
50 Inches
Product Height
74 Inches
Accessories
Float Switch
No
Lifting Hook
Yes
Wheel Kit
Yes
