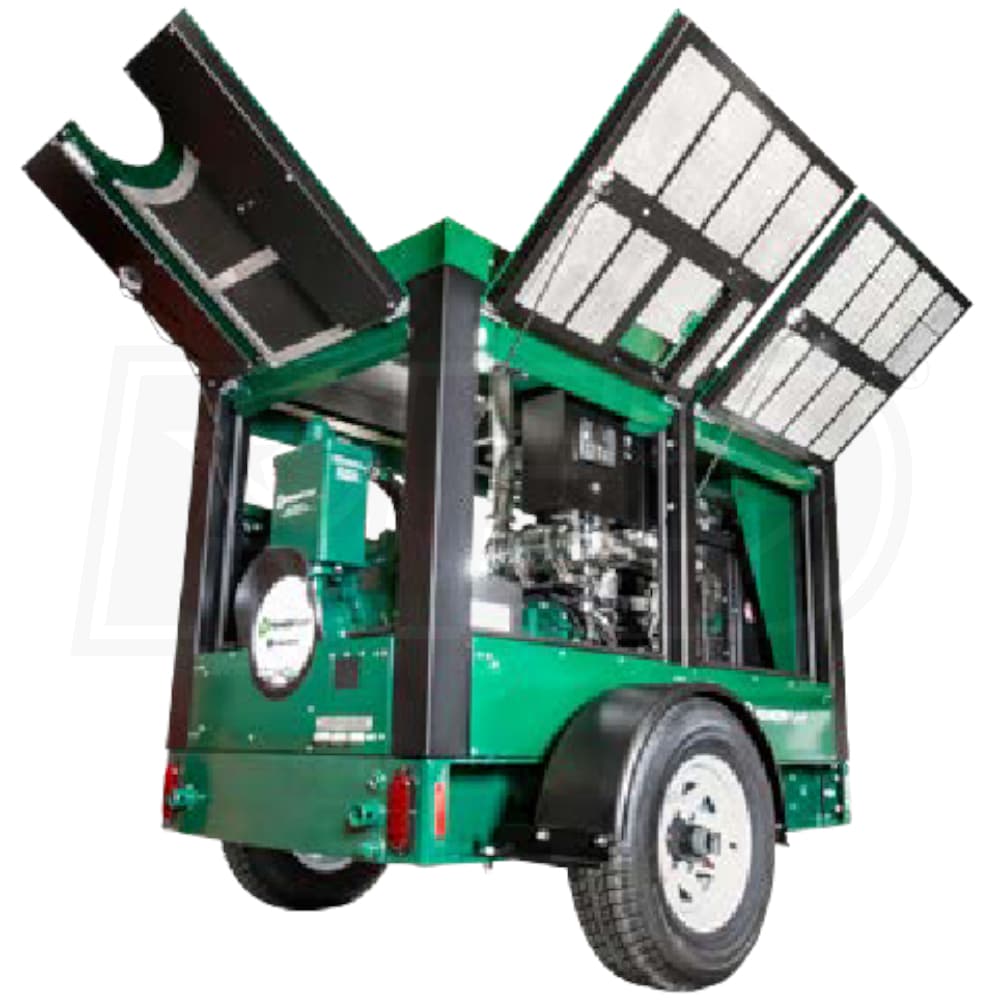

Pioneer Pump 1520 GPM (4") Trailer Mounted Electric Start Diesel Trash Pump w/ Deutz D2.9L Engine & Sound Attenuated Enclosure
Model:
44S10-PPI-02-D
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
4 Inch
Style
Trash
GPM
1520 Gallons
Engine
Deutz
- 4" Pioneer Prime Sound Attenuated Diesel-Driven Centrifugal Pump & Trailer Package
- Designed and built for the toughest water / waste water environments
- Provides better flow, higher heads and greater efficiency
- Ideal for rental, construction, oil and gas, mining, and agricultural markets
- Sound-Attenuated Enclosure
- Decrease noise levels to 69 dBa @ 23'
- Heavy-Duty sound deadening material to meet industry standards for noise reduction
- Lockable door panels can be removed without tools for direct access to the pump
- Deutz D2.9L, 4-Cylinder Diesel Engine (Tier 4 Final)
- "Common Rail" injection system and highly-efficient combustion process
- Provides high torque in a compact size, capable of doing the job of a much larger engine
- Instrument panel w/ oil pressure gauge, voltmeter, hour meter and tachometer
- Meets US EPA Tier 4 Final with an oxidation catalyst
- Pioneer Prime - A True Dry-Prime Pump (Run Dry)
- Self-priming system w/ mechanically driven, diaphragm-style vacuum pump
- Eliminates the need for water to prime & prevents product carryover
- Maximizes lift capability and offers quick initial priming
- Also provides continuous, unattended reprime under auto stop/start conditions
- Non-Clogging, Enclosed, ASTM A744 CA6NM Stainless Steel Impeller
- Passes up to 3" diameter spherical solids
- Ductile Iron, Class 30 Pump Housing
- Gear driven design helps to reduce wear of parts
- Provides greater resistance to shock loading to extend pump life
- ASTM A536 Grade 65-45-12 Ductile Iron Volute, Cover & Suction Spool
- Robust design for the most demanding pumping applications
- LOFA CP900 Control Panel w/ Auto-Start Controls
- Compatible with High/Low level floats (Not Included) and transducers
- Telemetry ready design to meet the needs of your unique application
- 75-Gallon Diesel Fuel Tank
- Provides a minimum operating time of 36 Hours @ 1800 RPM
- Heavy-Duty, Department Of Transportation (DOT) Compliant Trailer
- Vibration isolation mounts help extend product life
- Electric brakes (7-Pin Plug) w/ breakaway switch; Pintle Hitch & Safety Chains
- Stabilizing Jack; Side Step Fenders; LED Tail Lights & Marker Lights
- 2-Year Warranty
- *Requires Loading Dock or Forklift For Delivery*
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
44S10-PPI-02-D
General Information
Product Category
Water Pump
Motor
Battery Included
Yes
Pump
Gallons Per Minute
1520 Gallons
Inlet Diameter
4 Inch
Outlet Diameter
4 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide / Tungsten Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
28 Feet
Maximum PSI
260
Total Head Lift
155 Feet
Submersible
No
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Low Oil Shutdown
Yes
Continuous Operation
Yes
Horsepower
49 HP
Fuel Tank Size
75 Gallons
Run Time
36 Hours
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
3670 Pounds
Certification
Final Tier 4
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
130 Inches
Product Width
69 Inches
Product Height
88 Inches
Accessories
Float Switch
No
Lifting Hook
Yes
Wheel Kit
Yes
