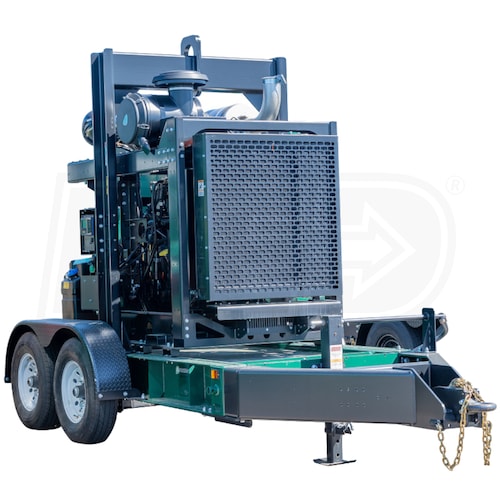

Pioneer Pump 10,300 GPM (12") Trailer Mounted Electric Start Diesel Trash Pump w/ John Deere 6.8L Engine

Model:

1212S17T-PPI-01-J

Write A Review
$168,500.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Pioneer Pump 10,300 GPM (12
Pioneer Pump 10,300 GPM (12") Trailer Mounted Electric Start Diesel Trash Pump w/ John Deere 6.8L Engine
Model: 1212S17T-PPI-01-J
$168,500.00
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Inlet Size

12 Inch

Style

Trash

GPM

10300 Gallons

Engine

John Deere

    *Please note that this item ships on a flatbed truck and delivery of this item requires a forklift, a crane or pallet jack and loading dock to unload
  • 12" Pioneer Prime Diesel-Driven Centrifugal Pump & Trailer Package
  • Designed and built for the toughest water / waste water environments
  • Provides better flow, higher heads and greater efficiency
  • Ideal for rental, construction, oil and gas, mining, and agricultural markets
  • John Deere 6.8L 4-Cylinder Industrial Diesel Engine (Tier 4 Final)
  • Series turbocharging delivers more boost pressure than single turbocharger configurations
  • Catalyzed exhaust filter for a cleaner operating engine
  • Cooled exhaust gas recirculation (EGR) helps reduce Nox
  • Meets US EPA Tier 4 Final with an oxidation catalyst
  • Pioneer Prime - A True Dry-Prime Pump (Run Dry)
  • Self-priming system w/ mechanically driven, diaphragm-style vacuum pump
  • Eliminates the need for water to prime & prevents product carryover
  • Maximizes lift capability and offers quick initial priming
  • Also provides continuous, unattended reprime under auto stop/start conditions
  • Non-Clogging, Enclosed, ASTM A744 CA6NM Stainless Steel Impeller
  • Passes up to 3.6" diameter spherical solids
  • Ductile Iron, Class 30 Pump Housing
  • Gear driven design helps to reduce wear of parts
  • Provides greater resistance to shock loading to extend pump life
  • ASTM A536 Grade 65-45-12 Ductile Iron Volute, Cover & Suction Spool
  • Robust design for the most demanding pumping applications
  • LOFA CP900 Control Panel w/ Auto-Start Controls
  • Compatible with High/Low level floats (Not Included) and transducers
  • Telemetry ready design to meet the needs of your unique application
  • 210-Gallon Diesel Fuel Tank
  • Provides a minimum operating time of 17 Hours @ 1800 RPM
  • Heavy-Duty, Department Of Transportation (DOT) Compliant Trailer
  • Vibration isolation mounts help extend product life
  • Electric brakes (7-Pin Plug) w/ breakaway switch; Pintle Hitch & Safety Chains
  • Stabilizing Jack; Side Step Fenders; LED Tail Lights & Marker Lights
  • 2-Year Warranty
  • Note* Item ships on a flatbed truck and delivery of this item requires a forklift, a crane or pallet jack and loading dock to unload
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

1212S17T-PPI-01-J
specs product image PID-163751
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
10300 Gallons
Inlet Diameter
12 Inch
Outlet Diameter
12 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide / Tungsten Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Solids Handling Size
3.6 inch
Handles Solids
Yes
Suction Head
28 Feet
Maximum PSI
260
Total Head Lift
128 Feet
Submersible
No
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
Continuous Operation
Yes
Low Oil Shutdown
Yes
Horsepower
275 HP
Fuel Tank Size
210 Gallons
Run Time
17 Hours
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Overview
Product Category
Water Pump
Weight
11920 Pounds
Certification
Final Tier 4
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
207 Inches
Product Width
85.5 Inches
Product Height
116.7 Inches
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
