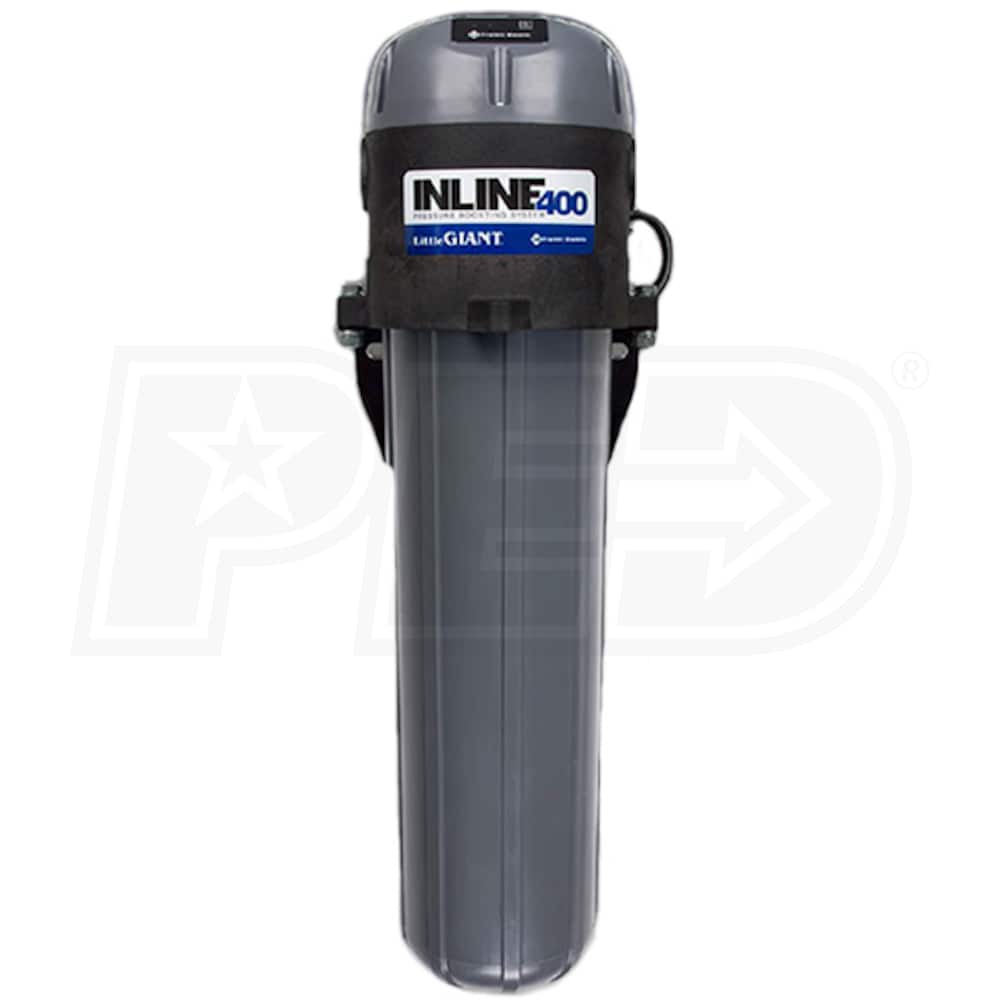

Little Giant Inline 400 Booster System (230V)

Model:

92061504

Write A Review
$1,447.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

Little Giant Inline 400 Booster System (230V)
Little Giant Inline 400 Booster System (230V)
Model: 92061504
$1,447.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

GPM

20 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Little Giant Inline 400 Pressure Boosting System (230V)
  • A compact & economical way to meet all of your pressure boosting needs
  • Easy Installation (Vertically or Horizontally) w/ 1-1/4" NPT In/Out
  • Enables the pump to work with existing plumbing configuration
  • Multi-Application Design
  • Boost water pressure from municipal source & irrigation systems
  • Pressurize from cistern tanks & re-pressurize after filtration
  • Franklin Electric Motor Pump & 1/3 HP Motor (230V)
  • Creates the most trustworthy product on the market
  • Simple, Flow Based Control
  • You get the pressure every time you need it
  • Whisper Quiet Operation
  • Keeps the peace around the house
  • Added Protection
  • Over/Under voltage protection, dry run, and over temperature
  • 6' Power Cord w/ Plug
  • Plug & play design, does NOT need to be hardwired
  • Max Water Temperature 120°F
  • 2-Year Limited Warranty
  • Engineered, Designed IN THE USA

Specifications

92061504
specs product image PID-16622
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
3.3
Pump
Gallons Per Minute
20 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Suction Head
5 Feet
Maximum PSI
95
Submersible
No
Engine
Horsepower
0.3 HP
Overview
Product Category
Water Pump
Weight
35 Pounds
Consumer Warranty
2 Years
Product Length
29.6 Inches
Product Width
8.5 Inches
Product Height
8.9 Inches
UPC
010121149502
