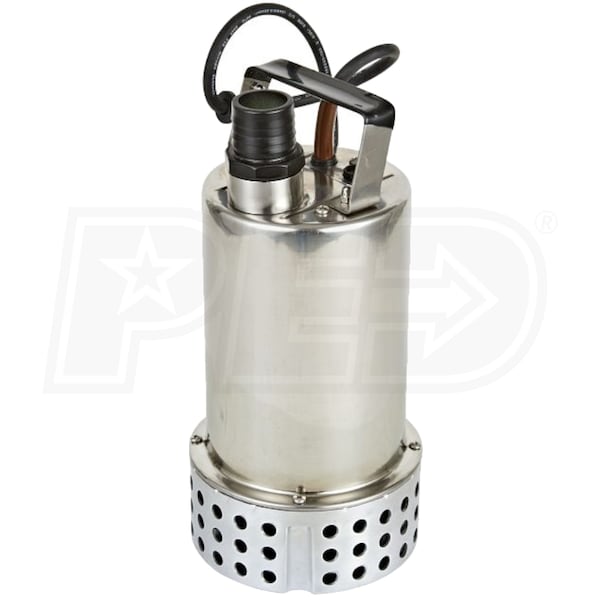

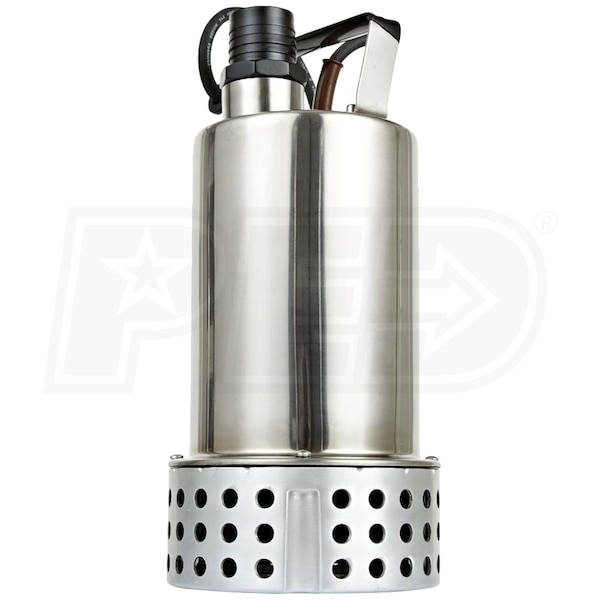

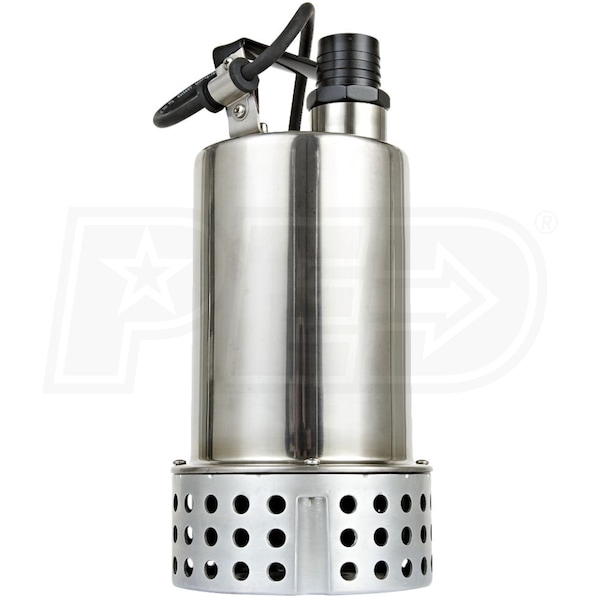

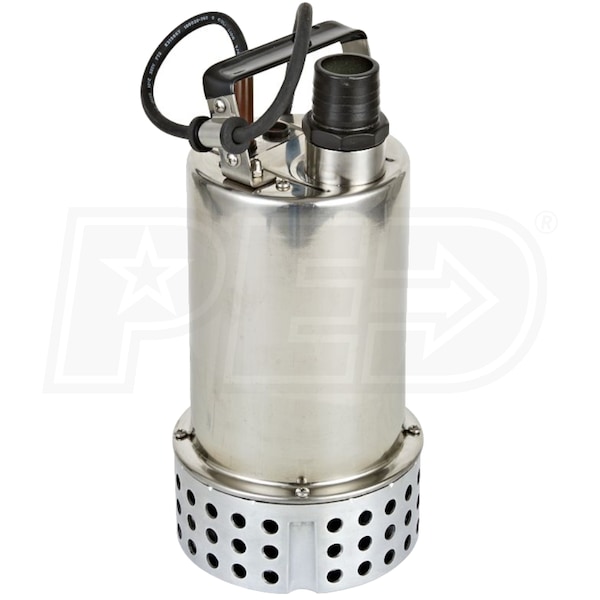

Little Giant MDP-1 - 71 GPM (1-1/4") 3/4 HP Stainless Steel Main Drain Utility Pump w/ 25' Cord
Model:
577306
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Utility
GPM
71 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- MDP-1 Series Main Drain Pump
- Quickly removes water for professional pool maintenance
- Stainless Steel Submersible Utility Pump
- A great pump for general dewatering around the home or job site

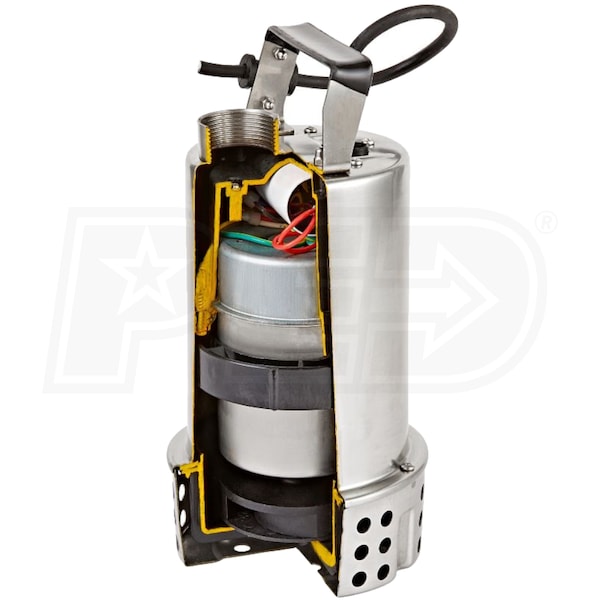

- 3/4 HP PSC Continuous Duty Motor w/ Built-In Thermal Protection
- Turns off the power in case of overload to protect the pump
- Compact Design w/ Top Mount Discharge
- Narrow width of pump (5.9") is great for tight applications
- Universal Bottom Inlet
- Will fit inside most 8" swimming pool main drains
- Stainless Steel Casing
- Lightweight & durable design resists corrosion
- Semi-Open Polymer Impeller
- The ability to move 3670 GPH @ 10' head
- Chemical-Resistant FKM Triple-Lip Seal
- Helps extend pump life in harsh swimming pool environments
- Stainless Steel Motor Shaft & Fasteners
- Designed to extend the pump life
- 1-1/4" NPT Discharge
- High volume design to provide maximum water flow

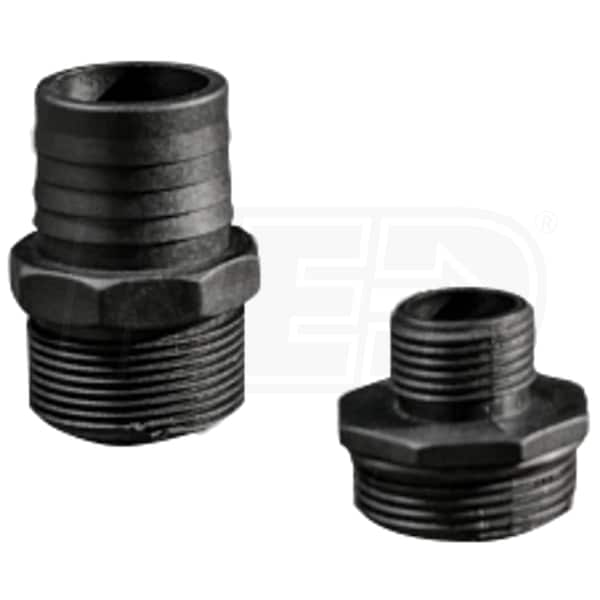

- Includes 3/4" Garden Hose & 1-1/2" Hose Barb Adapter

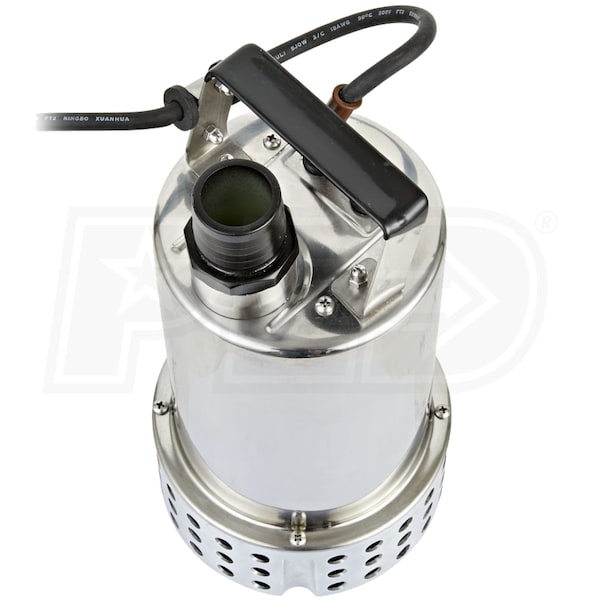

- Built-In Handle
- Makes this pump easy to transport and set-up
- 25-Foot Power Cord
- Sealed at motor housing for a watertight fit
- 1-Year Warranty
- Note - Flush With Clean Water After Every Use - Do Not Run Pump Dry
Effortlessly remove pool water with the durable and portable Little Giant Main Drain Pump. Its power can handle any obstacle, including harsh chemicals that reduce algae growth.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
577306
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
71 Gallons
Outlet Diameter
1-1/4 Inch
Mechanical Seal Material
FKM
Housing Material
Stainless Steel
Impeller Material
Composite
Handles Solids
No
Total Head Lift
43.5 Feet
Float Type
No Switch

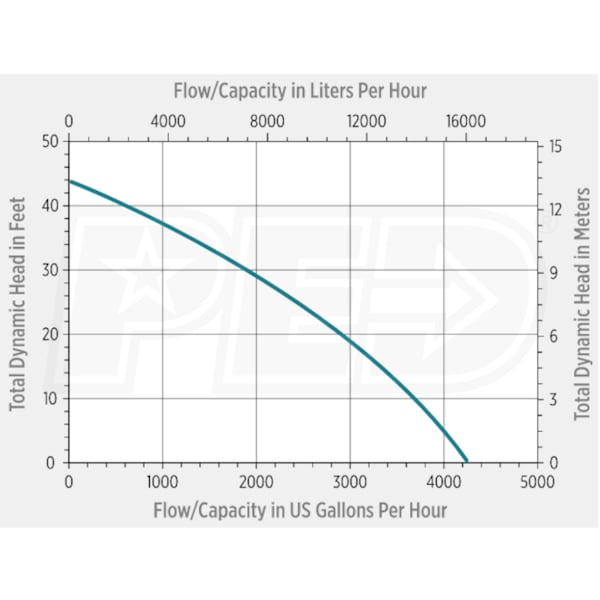

GPH @ 0 feet
4260
GPH @ 5 feet
4020
GPH @ 10 feet
3670
GPH @ 15 feet
3290
GPH @ 20 feet
2890
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
14.5 Pounds
Consumer Warranty
1 Year
Product Length
5.9 Inches
Product Width
5.9 Inches
Product Height
12.2 Inches
UPC
029753444992
Accessories
Float Switch
No
Transport Handle
Yes
