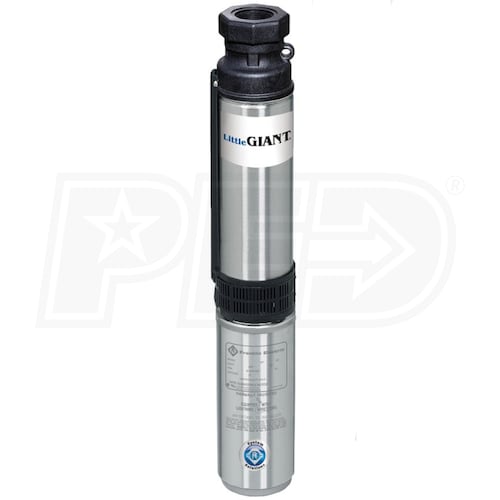

Little Giant W12G05S5-31P - 12 GPM 1/2 HP Deep Well Submersible Pump w/ Thermoplastic Dsch. (12 GPM @ 60' - 212' Off) (3W - 115V)

Model:

559176

Write A Review
$1,348.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Little Giant W12G05S5-31P - 12 GPM 1/2 HP Deep Well Submersible Pump w/ Thermoplastic Dsch. (12 GPM @ 60' - 212' Off) (3W - 115V)
Little Giant W12G05S5-31P - 12 GPM 1/2 HP Deep Well Submersible Pump w/ Thermoplastic Dsch. (12 GPM @ 60' - 212' Off) (3W - 115V)
Model: 559176
$1,348.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

12 Gallons

  • The Little Giant W-P Series - W12G05S5-31P Submersible Deep Well Pump
  • 3.9-Inch diameter well pump fits 4-inch diameter driven wells or larger
  • NSF/ANSI 372 certified for potable water
  • 304 Stainless Steel Pump Shell
  • Excellent corrosion-resistance in well water
  • Engineered Thermoplastic Discharge and Motor Bracket
  • For harsh well water conditions
  • Built-Ins:
  • Check valve helps keep pump from rapid cycling and extends the motor lift
  • Suction screen helps keep debris out protecting the impellers
  • 1/2 HP Motor: 3-Wire (not including ground), 115-Volt Franklin Electric Motor
  • Control box Required (Not Included - Sold Separately)
  • 5-Stage Pump Rated For 12 GPM
  • At 30 PSI it can deliver 12 GPM at a depth of 60 feet
  • Specs:
  • 1/2 HP, 115 Volts; 12 GPM; 3-Wire (plus ground) (Requires control box)
  • 212-ft. Shut-off
  • 1-1/4-inch FNPT discharge; Thermoplastic discharge
  • 1-Year Warranty

Specifications

559176
specs product image PID-153705
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Wire
3-Wire
Pump
Gallons Per Minute
12 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Thermoplastic
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
180 Feet
Max Head
212 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
25 Pounds
Consumer Warranty
1 Year
Product Length
21.6 Inches
Product Width
3.9 Inches
Product Height
3.9 Inches
Accessories
Control Box
Sold Separately
