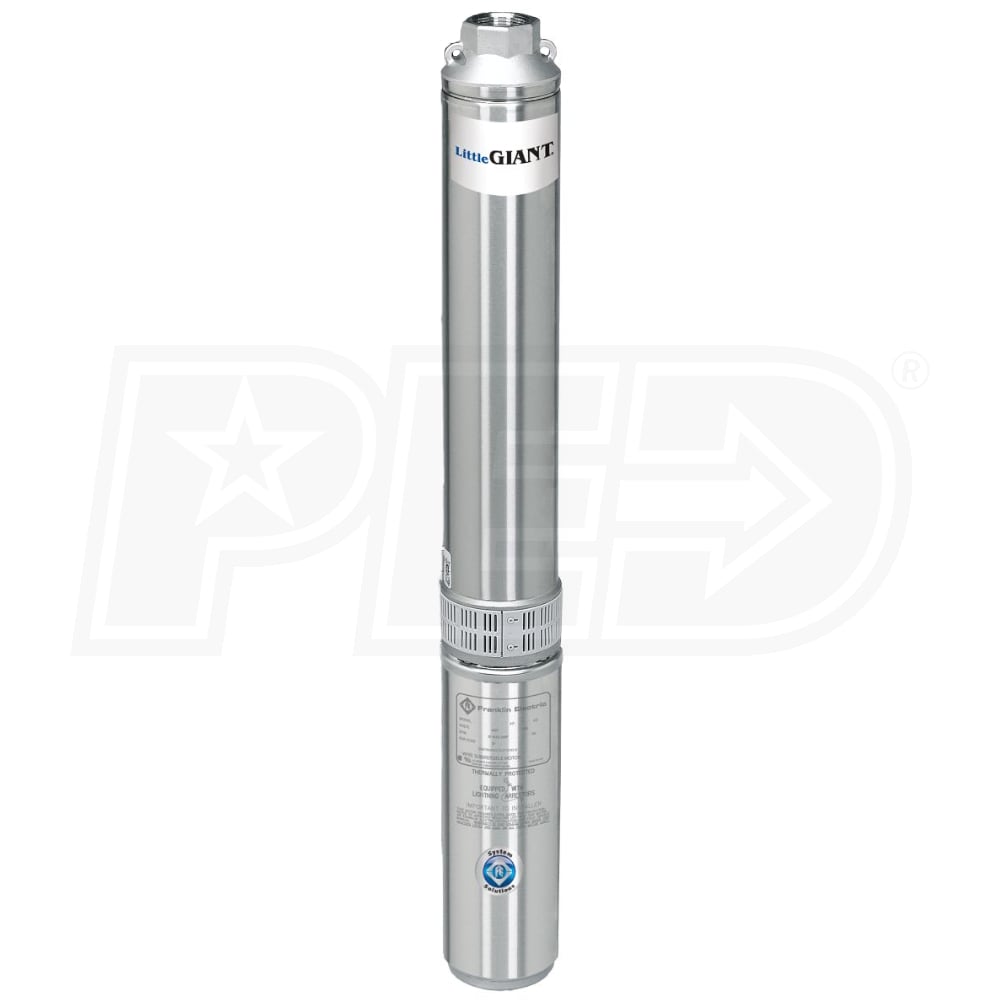

Little Giant W5G10S15-22S - 5 GPM 1 HP Deep Well Submersible Pump w/ Stainless Steel Dsch. (5 GPM @ 400' - 609' Off) (2W - 230V)
Model:
559154
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
5 Gallons
- The Little Giant W-S Series - W5G10S15-22S Submersible Deep Well Pump
- 3.9-Inch diameter well pump fits 4-inch diameter driven wells or larger
- NSF/ANSI 372 certified for potable water
- 304 Stainless Steel Pump Shell
- Excellent corrosion-resistance in well water
- Stainless Steel Discharge & Engineered Thermoplastic Motor Bracket
- Provides extended pump life in wells with less debris
- Built-Ins:
- Check valve helps keep pump from rapid cycling and extends the motor lift
- Suction screen helps keep debris out protecting the impellers
- 1 HP Motor: 2-Wire (not including ground), 230-Volt Franklin Electric Motor
- Control box not required
- 15-Stage Pump Rated For 5 GPM
- At 30 PSI it can deliver 5 GPM at a depth of 400 feet
- Specs:
- 1 HP, 230 Volts; 5 GPM; 2-Wire (plus ground)
- 609-ft. Shut-off
- 1-1/4-inch FNPT discharge; Stainless Steel Discharge
- 1-Year Warranty
Specifications
559154
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt
Wire
2-Wire
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
80
Total Head Lift
600 Feet
Max Head
609 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
38 Pounds
Consumer Warranty
1 Year
Product Length
31.4 Inches
Product Width
3.9 Inches
Product Height
3.9 Inches
