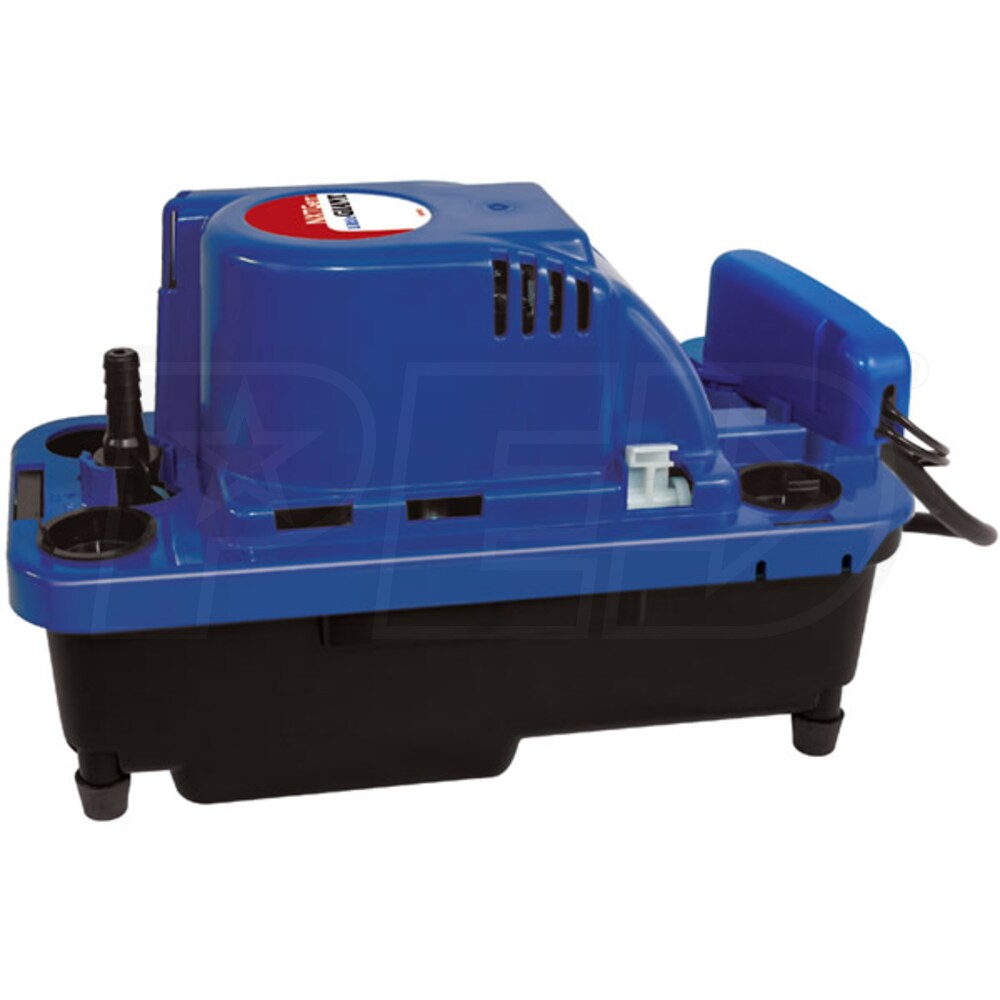

Little Giant VCMX-20ULS - 1.4 GPM NXTGen High Capacity Condensate Removal Pump
Model:
554530
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
1-1/8 Inch
Style
Condensation
GPM
1.4 Gallons
- VCMX-20 Series High Capacity Condensate Removal Pump
- Capable of pumping up to 84 GPH @ 1', 60 GPH @10' (Off @ 21')
- Ideal For Air Conditioning, Refrigeration & Dehumidification Applications
- Also for high efficiency oil & gas-fired condensing furnaces/boiler equipment
- High-Impact ABS Thermoplastic Housing/Motor Cover Volute & Switch Float
- Engineered to minimize rust and corrosion in moist environments
- Thermally Protected, 1/30 HP High Performance Motor (115V)
- Energy efficient at only 1.5A; Improved cooling for longer life
- 3/8
- Makes servicing this pump an easy task
- Internal Float Switch For Start & Stop Operation w/ Ext. Test Switch
- Vertical centrifugal pump design, for water up to 140F
- External, Safety Overflow Switch w/ (2) 5" Switch Lead Wires
- Dual function NO & NC operation (Set to NO from factory)
- Oil Resistant 1/3 Gallon Tank w/ (3) 1-1/8" Inlets w/ Removable Cap Plug
- Suits the needs of a wide variety of residential/HVAC applications
- "Quick Install" Wall Mounting Bracket & Rubber Pump Feet
- Minimizes noises and vibration during operation
- 6' Power Cord w/ 3-Prong Plug
- 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
554530
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.5
Pump
Gallons Per Minute
1.4 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
3/8 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Maximum PSI
9.1
Total Head Lift
21 Feet
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.03 HP
Overview
Product Category
Water Pump
Weight
5 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
10.2 Inches
Product Width
4.8 Inches
Product Height
6.5 Inches
UPC
010121120709
Accessories
Float Switch
Yes
Hose
Sold Separately
