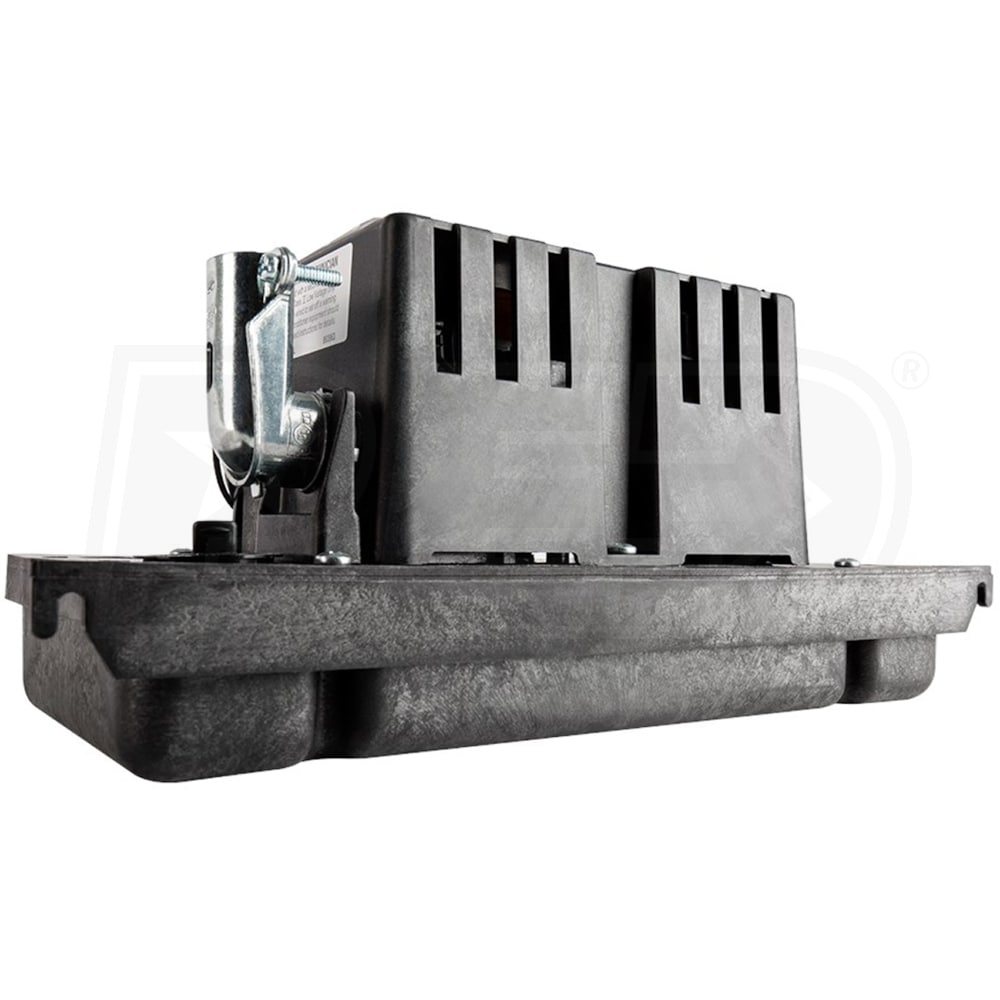

Little Giant VCC-20-P - 1.33 GPM Low Profile Condensate Pump for Plenum Use

Model:

554220101

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant VCC-20-P - 1.33 GPM Low Profile Condensate Pump for Plenum Use
Little Giant VCC-20-P - 1.33 GPM Low Profile Condensate Pump for Plenum Use
Model: 554220101
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/8 Inch

Style

Condensation

GPM

1.33 Gallons

  • VCC-20-P - 1/30 HP Low Profile Condensate Pump
  • Capable of pumping up to 80 GPH @ 1', 45 GPH @10' (Off @ 20')
  • Labeled "For Plenum Applications", Will Also Work In Air Handling Applications
  • Designed for automatic collection and removal of condensate
  • Thermally Protected, 1/30 HP Fan-Cooled Motor (115V)
  • Stainless motor shaft, low amp draw of 1.5A
  • Vertical Centrifugal Pump Design For Air Conditioning, Refrigeration, & Dehumidification Equipment
  • Intermittent liquid temperature up to 140
  • Automatic Start And Stop Switch For Automatic Collection
  • Float-activated auxiliary high-level switch
  • Two 72" high-level switch lead wires
  • Ideal For Tight Spaces Where Gravity Drainage Is Not Possible Or Practical
  • 1-3/4" low profile tank height
  • 1.2 quart (1.1 liters) capacity tank
  • Designed For Hard-Wire Installation Only (6' Leads)
  • 72" 3-conductor lead wires with conduit fitting
  • For 1/2" diameter flexible metal conduit
  • Built-In Check Valve Installed On The Pump
  • 3/8" O.D. barbed discharge adapter
  • 1-1/8" diameter inlet
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

554220101
specs product image PID-70719
Motor
Voltage
120 Volt
Running Amps
1.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Pump
Gallons Per Minute
1.33 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
3/8 Inch
Maximum PSI
8.6
Total Head Lift
20 Feet
Float Type
Electronic
GPH @ 0 feet
80
GPH @ 5 feet
70
GPH @ 10 feet
45
Submersible
No
Engine
Oil-Cooled
No
Horsepower
0.033 HP
Overview
Weight
4.5 Pounds
Certification
cCSAus, UL 2043
Made in USA
No
UPC
010121151543
Accessories
Float Switch
Yes
