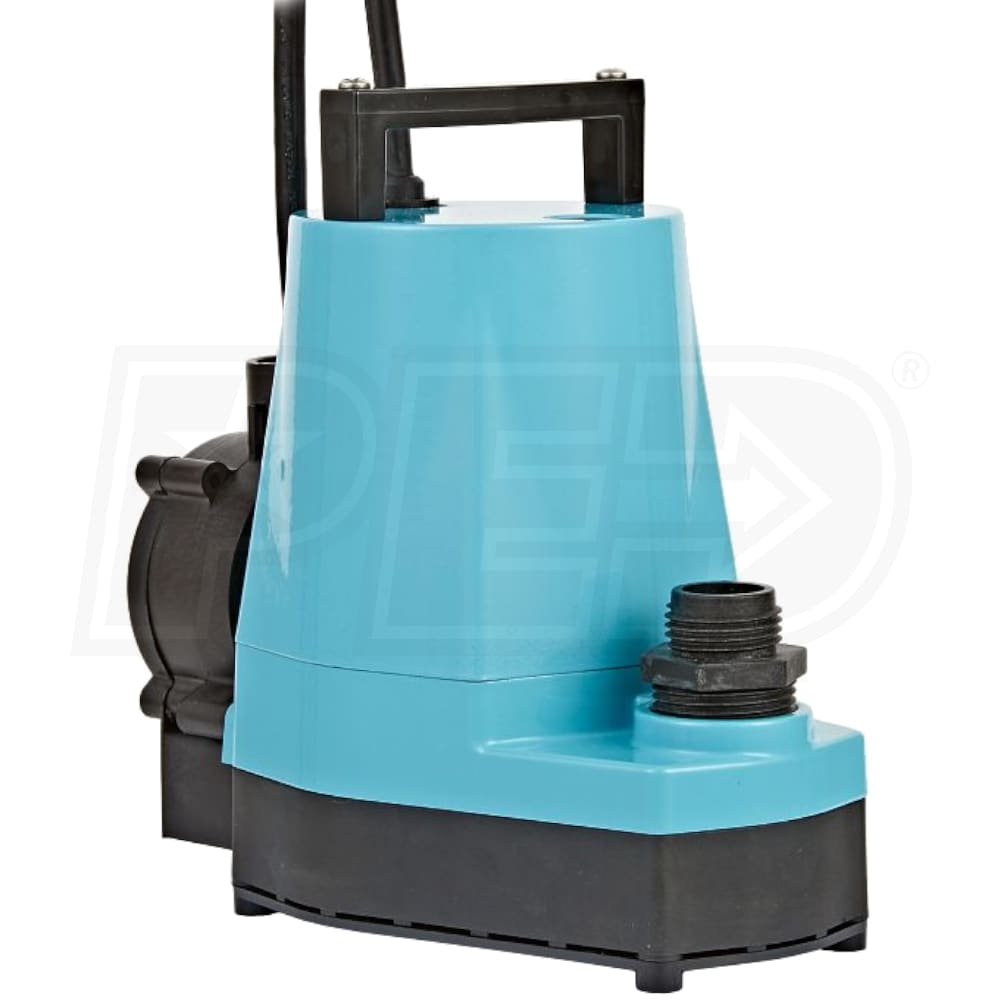

Little Giant 5-ASP - 1/6 HP Automatic Utility Pump w/ PB Diaphragm Switch 10' Cord
Model:
505715
+
Share This Product
Features
Inlet Size
N/A
Style
Utility
GPM
20 Gallons
- Submersible Automatic Multi-Purpose Utility Pump
- Ideal for emergency water removal
- Great For Basements, Rooftops, Window Wells & Crawl Spaces
- Provide automatic (piggyback switch) or manual operation
- 1/6 HP Energy Efficient Motor
- Continuous duty rated with thermal overload protection
- Piggyback Diaphragm Switch w/ 10' Cord
- On level: 6"-9", Off level: 1"-4"
- Epoxy-Coated Cast Aluminum Construction w/ Viton Shaft Seal
- Designed to maximize pump life
- Screened Bottom Intake
- Removes water to within 1/8" of surface (manual mode)
- Screen removes for easy cleaning
- Perfect For Quick & Easy Household Use
- 1" discharge w/ 3/4" garden hose adapter
- 1-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
505715
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
2
Thermal Protection
Yes
Power Cord Length
18 Feet
Pump
Gallons Per Minute
20 Gallons
Outlet Diameter
1 Inch
Self Priming
Yes
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Maximum PSI
11.4
Total Head Lift
26.3 Feet
Float Type
Diaphragm
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.16 HP
Overview
Product Category
Water Pump
Weight
10 Pounds
Consumer Warranty
1 Year
Product Length
7.8 Inches
Product Width
4.3 Inches
Product Height
7.8 Inches
UPC
029753004639
Accessories
Float Switch
Yes
