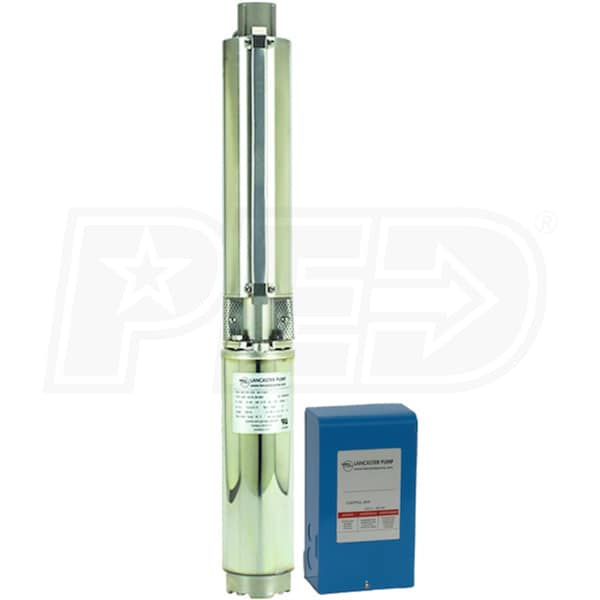

Lancaster Pump 3LSW10007-2 - 1 HP 22 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (3-W 230V) & CB
Model:
2-3LSW10007-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
22 Gallons
- SURVIVOR W-Series 22 GPM 4" Sub. Well Pump (3-Wire 230V)
- For 4" I.D. or + Wells (<220'); 3-Wire Starting - Control Box Included
- 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
- Continuous duty rated, Capacitor-start induction run (CSIR) - Req. Control Box (Included)
- Stainless Steel Motor Casing & Splined Shaft End
- Hermetically sealed, permanently lubricated, for greater heat exchange
- Built-In Lighting Arrestors & Automatic Reset Overload
- Provides surge and overhead protection for increased protection
- 1.25" Stainless Steel Discharge Head, Motor & Cable Support
- Superior strength & corrosion resistance for max life; replaceable CV
- Balanced Teflon® Impregnated Thermoplastic Impellers
- Reduces overall friction to maximize water flow
- Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
- Each stage has separate comp. thrust washer for added protection
- Heavy wall, High Quality SS Pump Casing & SS Intake Screen
- Sized inside for perfect stage alignmen; wouldn't snap off during install
- 1 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
- Includes 230V relay, start capacitor & 2 ground/cable terminals
- NEMR 3R Outdoor rated, painted steel enclosure, QD components
- 3-Year Limited Warranty
Specifications
2-3LSW10007-2
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
94
Total Head Lift
220 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
26.65 Inches
Product Width
3.81 Inches
Accessories
Control Box
Yes
