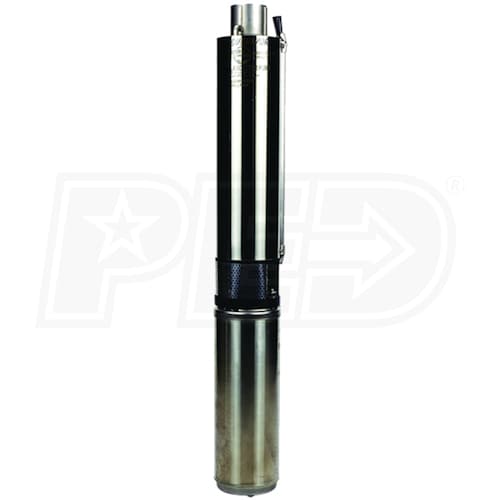

Lancaster Pump 2SPU15011-2 - 1-1/2 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)

Model:

2-2SPU15011-2

Write A Review
$1,411.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Lancaster Pump 2SPU15011-2 - 1-1/2 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)
Lancaster Pump 2SPU15011-2 - 1-1/2 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Franklin Motor (2-Wire 230V)
Model: 2-2SPU15011-2
$1,411.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Inlet Size

N/A

Style

Deep Well

GPM

15 Gallons

  • SURVIVOR U-Series 15 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<180'); 2-Wire Starting - No Control Box Required
  • 1-1/2 HP Franklin Electric Encapsulated Sub. Motor
  • Capacitor-start induction run (CSIR) design; continuous duty-rated
  • Stainless Steel Motor Casing & Glass-filled Noryl® Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
  • Superior strength, while minimizing corrosion & Field replaceable check valve
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy Wall, High-Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • 3-Year Limited Warranty

Specifications

2-2SPU15011-2
specs product image PID-139899
Motor
Voltage
240 Volt Single-Phase
Wire
2-Wire
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
156
Total Head Lift
380 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1.5 HP
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
38.7 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Length
32.34 Inches
Product Width
3.81 Inches
