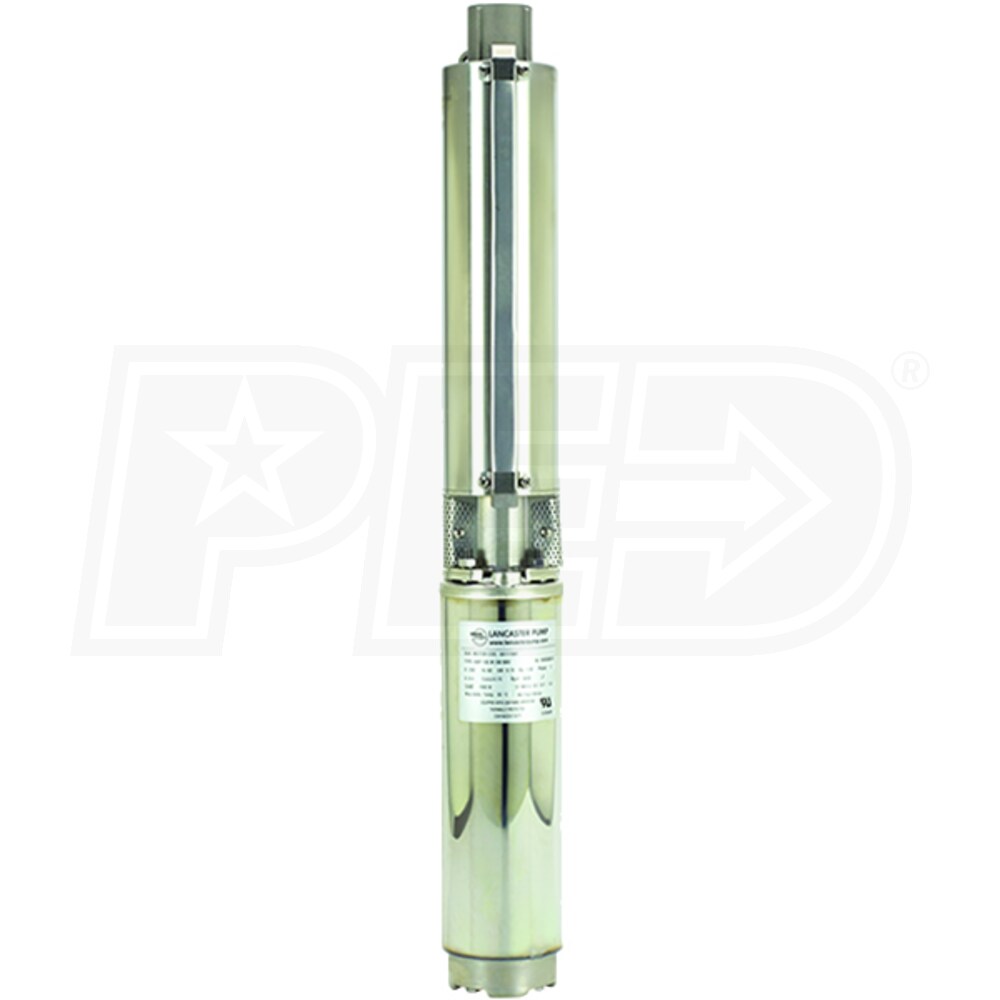

Lancaster Pump 2-2LSJ10017-2 - 1 HP 5 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)

Model:

2-2LSJ10017-2

Write A Review
$858.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Lancaster Pump 2-2LSJ10017-2 - 1 HP 5 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)
Lancaster Pump 2-2LSJ10017-2 - 1 HP 5 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)
Model: 2-2LSJ10017-2
$858.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

5 Gallons

  • SURVIVOR J-Series 5 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<500'); Two-Wire Starting - No Control Box Req
  • 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Splined Shaft End
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head, Motor & Cable Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty

Specifications

2-2LSJ10017-2
specs product image PID-57887
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
12
Wire
2-Wire
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
60
Total Head Lift
600 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
34 Pounds
Consumer Warranty
3 Years
Product Length
27.44 Inches
Product Width
3.81 Inches
