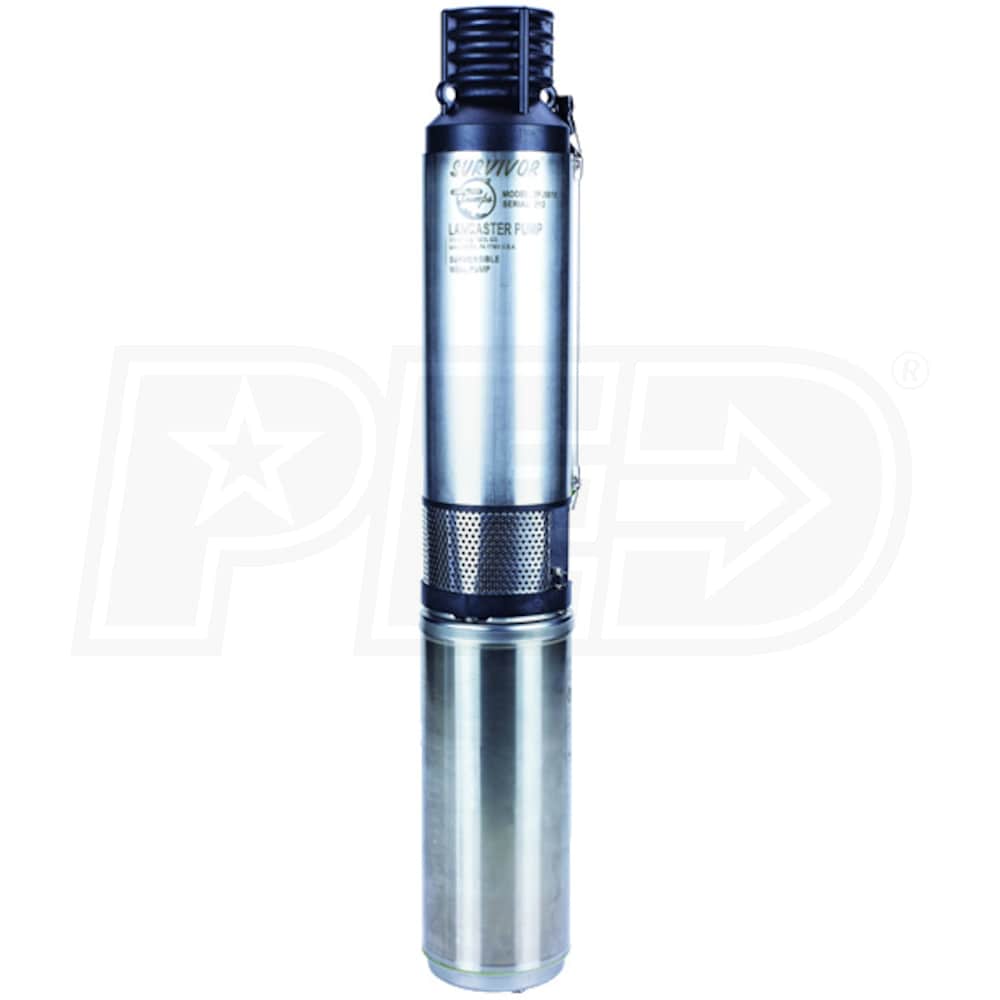

Lancaster Pump 2LPT5007-2 - 1/2 HP 10 GPM Deep Well Submersible Pump (2-Wire 230V)
Model:
2-2LPT5007-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
10 Gallons
- SURVIVOR T-Series 10 GPM 4" Sub. Well Pump (2-Wire 230V)
- For 4" I.D. or + Wells (<220'); Two-Wire Starting - No Control Box Req
- 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
- Continuous duty rated, Induction run design w/ built-in starter
- Stainless Steel Motor Casing & Splined Shaft End
- Hermetically sealed, permanently lubricated, for greater heat exchange
- Built-In Lighting Arrestors & Automatic Reset Overload
- Provides surge and overhead protection for increased protection
- 1.25 Glass-filled Noryl® Discharge Head & Motor Support
- Minimizes corrosion from high mineral content water
- Field replaceable fluted internal check valve & molded jug handles
- Balanced Teflon® Impregnated Thermoplastic Impellers
- Reduces overall friction to maximize water flow
- Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
- Each stage has separate comp. thrust washer for added protection
- Heavy wall, High Quality SS Pump Casing & SS Intake Screen
- Sized inside for perfect stage alignment; wouldn't snap off during install
- Stainless Steel Hex Shaft w/ Slotted End For Test Turning
- Polyurethane bearing (top/end motor shaft) for wear resistance
- 3-Year Limited Warranty
Specifications
2-2LPT5007-2
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
6.4
Wire
2-Wire
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Thermoplastic
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
94
Total Head Lift
220 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
23.8 Pounds
Consumer Warranty
3 Years
Product Length
23.47 Inches
Product Width
3.81 Inches
