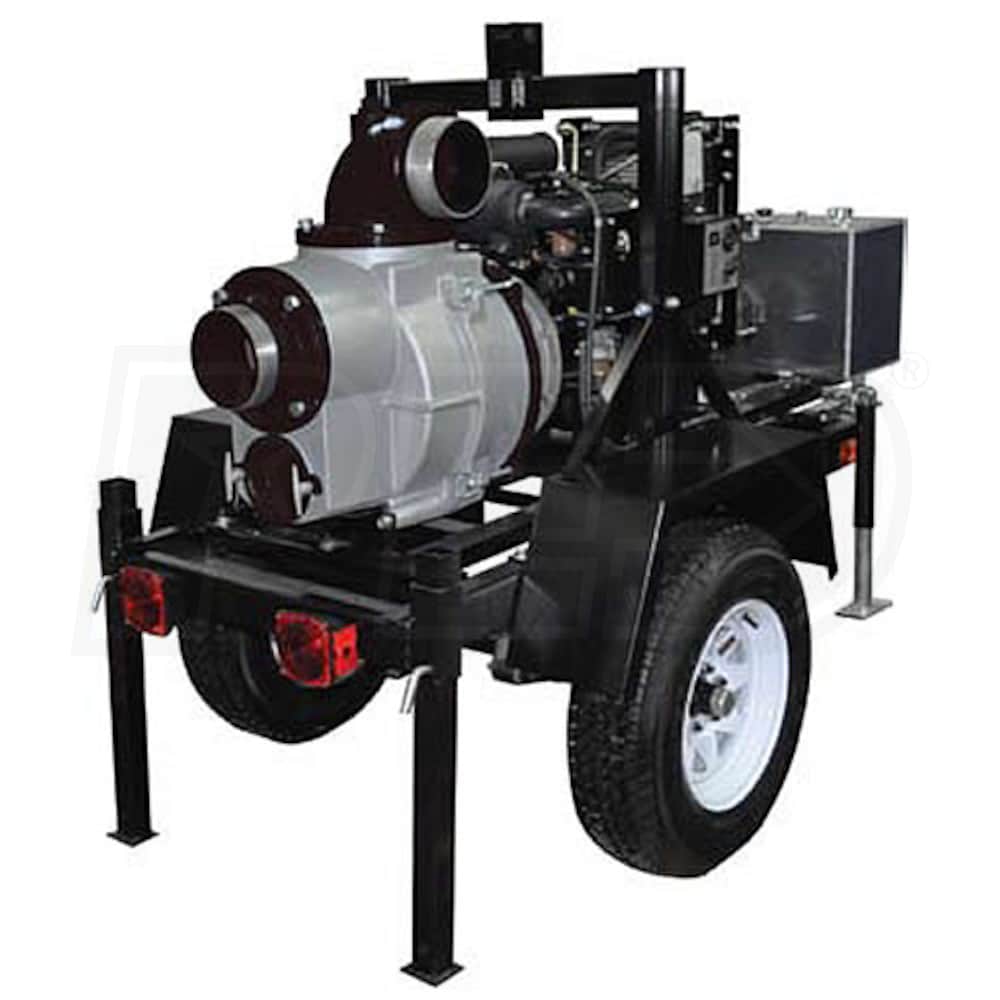

Koshin KTD-150 - 1000 GPM (6") Trailer Mounted Diesel Trash Pump

Model:

KTD-150

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Koshin KTD-150 - 1000 GPM (6
Koshin KTD-150 - 1000 GPM (6") Trailer Mounted Diesel Trash Pump
Model: KTD-150
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

6 Inch

Style

Trash

GPM

1000 Gallons

Engine

Yanmar

  • Koshin Trailer-Mounted 6" Diesel Trash Pump
  • For large volume flow & solid/debris handling up to 3"
  • Yanmar 904cc Diesel Engine w/ 20-Gallon Fuel Tank
  • Designed for long run times of up to 12 hours on a single tank
  • 12V Electric Start w/ Tachometer & Hour-Meter
  • Makes this pump easy to start, monitor and maintain
  • Cast Aluminum Pump Housing
  • Proven design decreases weight without compromising durability
  • Cast Iron Seal Plate, Volute & Manifold
  • Ensures maximum durability and performance
  • Stainless Steel Impeller
  • Corrosion-resistant design for industrial applications
  • Silicon Carbide Mechanical Seal & Buna O-Rings/Check Valve
  • Increased abrasive resistance, longer life & less maintenance
  • Easy Clean-Out & Service Feature w/ Slide-Out Design
  • Slide mechanism permits complete servicing w/o removing hoses
  • D.O.T. Approved Trailer
  • 2000 lb axle, 2" ball coupler, 3 x 2000 lb jack stands
  • Requires Loading Dock or Forklift For Delivery
  • 2-Year Limited Warranty

Specifications

KTD-150
specs product image PID-8672
Pump
Gallons Per Minute
1000 Gallons
Inlet Diameter
6 Inch
Outlet Diameter
6 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Silicon Carbide
Impeller Material
Stainless Steel
Solids Handling Size
3 inch
Suction Head
26 Feet
Maximum PSI
40
Total Head Lift
98 Feet
Submersible
No
Engine
Engine Brand
Yanmar
Starting System
12-Volt Key Start
Horsepower
23 HP
CC
90 cc
Fuel Tank Size
20 Gallons
Run Time
12 Hours
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Overview
Weight
1125 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
92 Inches
Product Width
52 Inches
Product Height
48 Inches
Accessories
Tool Kit
Yes
Strainer
Sold Separately
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
Yes
Wheel Kit
Yes
