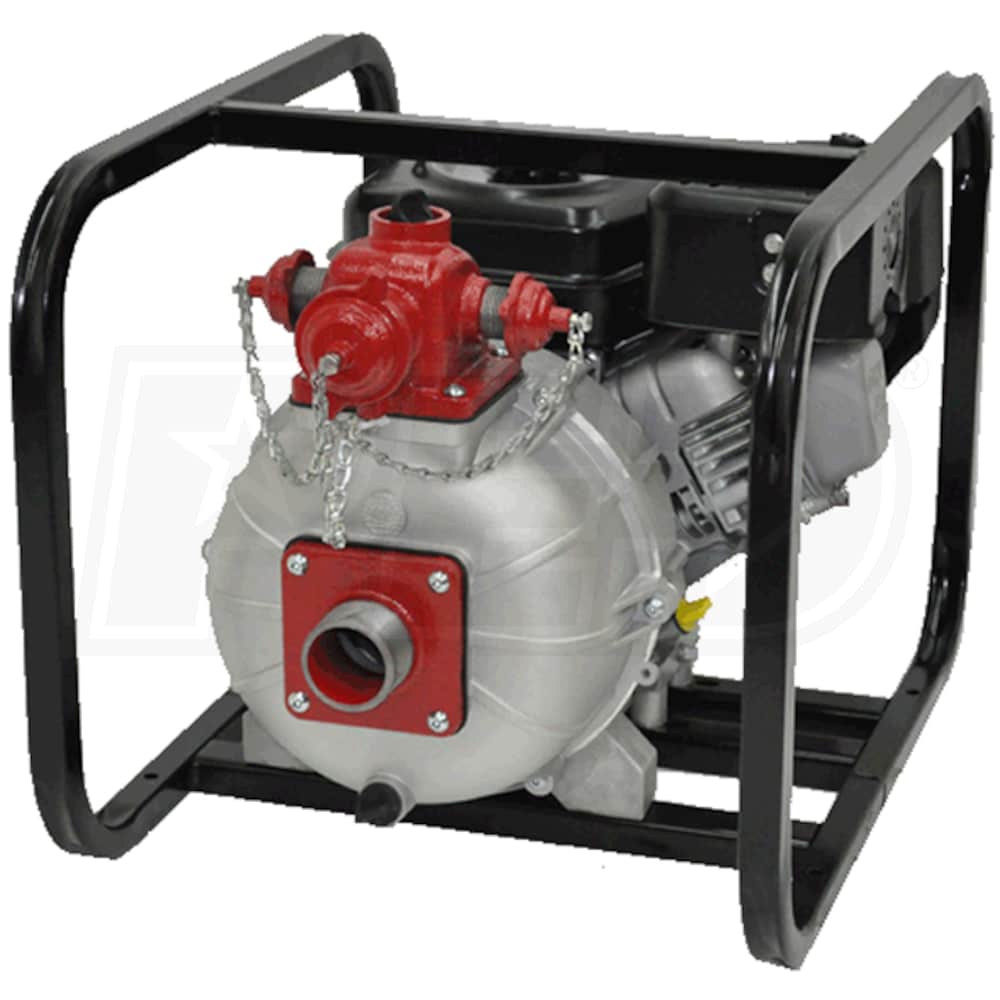

IPT Pumps 2MP13ZR - 140 GPM (2") Electric Start High Pressure 2-Stage Diesel Water Pump w/ HATZ 1B50 Engine

Model:

2MP13ZR

Write A Review
$6,933.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

IPT Pumps 2MP13ZR - 140 GPM (2
IPT Pumps 2MP13ZR - 140 GPM (2") Electric Start High Pressure 2-Stage Diesel Water Pump w/ HATZ 1B50 Engine
Model: 2MP13ZR
$6,933.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Dewatering

GPM

140 Gallons

Engine

Hatz

  • IPT 2-Inch Portable, Diesel-Powered Two-Stage High-Pressure Water Pump
  • Designed for sprinkler, irrigation and firefighting applications; Provides up to 139 PSI
  • Commercial Grade HATZ 1B50 517cc 4-Stroke Diesel Engine w/ Electric Start
  • Compact, lightweight design provides long service life & easy starting (Battery Not Included)
  • Fuel efficient, provides longer runtime compared to gasoline engines
  • Low Oil Alert
  • Provides added protection against engine damage
  • Large, Cast Aluminum Pump Casing w/ Cast Iron Diffusers
  • Increases pump capacity & helps resist abrasion for maximum pump life
  • High Efficiency, Two-Stage Precision Cast Aluminum Impellers
  • Allows for increase head-lift and pressure (PSI)
  • Built-in check valve helps provide quick pump priming
  • 2-Inch Heavy-Duty Male NPT Suction Port
  • Removable design allows ports to be replaced if damaged/stripped
  • Multi-Discharge Manifold
  • (1) 1.5" and (2) 1" Ports to suit your application
  • Viton Mechanical Seal w/ Silicon Carbide & Carbon Faces
  • Combined with EPDM/EPR O-rings for maximum longevity
  • Heavy Duty Steel Roll Frame w/ Vibration Dampening Feet
  • Protects the pump/engine during transportation & operation
  • Helps prevent "pump-walk" when pump is running
  • 1-Year Limited Warranty
  • ***Please Note - Requires 12V Battery at least 18AH (Not Included)***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

2MP13ZR
specs product image PID-76553
General Information
Product Category
Water Pump
Motor
Battery Included
No
Pump
Gallons Per Minute
140 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Aluminum
Handles Solids
No
Suction Head
20 Feet
Maximum PSI
139
Total Head Lift
310 Feet
Submersible
No
Engine
Engine Brand
Hatz
Starting System
12-Volt Button Start
Low Oil Shutdown
Yes
Engine Cycles
4-Cycle
Horsepower
13 HP
Fuel Tank Size
1.32 Gallons
Run Time
1.8 Hours
Overview
Product Category
Water Pump
Weight
270 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
31 Inches
Product Width
22.5 Inches
Product Height
23.6 Inches
UPC
726846540325
Accessories
Tool Kit
Yes
Strainer
No
