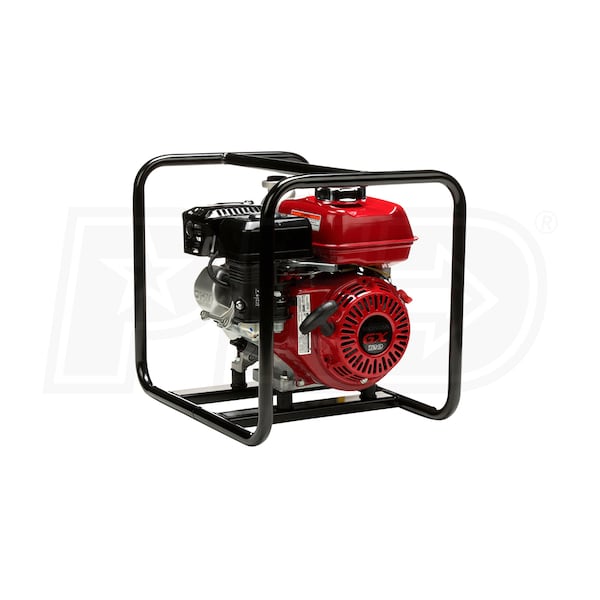

Honda WB20XT4A - 164 GPM (2") Water Pump

Model:

WB20XT4A

Recommended
Write A Review
$549.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Dec 18th
Shipping to60601

Honda WB20XT4A - 164 GPM (2
Honda WB20XT4A - 164 GPM (2") Water Pump
Model: WB20XT4A
$549.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Dewatering

GPM

164 Gallons

Engine

Honda GX

  • 2" General Purpose Water Pump
  • Centrifugal, self-priming design
  • Commercial Grade 118cc Honda OHV GX120 4-Cycle Engine
  • Reliable, technologically advanced & easy to start
  • Provides excellent torque & fuel efficiency
  • Protected By Honda Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Helps to prevent engine seizure due to a low oil condition
  • Improved 4-Vane Impeller/Volute Design
  • Provides enhanced durability against wear & tear
  • Silicone-Carbide Seals
  • Abrasion-resistant designed for extended wear
  • Isolation Mounted Engine & Pump
  • Rubber feet minimize vibration for quieter operation
  • Heavy Duty Full Frame Protection
  • Protects the pump and engine on all sides
  • EPA Approved & CARB Compliant
  • 3-Year Residential & Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

WB20XT4A
specs product image PID-6302
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
164 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Aluminum
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Silicon Carbide
Impeller Material
Cast Iron
Solids Handling Size
.3 inch
Suction Head
25 Feet
Maximum PSI
45
Total Head Lift
105 Feet
Submersible
No
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Continuous Operation
Yes
Engine Cycles
4-Cycle
Low Oil Shutdown
Yes
CC
118 cc
Fuel Tank Size
0.5 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Overview
Product Category
Water Pump
Weight
46 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
17.9 Inches
Product Width
14.4 Inches
Product Height
16.5 Inches
UPC
786102006637
Additional Model Numbers

WB20, WB20XT4A

Accessories
Tool Kit
No
Strainer
Yes
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
No
Wheel Kit
No

Reviews

(74)
Honda WB20XT4A Reviews & Ratings

Product Q&A

(7)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
How high will this pump lift water?
Dillan
from Iowa
February 20, 2024
What is the material for the seals on this pump?
Pedro
from Wisconsin
August 06, 2023
Can these pumps handle water with dirt and stuff getting sucked into it?
Brody
from Florida
November 27, 2019
What is the horse power rating on this pump?
Darcy S.
from Washington
March 22, 2017
How long will it run on a tank of gas?
Brent
from Alabama
November 08, 2016
Does this pump throttle down any?
Brad A
from Colorado
March 17, 2016
Hi Jim Is it okay to have the input 2 inch in and reduce the output to a 1 1/2? that would probably increase the PSI a little bit more too, right? or do I have to match both input and output with the same size hose? Thank you.
Marc D
from Minnesota
January 22, 2014
