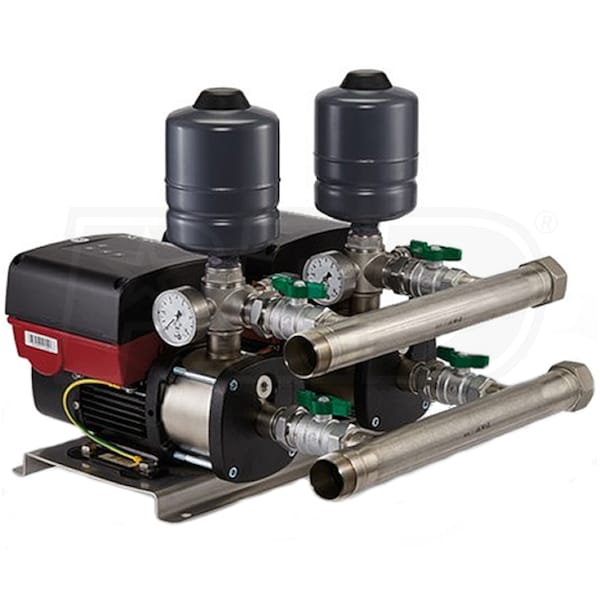

Grundfos CMBE TWIN 10-54 - 140 GPM 2 HP Booster Pump (58' Head) 200-240V

Model:

99503875

Write A Review
Grundfos CMBE TWIN 10-54 - 140 GPM 2 HP Booster Pump (58' Head) 200-240V
Grundfos CMBE TWIN 10-54 - 140 GPM 2 HP Booster Pump (58' Head) 200-240V
Model: 99503875
Call 1 (888) 455-4681 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/2 Inch

Style

GPM

140 Gallons

  • Grundfos CMBE TWIN 3-51 - 2 HP Booster Pump (200-240V)
  • Designed for water supply and boosting in domestic and light commercial applications
  • Great for irrigation and domestic fire suppression
  • Up to 140 GPM @ 58' Head*
  • Please see documents for sizing, PSI boost & application info
  • Cascade Control
  • Energy-efficient design adapts to demand
  • Automatically turns pump on/off and adjusts pump speed
  • Pump Alternation
  • Ensures that the operating hours are distributed evenly
  • 2 HP MGE Frequency-Controlled Permanent-Magnet Motor (200-240V)
  • Thermally protected, energy-efficient design, only draws 9.1-Amps (18.2A Total)
  • Integrated Speed Controller
  • Allows the pump to keep constant pressure in the pipe system
  • Pressure-sensor signals speed controller to adjust motor speed
  • Grundfos Eye Control Panel
  • Provides easy operation and ability to view system status, warnings, and alarms
  • Stainless Steel Pump Housing & Impeller
  • Helps minimize corrosion and extend pump life
  • Dry-Running Protection
  • Prevents damage to pump by a low-water/pressure event
  • Quiet Operation
  • Produces about 58 dB(A) during normal use and even lower at controlled speed
  • 1-1/2" Inch Inlet & Outlet (Pump) & 2" (Manifold)
  • Allows for easy connection to residential plumbing systems
  • All-In-One Solution
  • Includes pump, motor, tank, pressure/flow sensor, controller & check valve
  • Also includes base plate and pump manifold
  • 15-Foot Power Cord (No Plug)
  • Designed for fuse box connection
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Limited Warranty

Specifications

99503875
specs product image PID-101117
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
18.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Gallons Per Minute
140 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
155 Feet
Submersible
No
Series
CMBE
Engine
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
180 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
26.81 Inches
Product Width
21.1 Inches
Product Height
22 Inches
