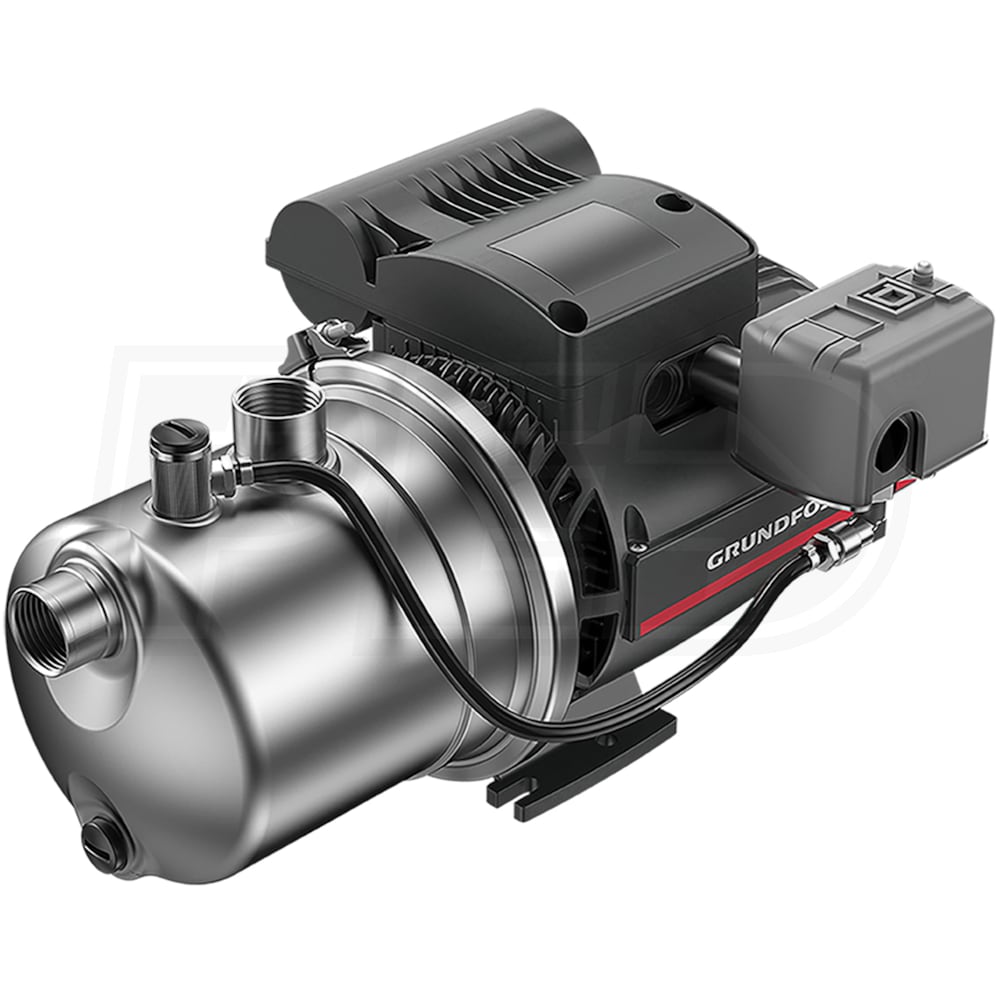

Grundfos JP 18-07-177 - 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump (80' Rated Head) 115/230V

Model:

99463940

Write A Review
Grundfos JP 18-07-177 - 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump (80' Rated Head) 115/230V
Grundfos JP 18-07-177 - 16 GPM 3/4 HP Stainless Steel Shallow Well Jet Pump (80' Rated Head) 115/230V
Model: 99463940
Call 1 (888) 455-4681 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 4-6 Weeks
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1 Inch

Style

Shallow Well

GPM

16 Gallons

  • Grundfos JP 18-07-177 - 3/4 HP Stainless Steel Shallow Well Jet Pump (115/230V)
  • Ideal for use in pumping at depths of 25' or less

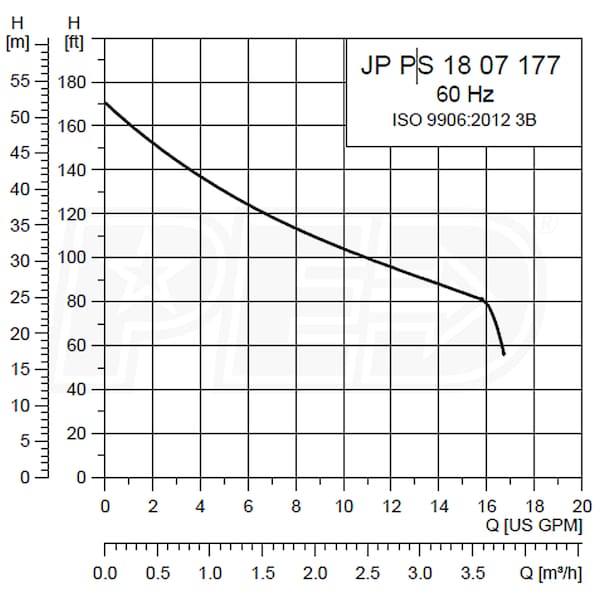

  • Rated 16 GPM @ 80' Head Lift; 177' Max Head Lift
  • 115/230-Volt 3/4 HP Grundfos TEFC Motor
  • Dual-voltage design allows for easy installation
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 30/50 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Stainless Steel Pump Housing
  • Provides increased corrosion-resistance compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • 2-Year Limited Warranty

Specifications

99463940
specs product image PID-109523
General Information
Product Category
Water Pump
Motor
Voltage
115-230 Volt
Thermal Protection
Yes
Pump
Gallons Per Minute
16 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
25 Feet
Maximum PSI
87
Total Head Lift
177 Feet
Submersible
No
Series
JP
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
27.4 Pounds
Consumer Warranty
2 Years
Product Length
16.9 Inches
Product Width
11.3 Inches
Product Height
8.74 Inches
Accessories
Pressure Switch
Yes
