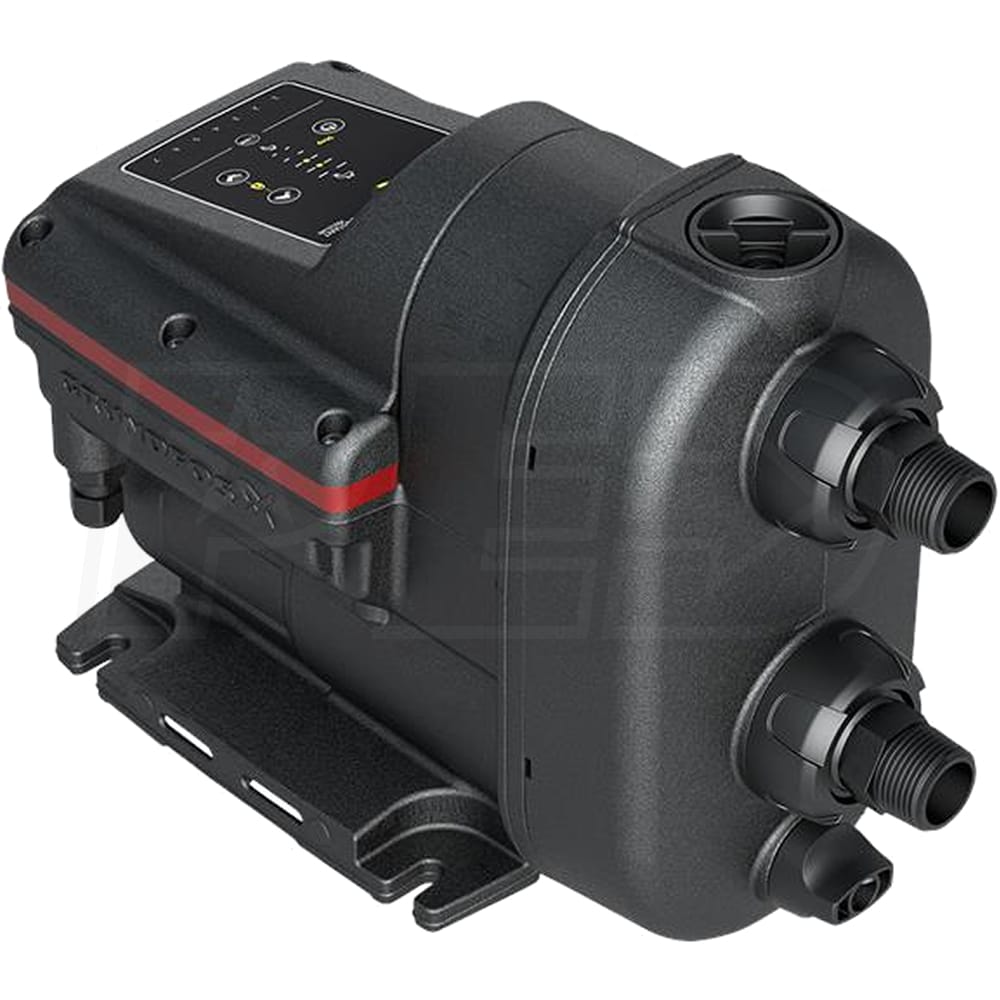

Grundfos SCALA2 3-45 - 3/4 HP Booster Pump 208-230V

Model:

98562817

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1 Inch

Style

GPM

13.2 Gallons

  • Grundfos SCALA2 3-45 - 3/4 HP Shallow Well Booster Jet Pump (208-230V)
  • Can be used for shallow well applications with pumping depths of 26' or less
  • Recommended For Pressure Boosting In Domestic Applications
  • Ideal for city mains and room, break or ground tanks
  • Suitable for home with up to 3-floors and eight tapping points
  • 3/4 HP, Water-Cooled, Permanent Magnet Motor (208-230V)
  • Energy-efficient design, only draws 2.8-Amps
  • Rated For Indoor & Outdoor Installations
  • Meets the needs of a wide variety of applications
  • Quiet Operation
  • Produces about 47 dB(A) during normal use and about 53 dB(A) at full load
  • Intelligent Pump Controller
  • Integrated speed-controlled drive maintains the perfect pressure
  • Provides the ability to adjust performance based on demand
  • User-Friendly Control Panel
  • Makes this pump system very easy to operate
  • Built-In Pressure Tank
  • Helps reduce wear on the pump by reducing starts/stops
  • Dry Running Protection w/ Automatic Reset
  • Integrated sensors help prevent motor burnout
  • Will try restarting pump every 5 mins 8 times, then try again after 24-hours
  • Simple Installation
  • Fully-integrated, compact design for quick and easy installation
  • 6.5-Foot Power Cored w/ 3-Prong Plug (NEMA 6-15)
  • Makes this pump easy to use for residential applications
  • 2-Year Limited Warranty

Specifications

98562817
specs product image PID-80335
General Information
Product Category
Water Pump
Motor
Voltage
208/230 Volt
Running Amps
2.8
Thermal Protection
Yes
Pump
Gallons Per Minute
13.2 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Pump Head Material
Thermoplastic
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Thermoplastic
Impeller Material
NORYL
Handles Solids
No
Suction Head
26 Feet
Maximum PSI
145
Total Head Lift
154 Feet
Submersible
No
Series
SCALA2
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
26.2 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
15.87 Inches
Product Width
7.6 Inches
Product Height
11.89 Inches
