Features
Inlet Size
1 Inch
Style
GPM
16.3 Gallons

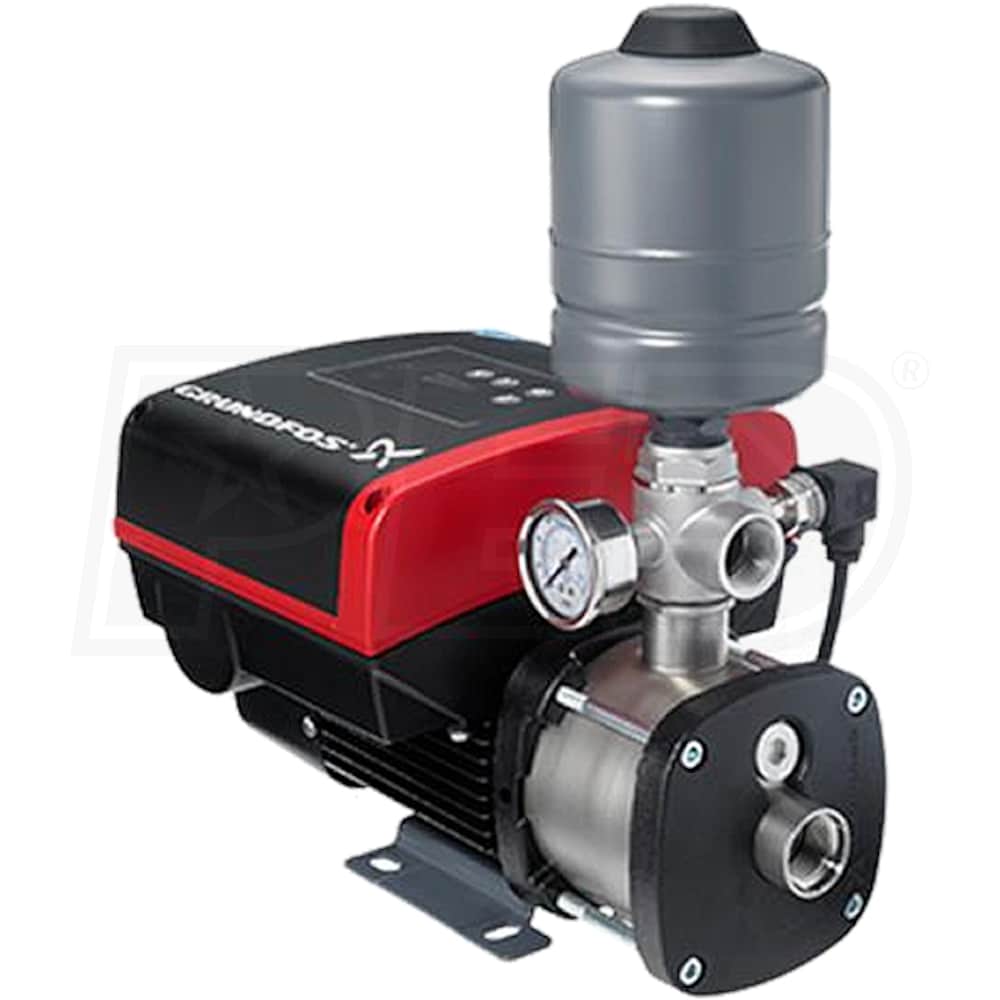

- Grundfos CMBE 3-93 - 2 HP Booster Pump (200-240V)
- Designed for water supply and boosting in domestic and light commercial applications
- Rated 16.3 GPM @ 196' Head* (Please See Documents For Sizing Information)
- Provides 20-80 PSI at 0-15 GPM; Provides 20-60 PSI at 0-25 GPM
- All-In-One Solution
- Includes pump, motor, tank, pressure/flow sensor, controller & check valve
- 2 HP MGE Frequency-Controlled Permanent-Magnet Motor (200-240V)
- Thermally protected and energy-efficient design, only draws 9.10 - 7.6-Amps (Max)
- Integrated Speed Controller
- Allows the pump to keep constant pressure in the pipe system
- Pressure-sensor signals speed controller to adjust motor speed
- Grundfos Eye Control Panel
- Provides easy operation and ability to view system status, warnings, and alarms
- Stainless Steel Pump Housing & Impeller
- Helps minimize corrosion and extend pump life
- Dry-Running Protection
- Prevents damage to pump by a low-water/pressure event
- Quiet Operation
- Produces about 55 dB(A) during normal use and even lower at controlled speed
- 1" Inch Inlet & Outlet
- Allows for easy connection to residential plumbing systems
- Grundfos GO Remote Compatible (Sold Separately)
- Lets you configure, control and alter pump settings with your Android/IOS device
- *Note - Power Cord Not Included
- 2-Year Limited Warranty
Specifications
98548114
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
7.6
Thermal Protection
Yes
Pump
Gallons Per Minute
16.3 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Impeller Material
Stainless Steel
Handles Solids
No
Suction Head
23 Feet
Maximum PSI
145
Total Head Lift
334 Feet
Submersible
No
Series
CMBE
Engine
Horsepower
2 HP
Overview
Product Category
Water Pump
Weight
61.3 Pounds
Consumer Warranty
2 Years
Product Length
15.9 Inches
Product Width
8.54 Inches
Product Height
17.91 Inches
