Grundfos Pumps 97855093
Grundfos Pumps 97855093
Hover to zoom
1 Of 5

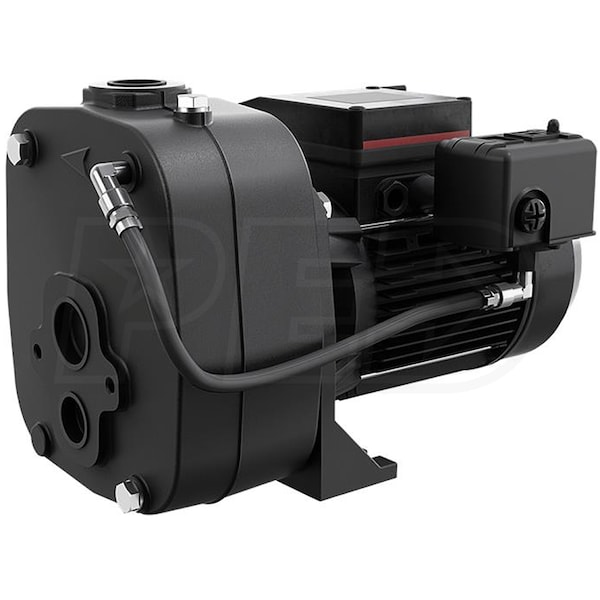

Grundfos JP20D-CI - 31 GPM 2 HP Cast Iron Convertible Well Jet Pump (112' Rated Head) 230V

Model:

97855093

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Share

Features

Inlet Size

1-1/4 Inch

Style

Convertible Jet

GPM

31 Gallons

  • Grundfos JP20D-CI - 31 GPM 2 HP Cast Iron Convertible Well Jet Pump (230V)
  • Ideal for use in pumping at depths of 25' or less
  • Ideal for use in deep wells (25' to 90')*
  • Rated 31 GPM @ 112' Head Lift; 203' Max Head Lift
  • 230-Volt 2 HP Grundfos TEFC Motor
  • Built-in thermal overload for motor protection
  • Includes Factory Pre-Wired 40/60 Pressure Switch
  • Allows for easy integration to your current plumbing system
  • Cast Iron Pump Housing
  • Provides longer life compared to thermoplastic pumps
  • Composite Impeller
  • Engineered for increased output, efficiency & quieter operation
  • Ceramic-Carbon Mechanical Seal
  • Provides extended seal life in clear water applications
  • Convenient Priming Plug
  • Self-priming design requires initial water-fill
  • Built-In Ejector Clean-Out Ports
  • Makes it easy to keep this nozzle unclogged and debris free
  • *Requires Deep Well Ejector Kit (Not Included)
  • 2-Year Limited Warranty

Specifications

97855093
specs product image PID-80360
Motor
Voltage
230 Volt
Running Amps
8.5
Thermal Protection
Yes
Pump
Gallons Per Minute
31 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Composite
Handles Solids
No
Suction Head
90 Feet
Maximum PSI
87
Total Head Lift
203.4 Feet
Engine
Horsepower
2 HP
Overview
Weight
75 Pounds
Consumer Warranty
2 Years
Product Length
18.19 Inches
Product Width
10.24 Inches
Product Height
10.04 Inches
UPC
5710625878582
Accessories
Pressure Switch
Yes
