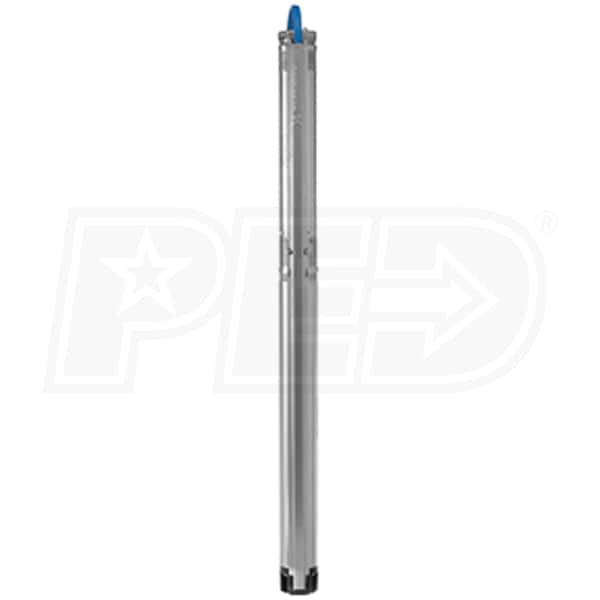

Grundfos 22SQE10-160 - 22 GPM 1 HP SQE-Series Deep Well Submersible Pump (160' Rated Head) (2W - 200-240V)

Model:

96160199

Write A Review
Grundfos 22SQE10-160 - 22 GPM 1 HP SQE-Series Deep Well Submersible Pump (160' Rated Head) (2W - 200-240V)
Grundfos 22SQE10-160 - 22 GPM 1 HP SQE-Series Deep Well Submersible Pump (160' Rated Head) (2W - 200-240V)
Model: 96160199
Call 1 (888) 455-4681 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 2-5 Business Days

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 8
$4.00
Backordered
$99.99
Factory-Direct
$315.00
$108.00
$519.00
$24.99
Only 3 In-Stock
$24.99
Only 2 In-Stock

Features

Inlet Size

N/A

Style

Deep Well

GPM

22 Gallons

  • Grundfos 22SQE10-160 - SQE Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 22 GPM @ 160' Head Lift
  • Please see documents for sizing / pump curve information
  • *Requires Grundfos CU 301 Constant Pressure Kit (Not Included) (Model 96438895)
  • Constantly adapts pump performance to meet the demand for water
  • Can provide constant water pressure from 40 -100 PSI
  • 1 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 200-240V)
  • Variable-speed, electronically controlled, communicates with CU 301 status box
  • Highly-efficient Permanent-Magnet (PM) design w/ Thermal overload protection
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbide/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection & Overtemperature Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • Grundfos GO Remote Compatible (Sold Separately)
  • Lets you configure, control and alter pump settings with your Android/IOS device
  • 2-Year Warranty

Specifications

96160199
specs product image PID-80394
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
11.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
233 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Series
SQE
Engine
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
13 Pounds
Consumer Warranty
2 Years
Product Length
33.6 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches

Reviews

(1)
Grundfos Pumps 96160199 Reviews & Ratings
It's Not Durable But Constant Water Pressure Is A Plus.
By John B.
Galien, Michigan
Review Posted 06/09/2020
10 years of service in iron rich water is an expected lifetime.
John B. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Features, Quiet, Light Weight, High Quality
Cons:
Durability
