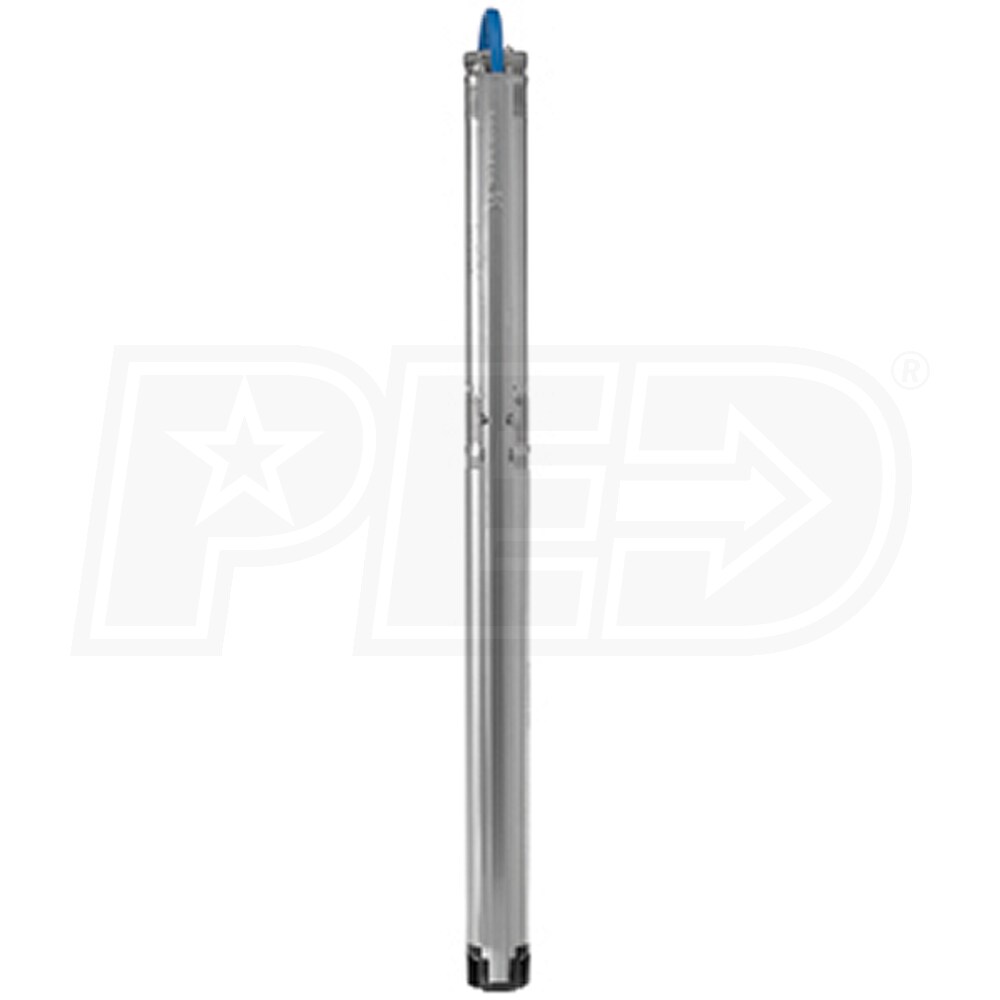

Grundfos 22SQ10-190 - 22 GPM 1 HP SQ-Series Deep Well Submersible Pump (190' Rated Head) (2W - 200-240V)

Model:

96160157

Write A Review
Grundfos 22SQ10-190 - 22 GPM 1 HP SQ-Series Deep Well Submersible Pump (190' Rated Head) (2W - 200-240V)
Grundfos 22SQ10-190 - 22 GPM 1 HP SQ-Series Deep Well Submersible Pump (190' Rated Head) (2W - 200-240V)
Model: 96160157
Call 1 (888) 455-4681 for pricing and order information.
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Factory-Direct
Ships in 2-5 Business Days

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 3
$99.99
Factory-Direct
$24.99
Only 3 In-Stock
$24.99
Only 2 In-Stock

Features

Inlet Size

N/A

Style

Deep Well

GPM

22 Gallons

  • Grundfos 22SQ10-190 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
  • Ideal for use with 3" I.D. or larger boreholes
  • Rated 22 GPM @ 190' Head Lift
  • Please see documents for sizing / pump curve information
  • 1 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use
  • Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear & provides ability to use smaller gauge wire
  • Dry-Running Protection
  • Helps extend pump life by preventing pump damage due to lack of water in well
  • Highly-Efficient Stainless Steel Pump
  • Polyamide reinforced hydraulic pump components for more efficient energy use
  • "Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
  • Allows for high wear resistance to sand which extends pump life
  • Top-Bearing Upthrust Protection
  • Provides added protection to motor/pump during start-up
  • Overvoltage & Undervoltage Protection
  • Prevents damage to the motor if voltage moves outside rated range
  • Overload Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Overtemperature Protection
  • Built-in temperature sensor ensures optimum operating conditions for the motor
  • 2-Year Warranty

Specifications

96160157
specs product image PID-80435
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
11.2
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
292 Feet
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Series
SQ
Engine
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
16 Pounds
Consumer Warranty
2 Years
Product Length
33.6 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
UPC
5700398694540

Reviews

(2)
Grundfos Pumps 96160157 Reviews & Ratings
Verified Buyer
Verified Buyer
Just What I Needed For My Irrigation System
By Gary W
Florida
Review Posted 02/24/2023
When my original irrigation pump failed, I went shopping for a replacement. The original pump was 4" diameter and fit tightly into a 4" well casing. So tight in fact that I was unable to extract it, but instead had to detach the drop pipe and drive it to bottom of the well. That experience is why I decided to go with a Grudfos 3" pump. It's lightweight, but sturdily built, and loaded with features. I especially like the soft start and motor protection features. I was able to install the pump unassisted in just a few hours time. Start up was uneventful and the pump is delivering just the right head and volume to meet the needs of my system.
Gary W Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, I'd Buy It Again
Cons:
None
Verified Buyer
Verified Buyer
Timely And Great Product Support
By Anthony V.
MARICOPA, California
Purchased 10/10/2019 |
Review Posted 11/05/2019
Grundfos has a good product and Water Pumps Direct has good support system, easy to work with and knowledgeable..
Anthony V. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
I'd Buy It Again
Cons:
Expensive
