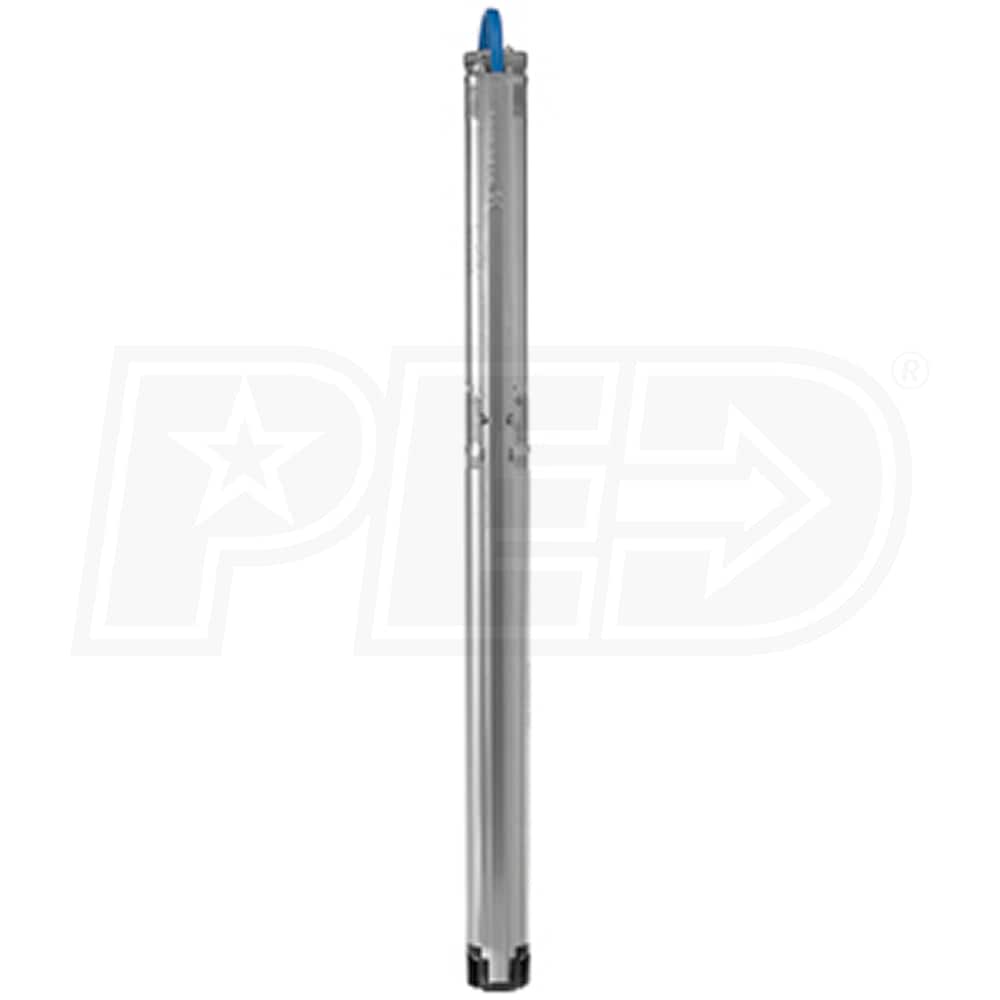

Grundfos 5SQ07-270 - 5 GPM 3/4 HP SQ-Series Deep Well Submersible Pump (270' Rated Head) (2W - 200-240V)
Model:
96160134
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
5 Gallons
- Grundfos 5SQ07-270 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
- Ideal for use with 3" I.D. or larger boreholes
- Rated 5 GPM @ 270' Head Lift
- Please see documents for sizing / pump curve information
- 3/4 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V)
- Highly-efficient design with thermal overload protection for added safety
- Fitted with a replaceable cable plug for ease of use
- Soft Start Design
- Allows for a low starting current with a smooth and steady acceleration
- Low current draw helps reduce wear & provides ability to use smaller gauge wire
- Dry-Running Protection
- Helps extend pump life by preventing pump damage due to lack of water in well
- Highly-Efficient Stainless Steel Pump
- Polyamide reinforced hydraulic pump components for more efficient energy use
- "Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
- Allows for high wear resistance to sand which extends pump life
- Top-Bearing Upthrust Protection
- Provides added protection to motor/pump during start-up
- Overvoltage & Undervoltage Protection
- Prevents damage to the motor if voltage moves outside rated range
- Overload Protection
- Reduces Motor RPM or turns off power to motor to prevent damage to motor
- Overtemperature Protection
- Built-in temperature sensor ensures optimum operating conditions for the motor
- 2-Year Warranty
Specifications
96160134
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
2-Wire
Thermal Protection
Yes
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Composite
Total Head Lift
452 Feet
Discharge Port Size
1 Inch
Submersible
Yes
Series
SQ
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
13 Pounds
Consumer Warranty
2 Years
Product Length
33.6 Inches
Product Width
2.9 Inches
Product Height
2.9 Inches
