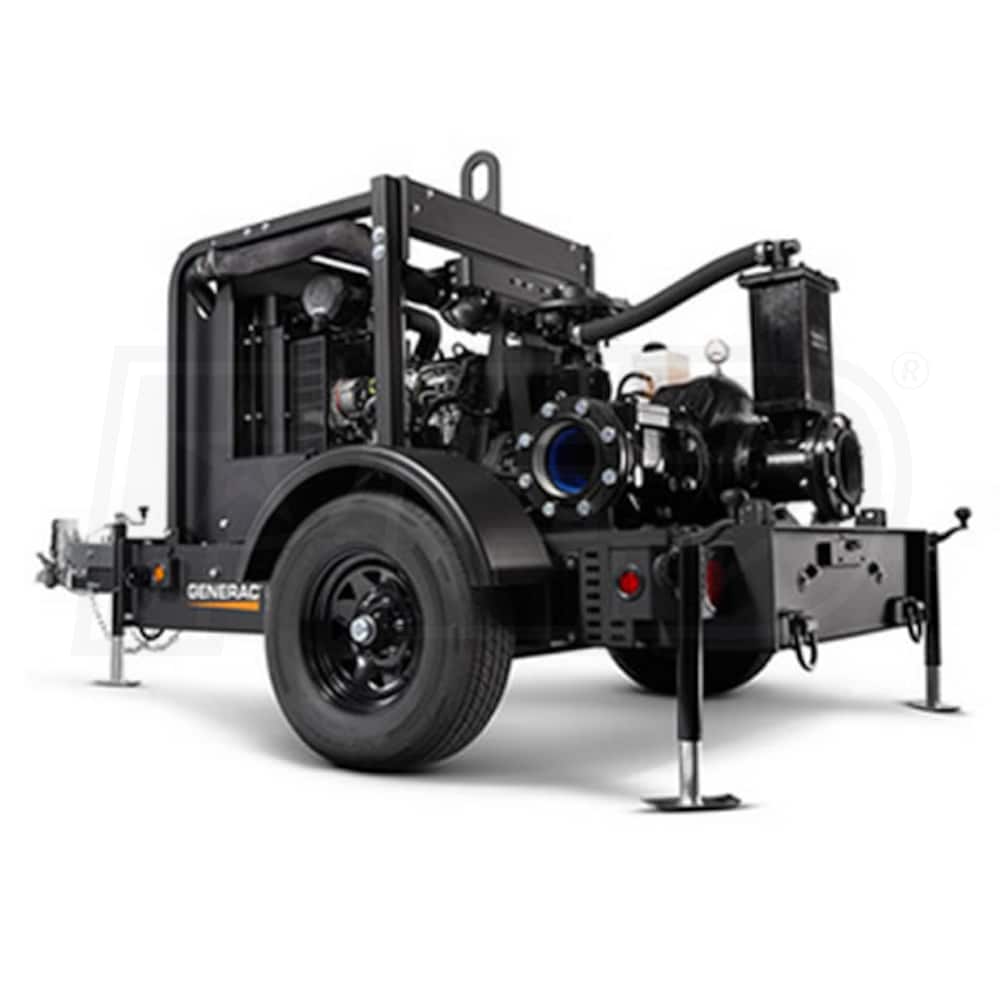

Generac MTP6DZD - 2750 GPM (6") Dry Prime Trailer Mounted Towable Diesel Diaphram Trash Pump
Model:
6965
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
6 Inch
Style
Trash
GPM
2750 Gallons
Engine
Deutz
- Generac MTP6DZD Trailer-Mounted 6" Diesel Trash Pump
- Features high performance priming system that handles solids up to 3"
- Deutz TD2.9 Water-Cooled, Turbo-Charged Diesel Engine
- Rated at 75 HP @ 2600 RPM
- EPA Final Tier 4 approved
- Steel, single wall 113 gallon fuel tank
- Built-in containment for all engine fluids
- Cornell 6NNT Diaphragm Dry Prime Centrifugal Pump
- Cast iron pump casing and impeller (ASTM A48, Class 30)
- Impeller design incorporated with deflector vanes and pumpout vanes
- Run-Dry System For Continuous Operations
- 2750 GPM pump output
- 150 feet total dynamic head
- Flip-Tongue Trailer W/ 2" Ball Hitch
- DOT approved LED tail, side, brake, and directional lights
- 6000 lb. torsion axle with surge brakes and 8-ply tubeless tires
- Durable Steel Roll Cage
- UV & fade resistant, high temperature cured, black polyester power paint
- Protects pump, radiator, and other components from damage
- Four-corner leveling for stability and complete fuel usage
- LOFA CP750 Digital Controller
- Large back-lit LCD display for easy service and maintenance
- Automatic start/stop control for use with two-switch inputs
- 2 Years / 2000 Hours Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
6965
Pump
Gallons Per Minute
2750 Gallons
Inlet Diameter
6 Inch
Outlet Diameter
6 Inch
Self Priming
Yes
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
30 Feet
Total Head Lift
150 Feet
Submersible
No
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Continuous Operation
Yes
Low Oil Shutdown
Yes
Horsepower
75 HP
Fuel Tank Size
113 Gallons
Run Time
31.39 Hours
Overview
Weight
4275 Pounds
Certification
Final Tier 4
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
