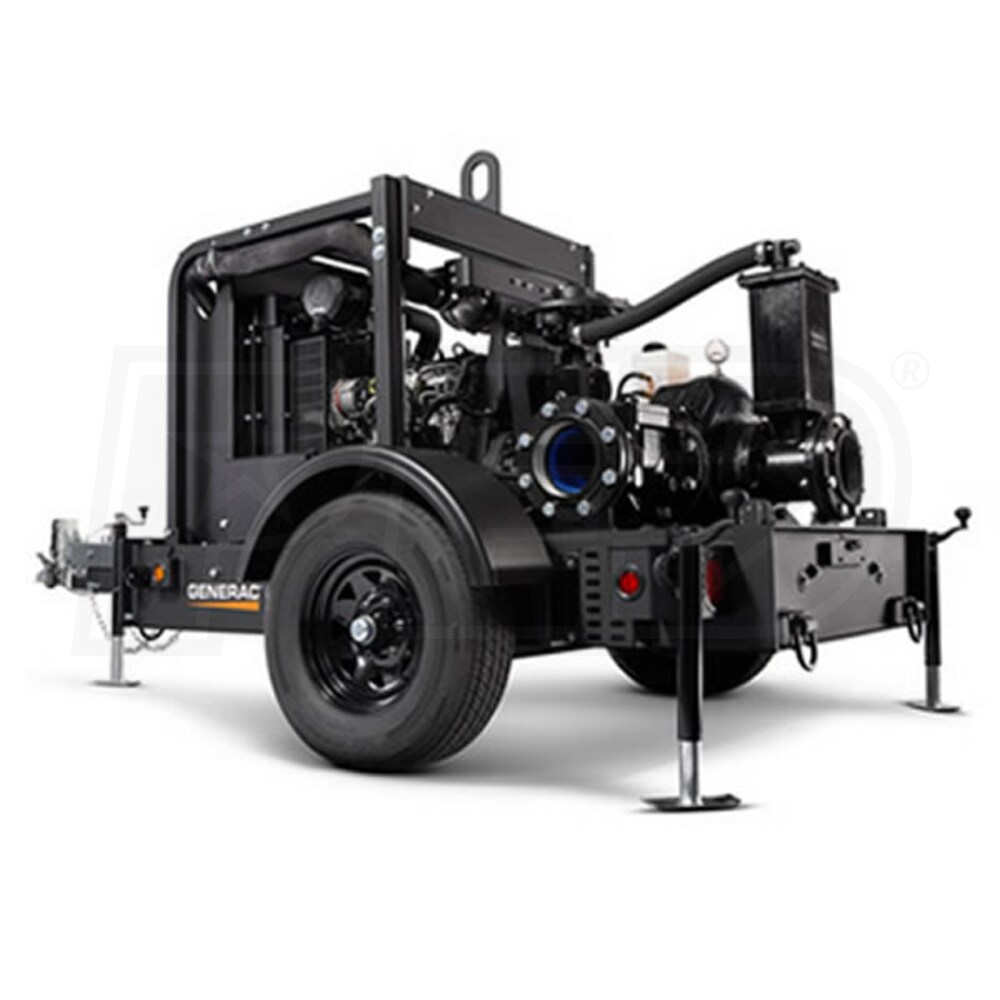

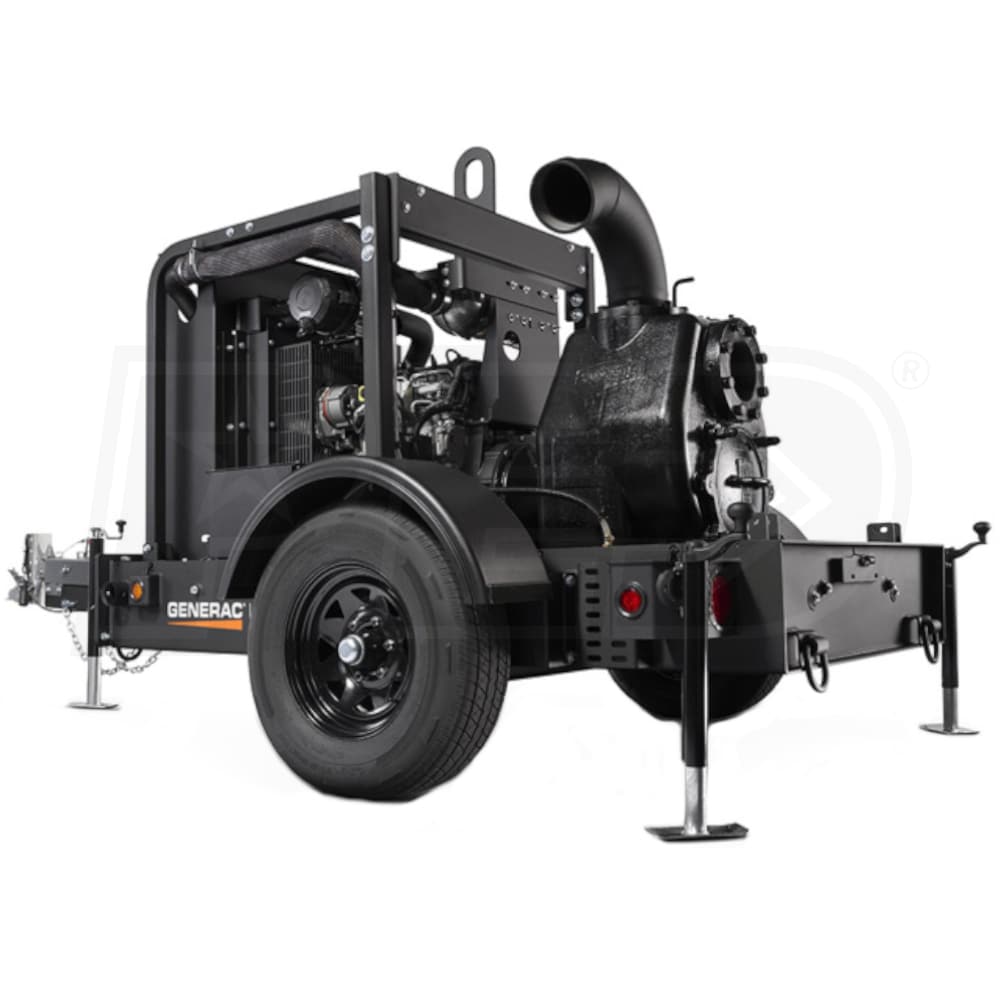

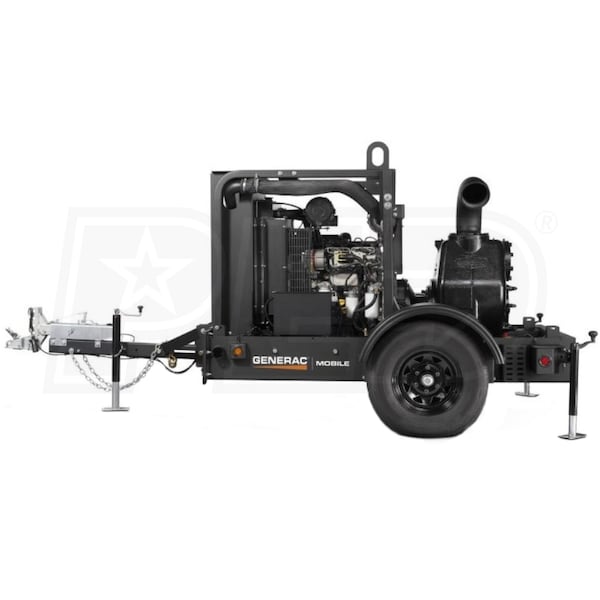

Generac MTP6SZ - 1680 GPM (6") Wet Prime Trailer Mounted Towable Diesel Trash Pump

Model:

6961

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Generac MTP6SZ - 1680 GPM (6
Generac MTP6SZ - 1680 GPM (6") Wet Prime Trailer Mounted Towable Diesel Trash Pump
Model: 6961
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

6 Inch

Style

Trash

GPM

1680 Gallons

Engine

Deutz

  • Generac MTP6SZ Trailer-Mounted 6" Diesel Trash Pump
  • Features high performance priming system that handles solids up to 3"
  • Deutz TD2.9 Water-Cooled, Turbo-Charged Diesel Engine
  • Rated at 75 HP @ 2600 RPM
  • EPA Final Tier 4 approved
  • Steel, single wall 113 gallon fuel tank
  • Built-in containment for all engine fluids
  • Cornell 6STX Self Wet Prime Centrifugal Pump
  • Cast iron pump casing and impeller (ASTM A48, Class 30)
  • Impeller design incorporated with deflector vanes and pumpout vanes
  • Run-Dry System For Continuous Operations
  • 1680 GPM pump output
  • 170 feet total dynamic head
  • Flip-Tongue Trailer W/ 2" Ball Hitch
  • DOT approved LED tail, side, brake, and directional lights
  • 6000 lb. torsion axle with surge brakes and 8-ply tubeless tires
  • Durable Steel Roll Cage
  • UV & fade resistant, high temperature cured, black polyester power paint
  • Protects pump, radiator, and other components from damage
  • Four-corner leveling for stability and complete fuel usage
  • LOFA CP750 Digital Controller
  • Large back-lit LCD display for easy service and maintenance
  • Automatic start/stop control for use with two-switch inputs
  • 2 Years / 2000 Hours Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

6961
specs product image PID-71675
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
1680 Gallons
Inlet Diameter
6 Inch
Outlet Diameter
6 Inch
Self Priming
No
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Mechanical Seal Material
Tungsten Carbide
Housing Material
Steel
Impeller Material
Cast Iron
Solids Handling Size
3 inch
Handles Solids
Yes
Suction Head
28 Feet
Total Head Lift
170 Feet
Submersible
No
Engine
Engine Brand
Deutz
Starting System
12-Volt Key Start
Continuous Operation
Yes
Low Oil Shutdown
Yes
Horsepower
75 HP
Fuel Tank Size
113 Gallons
Run Time
34.56 Hours
Overview
Product Category
Water Pump
Weight
3914 Pounds
Certification
Final Tier 8
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
150.12 Inches
Product Width
75 Inches
Product Height
73.88 Inches
Accessories
Lifting Hook
Yes
Wheel Kit
Yes
