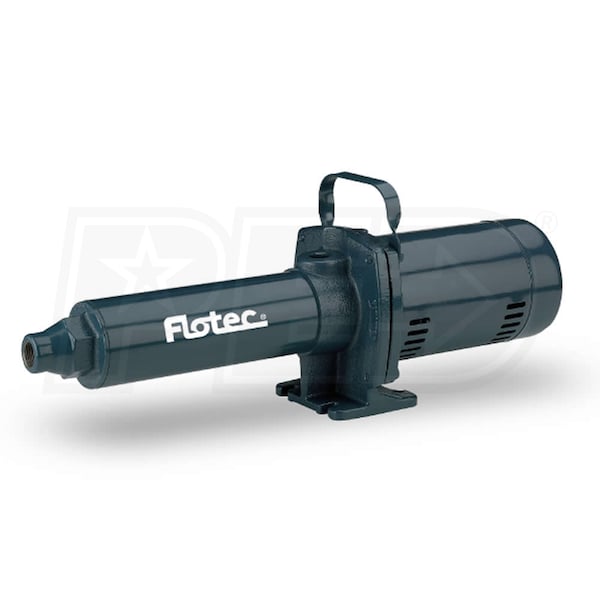

Flotec FP5722 - 3/4 HP Cast Iron Multi-Stage High Pressure Booster Pump (150 PSI)

Model:

FP5722-01

Write A Review
$515.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Nov 27th
Shipping to60601

Flotec FP5722 - 3/4 HP Cast Iron Multi-Stage High Pressure Booster Pump (150 PSI)
Flotec FP5722 - 3/4 HP Cast Iron Multi-Stage High Pressure Booster Pump (150 PSI)
Model: FP5722-01
$515.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3/4 Inch

Style

GPM

13 Gallons

  • Cast Iron, Multi-Stage High Pressure Booster Pump
  • Boost your existing pressure by 50 to 130 PSI
  • Residential, commercial or agricultural high pressure washing
  • Strong Pump Performance
  • Superior "dead-head" resistance
  • Increasing water pressure from city mains or private water systems
  • Stainless Steel Motor Shaft
  • Includes heavy-duty ball bearings and on-board thermal overload protection
  • Preset at 230V, also allows for 115V
  • Rated for continuous duty
  • Heavy-Duty Cast Iron Pump Adapter and Discharge
  • 3/4" FNPT suction and discharge fittings
  • Maximum capacity: 13 GPM
  • Maximum pressure: 150 PSI
  • Maximum inlet pressure: 80 PSI
  • Maximum total pressure: 315 PSI
  • 1 Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FP5722-01
specs product image PID-72332
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
7.4 @230v / 14.8 @115v
Thermal Protection
Yes
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
3/4 Inch
Outlet Diameter
3/4 Inch
Housing Material
Cast Iron
Maximum PSI
150
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
42.9 Pounds
Consumer Warranty
1 Year
UPC
022315165762
