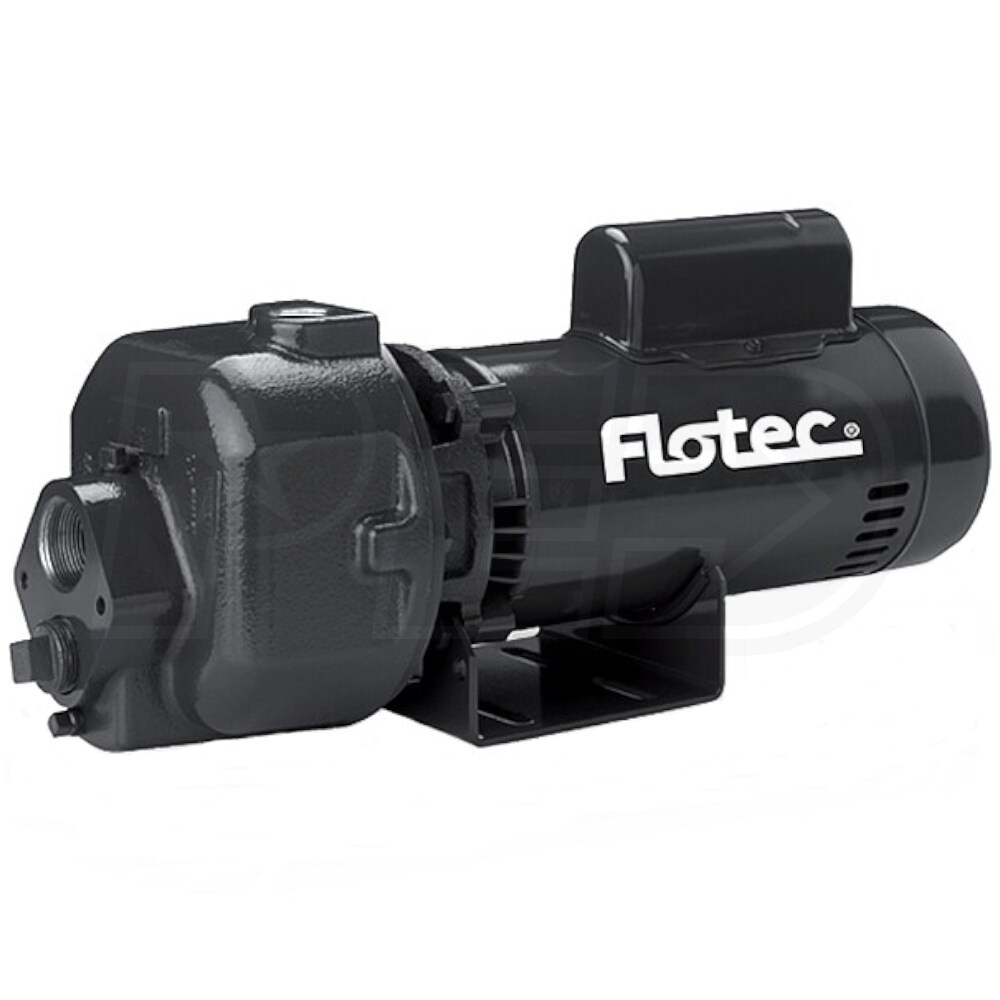

FloTec FP5230 - 45 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump

Model:

FP5230

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
FloTec FP5230 - 45 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump
FloTec FP5230 - 45 GPM 1 HP Self-Priming Cast Iron Sprinkler Pump
Model: FP5230
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 3
$67.99
Only 3 In-Stock
$64.00
In-Stock

Features

Inlet Size

1-1/4 Inch

Style

Sprinkler

GPM

45 Gallons

  • 1 HP Sprinkler Pump
  • Ideal for larger sprinkler zones or water transfer
  • Cast Iron Pump Housing
  • Rugged design for years of reliable operation
  • Dual-voltage Ready To Install 115/230V Motor
  • Motor comes wired 230V from factory
  • Can be easily changed to 115V during installation
  • Self-Priming Design
  • After initial fill, no additional priming required
  • Built-In Drain Port
  • Allows you to easily drain your pump for storage
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FP5230
specs product image PID-72339
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
8.8 @230v / 16.6 @115v
Pump
Gallons Per Minute
45 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
50
Submersible
No
Engine
Horsepower
1 HP
Overview
Product Category
Water Pump
Consumer Warranty
1 Year
UPC
022315176645

Reviews

(2)
Flotec FP5230 Reviews & Ratings
Verified Buyer
Verified Buyer
High Output And Quiet
By Stephen N.
Virginia Beach, Virginia
Purchased 07/16/2020 |
Review Posted 09/10/2020
I searched for a pump to replace my failing 3/4 HP lawn sprinkler pump. I also wanted to increase the output of my sprinklers. This pump certainly did the job. In fact, I started with eight zones with each having 4 or 5 heads per zone. After installing this pump, I was able to increase the nozzle size on most heads, and marry two sprinkler zones together. So now I am running just 4 zones and getting greater water output.

Installation was easy but I did switch my electrical supply from 115V to 230V. The pump is also much quieter than its predecessor. The pump looks very durable and has a dual impeller cast iron housing. So far, so good.
Stephen N. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Quiet, Id Buy It Again
Verified Buyer
Verified Buyer
Great Pump For The Price
By Derris L.
Buchanan Dam, Texas
Purchased 02/05/2018 |
Review Posted 03/05/2018
Works like a charm. I never bled the air out of the pump, it started pumping almost immediately.
Derris L. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Durable, Quiet, High Quality
