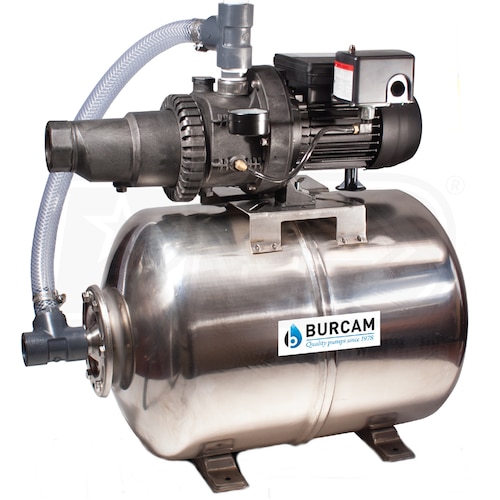

Burcam Pumps 3/4 HP Noryl Convertible Jet Pump w/ 16 Gal. Stainless Steel Tank

Model:

506728PSS

Write A Review
$705.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Mar 14th
Shipping to60601

Burcam Pumps 3/4 HP Noryl Convertible Jet Pump w/ 16 Gal. Stainless Steel Tank
Burcam Pumps 3/4 HP Noryl Convertible Jet Pump w/ 16 Gal. Stainless Steel Tank
Model: 506728PSS
$705.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 5
$99.99
Factory-Direct
$24.99
Only 3 In-Stock
$24.99
Only 2 In-Stock

Features

Inlet Size

1-1/4 Inch

Style

Convertible Jet

GPM

13 Gallons

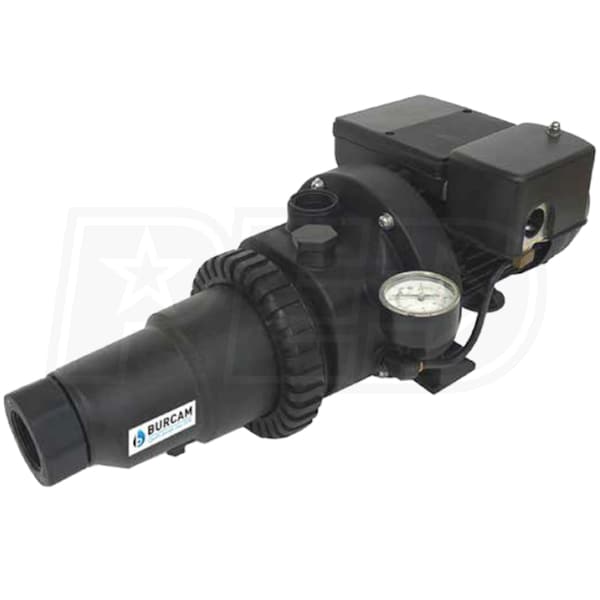

  • 3/4 HP Convertible Jet Pump
  • Ideal for use in shallow wells (less than 25')
  • Ideal for use in deep wells (up to 70')
  • Noryl Thermoplastic Pump Body & Injector
  • Corrosion-resistant design helps reduce rust contamination
  • 115/230-Volt TEFC Motor
  • Totally enclosed, bearing to bearing
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Continuous Duty Capacitor
  • Eliminates starting wear
  • Radial Type Impeller
  • Provides quiet operation
  • Stainless Steel Shaft & Rotary Mechanical Seal
  • High quality components for years of reliable operation
  • 16 Gallon Stainless Steel Air Pressure Tank
  • No water-air contact, provides rust-free operation
  • No water-tank contact, eliminates seeping
  • No water-logging, eliminates the need for air volume controls
  • Includes 30/50 Pressure Switch
  • Allows the pump to maintain ideal pressure
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Isoprene which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

506728PSS
specs product image PID-106679
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
13 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Housing Drain
Yes
Housing Material
Thermoplastic
Impeller Material
NORYL
Suction Head
70 Feet
Maximum PSI
90
Submersible
No
Engine
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
45 Pounds
Consumer Warranty
2 Years
UPC
772910559281

Reviews

(2)
Burcam 506728PSS Reviews & Ratings
Verified Buyer
Verified Buyer
Second Pump Like This I Have Had
By Randy P
Ohio
Purchased 04/26/2023 |
Review Posted 05/18/2023
Second pump I have had like this, worked well for 30 days then it leaked on the inlet connection behind the inlet nut before the union. This is the second one that has done this, the first worked for a couple years before it leaked.
Randy P Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
4/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Easy To Use
Cons:
Unreliable
Not The Goulds I Wanted, But Not Terrible
By Stephen D
California
Review Posted 05/24/2022
Despite the best efforts, and I really mean this, of Debbie and Bobbie at Water Pumps Direct, I wasn't able to buy the Goulds combination Tank/pump unit I wanted. Blame the supply chain for that. The Burcam unit is very light and was easy to place and move around to spot my supply and discharge lines. Priming was not so easy, and let me promise you that I have a lot of experience with pumps. The first problem was a leak from the tank drain plug. I tried to tighten it and that worked, sort of. If I tightened just a bit too much, it began leaking again. I pulled it out and was amazed that it was plastic...no wonder! I applied teflon tape and reinserted it, tightening very carefully. A brass plug would be ideal and I may eventually go to that.

My next try at priming showed a leak from the plastic coupling collar. Easy, I thought, and grabbed the included spanner. This "tool" is a joke and is best placed in Barbie's Fun Tool Box. So I grabbed a 1" chisel and hammer to convince the collar to tighten. This worked.This solved the priming problem. Next on the agenda was adjusting the shut-off/shut-on pressure. It was supposedly factory preset to 30-50. but was more like 25-40.

So, this whole process was a drag and would never happen with a Goulds pump. On the positive side, this pump appears to be a real 3/4 hp. Pressure is great. Let's just hope the bugs have all been worked out. Another plus is that this pump is just about 1/2 the price of a Goulds unit and their phone support staff is good.












only option was to buy this Burcam
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
4/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Price, Light Weight
Cons:
Low Quality
