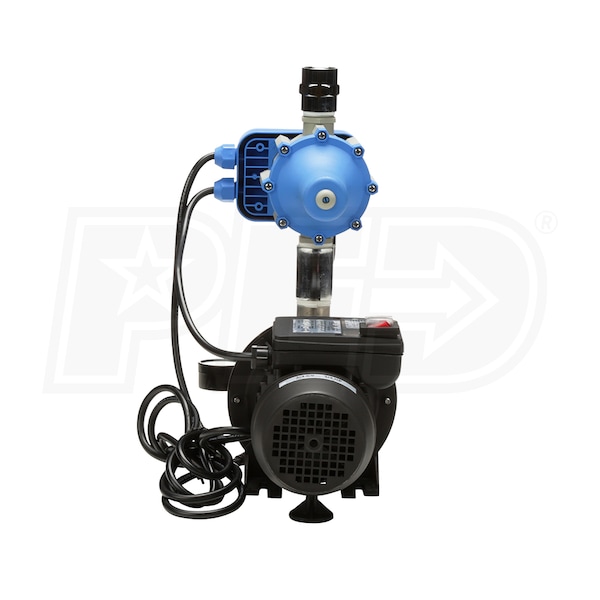

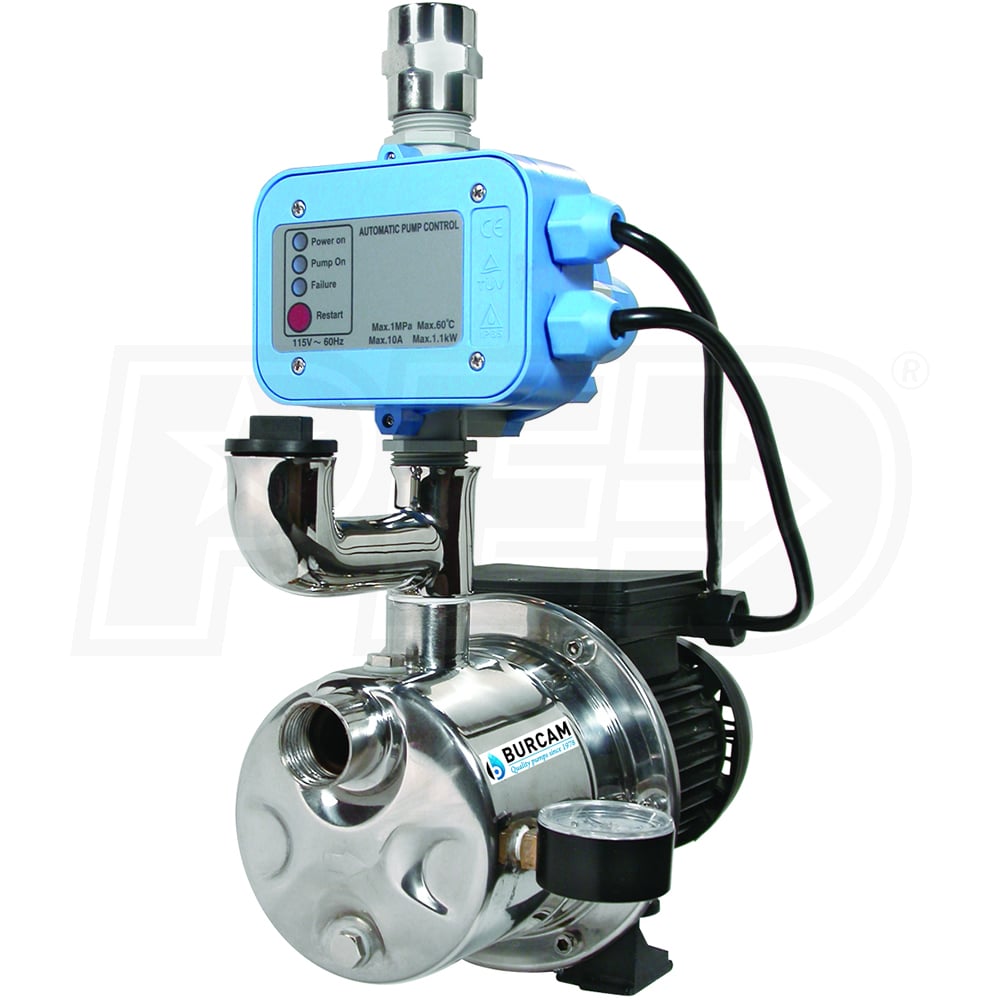

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Dual App. Pump (Booster & Tankless Jet Pump)

Name: Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Dual App. Pump (Booster & Tankless Jet Pump)
Brand: Burcam
SKU: 7177
Price: 391.00 USD
Availability: InStock

Model:

506532SS

Recommended

Write A Review

$391.00

Free Shipping

Factory-Direct

Ships in 2-5 Business Days

Burcam Pumps 16 GPM 3/4 HP Stainless Steel Shallow Well Dual App. Pump (Booster & Tankless Jet Pump)

Model: 506532SS

$391.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Inlet Size

1 Inch

Style

GPM

16.4 Gallons

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

3/4 HP Shallow Well - Dual App. Booster & Tank-less Jet Pump
Ideal for use in pumping depths of 25' or less
115-Volt TEFC Motor
Totally enclosed, bearing to bearing
10' Power Cord
Thermal & Overload Protection
Provides added safety to protect your investment
Stainless Steel Pump Body, Shaft & Rotary Mechanical Seal
High quality components for years of reliable operation
Noryl Impeller
Provides quiet performance
Fluomac Pump Control System
No need for a conventional type tank
Maintains A Constant Pressure
No need for a pressure switch
Fully Electronic
Regulates & controls the delivery of water, maintains pressure
Added Features
Protects the pump from running dry & requires no maintenance
Please Note - Not Recommended For Sand Point Applications

California residents see

Warning: This product can expose you to chemicals including Isoprene which is known to the State of California to cause Cancer

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

For more information go to: www.p65Warnings.ca.gov

Specifications

506532SS

General Information

Product Category

Water Pump

Motor

Voltage

120 Volt

Running Amps

7.5

Starting Amps

Pump

Gallons Per Minute

16.4 Gallons

Inlet Diameter

1 Inch

Outlet Diameter

1 Inch

Self Priming

Yes

Pump Head Material

Steel

Housing Material

Stainless Steel

Impeller Material

Plastic

Suction Head

25 Feet

Maximum PSI

Submersible

Engine

Continuous Operation

Yes

Oil-Cooled

Shaft Seal

Stainless Steel

Horsepower

0.75 HP

Overview

Product Category

Water Pump

Weight

24 Pounds

Consumer Warranty

2 Years

Product Length

17 Inches

Product Width

10 Inches

Product Height

19 Inches

UPC

772910065324

Reviews

(130)

Burcam 506532SS Reviews & Ratings

Product Q&A

(18)

Product Questions Answered by Jim, the Water Pump Expert

What size is the drain plug?

from Minnesota

June 06, 2017

Does this pump need to be primed originally, or will it lose its prime without a check valve or foot valve?

Duane W.

from Utah

March 22, 2017

Video Response Available

hi jim just a quick follow up on my question.I see in your other answers this pump needs 20 to 25 psi coming in to this pump with my tank under ground I dont see how I could have enough pressure for this pump.Could you please explain this better

Shane B

from Nevada

July 06, 2016

Answer

If you are using this Bur-Cam model 506532SS Dual App Pump as a booster pump, you need to have between 20 & 25 PSI on the suction side of the pump. IF you are installing it as a shallow well pump, it will handle up to a maximum 25 foot suction lift. This does NOT have to be a well, it could be a lake, pond or cistern. Two applications, two different installation methods.
If you have any other questions, please let me know.

Was this answer helpful?

Yes

was wondering if this can be hooked to city water to increase gpm and pressure, I am on top of a hill in an old small town and was going to try to find something I didn't need a separate tank for.

Terry

from Texas

July 03, 2016

Answer

This would be a possibility, HOWEVER, you do need to insure that incoming pressure to the pump is between 20 & 25 PSI. No more and no less. You also need to insure that you are not trying to boost pressure to a large 2-3 bath home with high water needs. This pump does well in smaller 1 to 2 bath homes with low to average water needs.
The PUMP MANUAL should provide all the information you need.
If you have any other questions, please let me know.

Was this answer helpful?

Yes

Hi Jim, Looking at the 506532SS pump. What I am doing is taking the RO water from a 100 Gal holding tank and pressurizing the 32 gallon take to the house. Pressure to be 30-50 PSI. There will be floats to protect the booster pump and the entire system. Is there a less expensive option for my needs? The feed will be at the bottom of the tank, and the pressure tank is within 4 feet. Thanks Jim

Jim Healey

from New York

July 02, 2016

Answer

Thank you for your interest in Water Pumps Direct. Before I can answer your question, I would need to know the following:

Total head (suction & discharge lift)

Total pumping distance from the water source to the pump and from the pump to the furthest sprinkler head

Piping diameter on your suction and discharge (if already laid)

Total GPM & PSI requirements

Once you can provide this information, I'll be happy to assist you further.

Was this answer helpful?

Yes

Hi Jim I bought the burcam model 506532SS from your company on 02 months ago. I just install direct on my city water pipe and use the pump water for all my house. but the motor always running. Do they support to automatic stop if I don't use the water. Please give me some advice. Thank you

KIET BUI

from Pennsylvania

July 02, 2016

we are moving to an off grid home with a 2000 gal water tank buried.we need water for a kitchen sink and one full bathroom with one more in future.wondering if this pump will work or if there is more I need also thinking I need some kind of filtration.thanks for any suggestions

Shane B

from Nevada

June 29, 2016

Hi Jim, I am following up to my original question to answer your question... The pump will be placed in line with the storage tank on slab. Almost all the faucets/appliances are on the slab level of the home however there is one bathroom on the second floor so I would estimate our vertical lift on the second floor to be about 18' given that we have 9' ceilings. That said, all remaining faucets and appliances will have a much lower vertical lift. The piping will be 1/2 inch copper. Original answer: Thank you for your interest in Water Pumps Direct. Before I can really make an educated suggestion on what pump you would need for your application, I would need to know the following specifications and requirements: What is your vertical lift? What size piping do you have in place? Original Question: I have a well system on my property but it is over 1000' away so I am running a line from the well to a 1500 gallon storage tank. I plan to use this pump on the outlet side of the storage tank to boost pressure and supply house. So the water will be coming in with limited pressure and no head. How many faucets/appliances will this product be able to handle being used simultaneously? I saw in one of your other responses you said 2 faucets/appliances and that surprised me because I assumed it would be more.

Tim

from Alabama

June 29, 2016

Hey Jim, Is it okay to run PEX water lines on the discharge side of the pump?? Thanks,

Andy B

from Virginia

December 15, 2014

Hi Jim if the kids leave a tap or shower dripping is this pump going to cycle on and off continuously. I beleive your info says no, but I don't understand why it wouldn't

David T

from Michigan

December 12, 2014

Answer

The Bur-Cam Dual App Pump model 506532SS works without a pressure tank and thus requires a fully pressurized system to operate properly. When the Floumac controller senses an open faucet or fixture the pump turns on. When that faucet or fixture is closed, the pump shuts off. Hence, if the pump senses ANY loss in pressure, the pump will continue to operate. It will not cycle, it will just run continuously until that faucet or fixture is closed completely. The same this will happen if there is any leak within your plumbing.
If you have additional questions, please let me know.

Was this answer helpful?

Yes

I have a modified sine wave inverter delivering electricity to the pump room. Will this affect the operation of pump?

Gayle M

from Colorado

June 15, 2014

Answer

Per Bur-Cam:
The electricity supplied to the pump need to match the specifications on the pump label.
For example, our motors are under 110V-120V AC 60Hz or under 220-240V AC 60Hz.
If the inverter provides twice the amps required to the pump to operate (the Amp rating is on the pump label) it will work.
The amps capacity needs to be twice the running Amps because at start, the motor pulls normally around twice the Amps for 1 to 2 seconds.
So, if the running Amp rating is 6.5A, you need to cover 13A so a 15A breaker is required or the inverter output needs to be at least 15A.

Was this answer helpful?

Yes

hi I have 2 bathrooms and we cant run the 2 things at once like shower and dishwasher or shower and washing machine without losing pressure we have a 12 hp shallow well pump and 20 pressure tank will this well pump work better

Steven

from Pennsylvania

February 05, 2014

Answer

Thank you for your interest in Water Pumps Direct.
You might want to check your tank to see if it is holding pressure as this could one of be the causes of your problem. Another cause could be due to a build up of sediment or mineral deposits in your plumbing. This is pretty common in older homes and would require professional assistance. If you tank tests ok and your plumbing is in good condition, you might consider something like the Red Lion 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump, model RJS-50 or if you prefer to do away with your tank, the Bur-Cam 506532SS should also do the trick for you.

Was this answer helpful?

Yes

Hi Jim want to replace old house pressure system of tank & pump.. city water no well. will this product work. or what pump/tank system would u recommend.. think city pressure is about 40psi want to boost to 60-65psi.

William

from Florida

January 12, 2014

I have 3 500gal water tanks supplying 4 houses, and can't get enough pressure. What do I need to boost pressure? By the way, I am actually in the Dominican Republic, not TN, but I had to put a state in.

Bob Spencer

from Tennessee

January 11, 2014
