Burcam 506221P
Burcam 506221P
Hover to zoom
1 Of 5

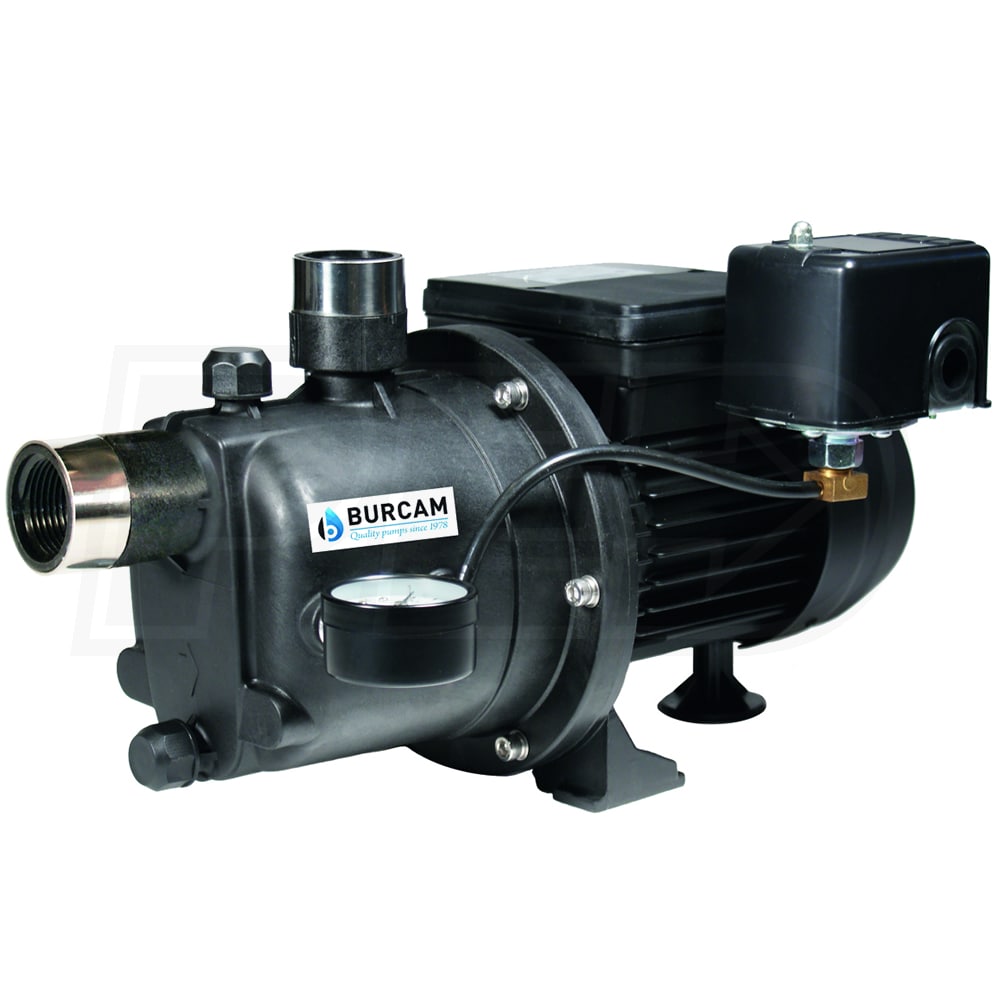

Burcam Pumps 14 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump (115/230V)

Model:

506221P

Write A Review
$228.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Burcam Pumps 14 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump (115/230V)
Burcam Pumps 14 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump (115/230V)
Model: 506221P
$228.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

18 Gallons

  • 3/4 HP Shallow Well Jet Pump System
  • Ideal for use in pumping depths of 25' or less
  • 115/230V TEFC Motor
  • Totally enclosed, bearing to bearing
  • Preset at the factory to 115V
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Noryl (Thermoplastic) Housing
  • Eliminates rust contamination for better water quality
  • Best life expectancy
  • 30/50 Preset Pressure Switch
  • Assembled and installed at the factory
  • Provides ease in operation
  • 1-1/4" Suction, 1" Discharge
  • 2 Year Warranty

Specifications

506221P
specs product image PID-94945
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
4.2
Thermal Protection
Yes
Starting Amps
8.4
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Thermoplastic
Suction Head
25 Feet
Maximum PSI
65
GPH @ 0 feet
850
GPH @ 5 feet
850
GPH @ 10 feet
760
GPH @ 15 feet
670
GPH @ 20 feet
480
Check Valve Included
No
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
0.75 HP
Overview
Product Category
Water Pump
Weight
29 Pounds
Consumer Warranty
2 Years
Product Length
17 Inches
Product Width
10 Inches
Product Height
10 Inches
UPC
772910552213
