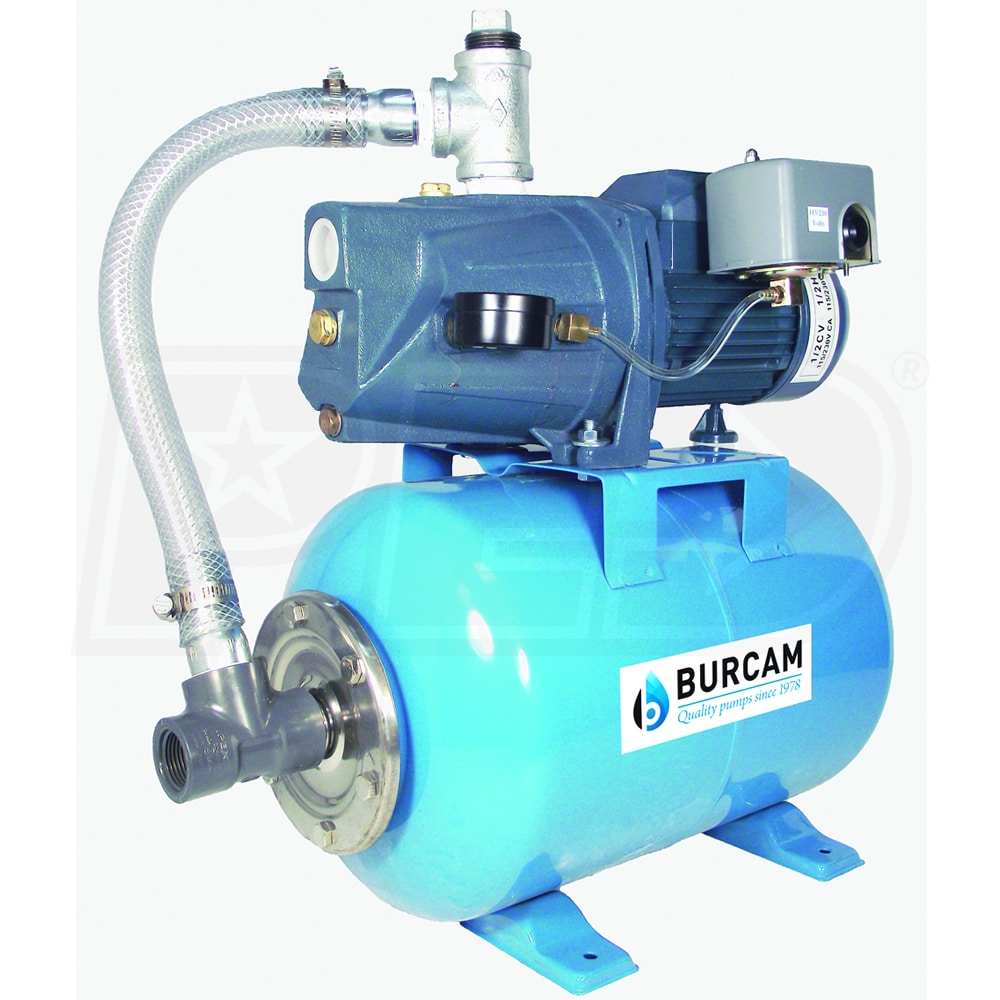

Burcam Pumps 506127S - 13 GPM 1/2 HP Cast Iron Shallow Well Jet Pump w/ 6.6 Gal. Steel Tank

Model:

506127S

Write A Review
$286.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Burcam Pumps 506127S - 13 GPM 1/2 HP Cast Iron Shallow Well Jet Pump w/ 6.6 Gal. Steel Tank
Burcam Pumps 506127S - 13 GPM 1/2 HP Cast Iron Shallow Well Jet Pump w/ 6.6 Gal. Steel Tank
Model: 506127S
$286.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 3

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

13.6 Gallons

  • 1/2 HP Shallow Well Jet Pump System
  • Ideal for use in pumping depths of 25' or less
  • 115/230V TEFC Motor
  • Fan cooled, totally enclosed, bearing to bearing
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Heavy-Duty Cast Iron Construction
  • Built for years of service and reliability
  • Continuous Duty Capacitor
  • Eliminates starting wear
  • 6.6 Gallon Air Pressure Tank
  • No water-air contact, provides rust-free operation
  • No water-tank contact, eliminates seeping
  • No water-logging, eliminates the need for air volume controls
  • Noryl Impeller
  • Provides high performance & long life
  • Added Features Stainless shaft & built-in ejector
  • 2 year Warranty
  • *Please Note - Model # & Appearance May Vary From Picture Shown* 503127S or 506127S
  • *Performance & Warranty Remains The Same*
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

506127S
specs product image PID-94936
Motor
Voltage
120/240 Volt
Running Amps
4.3
Pump
Gallons Per Minute
13.6 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
65
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Shaft Seal
Stainless Steel
Horsepower
0.5 HP
Overview
Weight
38 Pounds
Consumer Warranty
2 Years
Product Length
18 Inches
Product Width
11 Inches
Product Height
21.5 Inches
