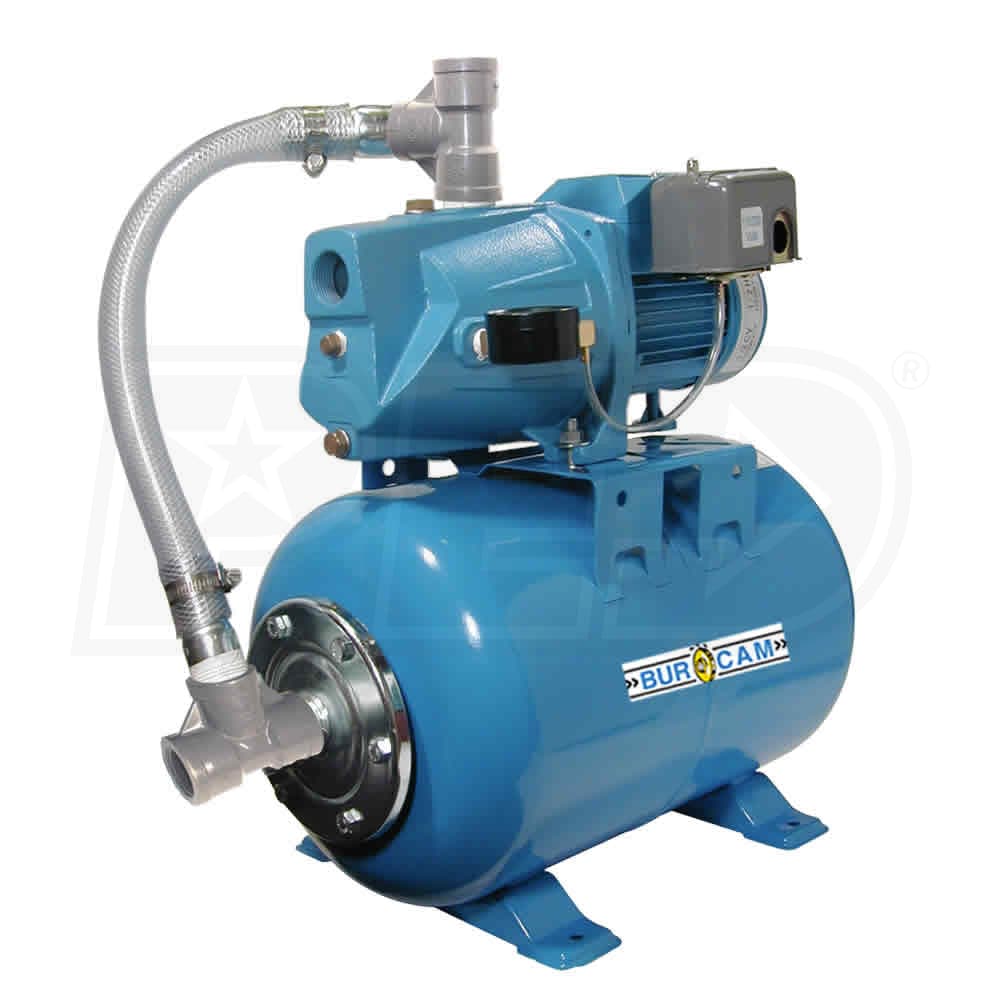

Bur-Cam 506227P - 18 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump w/ 7 Gallon Tank (115/230V)

Model:

506127P

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Bur-Cam 506227P - 18 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump w/ 7 Gallon Tank (115/230V)
Bur-Cam 506227P - 18 GPM 3/4 HP Thermoplastic Shallow Well Jet Pump w/ 7 Gallon Tank (115/230V)
Model: 506127P
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Similar Products

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 1
$24.99
Only 3 In-Stock

Features

Inlet Size

1-1/4 Inch

Style

Shallow Well

GPM

18 Gallons

  • 3/4 HP Shallow Well Jet Pump System
  • Ideal for use in pumping depths of 25' or less
  • 115/230V TEFC Motor
  • Totally enclosed, bearing to bearing
  • Preset at the factory to 115V
  • Thermal & Overload Protection
  • Provides added safety to protect your investment
  • Noryl (Thermoplastic) Housing
  • Eliminates rust contamination for better water quality
  • Best life expectancy
  • 7 Gallon Epoxy-Coated Steel Pressure Tank
  • Butyl (rubber) technology to reduce bladder wear
  • 30/50 Preset Pressure Switch
  • Assembled and installed at the factory
  • Provides ease in operation
  • 1-1/4" Suction, 1" Discharge
  • 2 Year Warranty

Specifications

506127P
specs product image PID-72498
Motor
Voltage
120/240 Volt
Running Amps
4.2
Thermal Protection
Yes
Starting Amps
8.4
Pump
Gallons Per Minute
18 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Housing Material
Thermoplastic
Suction Head
25 Feet
Maximum PSI
65
GPH @ 0 feet
1080
GPH @ 5 feet
780
GPH @ 10 feet
720
GPH @ 15 feet
600
GPH @ 20 feet
420
Check Valve Included
No
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Shaft Seal
Stainless Steel
Horsepower
1/2 HP
Overview
Weight
41 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
21.75 Inches
Product Height
24 Inches
Accessories
Pressure Switch
Yes
