Features
Inlet Size
1 Inch
Style
Shallow Well
GPM
14.1 Gallons
- 1/2 HP Shallow Well
- Ideal for use in pumping depths of 25' or less
- 115/230V TEFC Motor
- Totally enclosed, bearing to bearing
- Thermal & Overload Protection
- Provides added safety to protect your investment
- Heavy-Duty Cast Iron Construction
- Built for years of service and reliability
- Continuous Duty Capacitor
- Eliminates starting wear
- Noryl Impeller
- Provides high performance & long life
- Self-Priming
- Due to design and large pump body
- Added Features
- Stainless shaft & built-in ejector
- To be used with a pre-charged air pressure tank
- 2-Year Warranty
- *Please Note - Model # & Appearance May Vary From Picture Shown*
- *Performance & Warranty Remains The Same*
Specifications
506121S
Motor
Voltage
120/240 Volt
Running Amps
4
Pump
Gallons Per Minute
14.1 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Housing Material
Cast Iron
Impeller Material
Plastic
Maximum PSI
65
Total Head Lift
25 Feet
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Stainless Steel
Horsepower
0.5 HP
Overview
Weight
27 Pounds
Consumer Warranty
2 Years
Product Length
17 Inches
Product Width
9.75 Inches
Product Height
8.75 Inches
Reviews
Burcam 506121S Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
How-To Articles
How to Pick the Perfect Well Pump
Using centrifugal force, a well pump shoots water from its underground reservoi...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

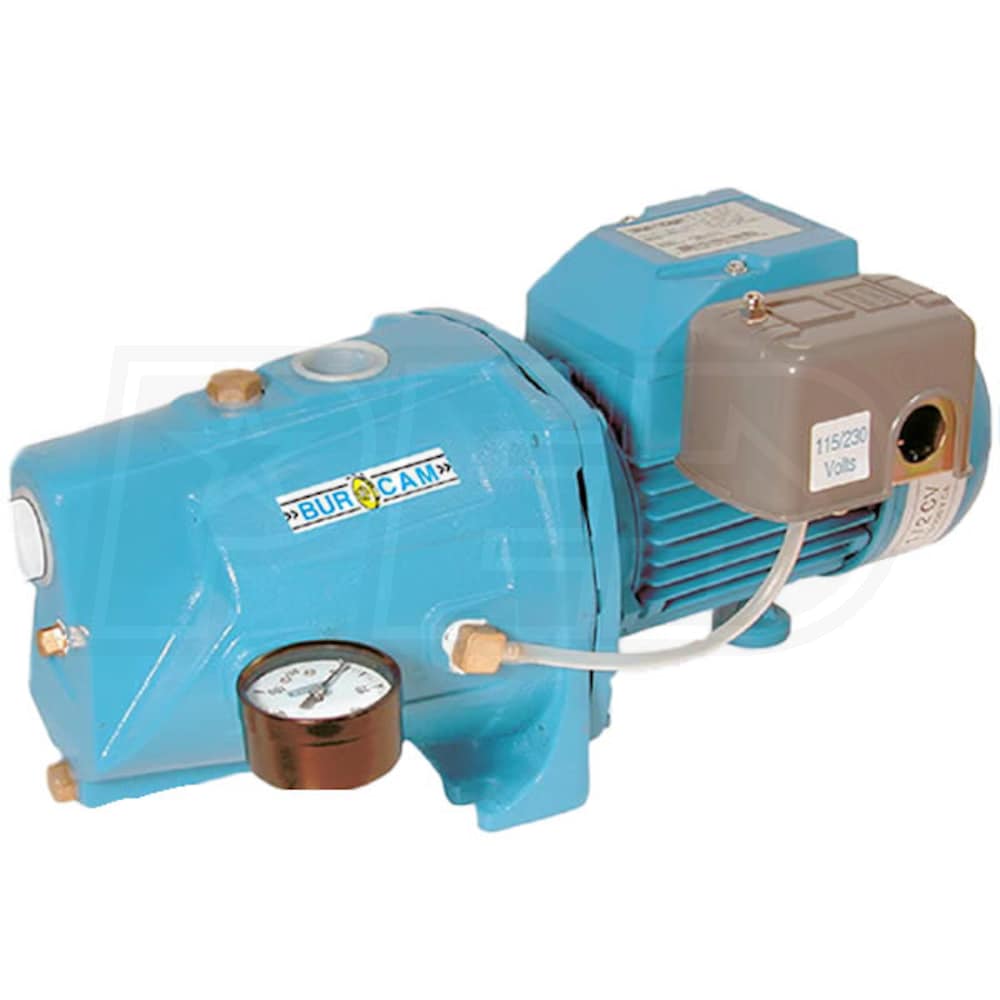

Burcam Pumps 14 GPM 1/2HP Cast Iron Shallow Well Jet Pump
