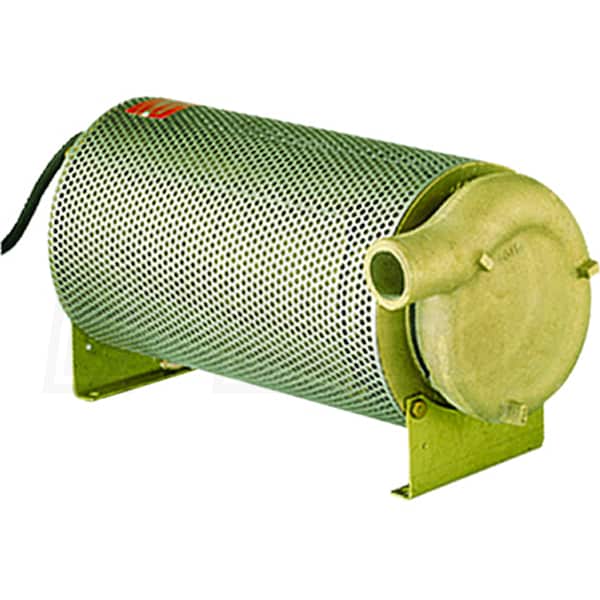

Barnes SFU71 - 3/4 HP Submersible Brass Fountain Pump

Model:

087783

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes SFU71 - 3/4 HP Submersible Brass Fountain Pump
Barnes SFU71 - 3/4 HP Submersible Brass Fountain Pump
Model: 087783
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Water Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Fountain

GPM

94 Gallons

  • Barnes SFU71 - SFU Series 3/4 HP Submersible Fountain Pump
  • Designed for use in decorative water displays
  • Brass & Stainless Steel Construction
  • Helps extend pump life in aquatic applications
  • 304 Stainless Steel Intake Screen
  • Wrap-around design, with 5/32" diameter mesh helps prevent clogging
  • 3/4 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 12 FLA
  • Six-Vane Brass Impeller
  • Open design, allows for passage of small solids
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Motor Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated Ball (Motor End) & Sleeve (Pump End) Bearings
  • Provides increased life-span and quieter operation
  • 12-Foot 16/3 SOW Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

087783
specs product image PID-80848
Base
Base Material
Brass
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Starting Amps
28
Pump
Gallons Per Minute
94 Gallons
Outlet Diameter
1-3/4 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
50 Feet
Submersible
Yes
Engine
Horsepower
0.75 HP
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches
